Latest Electric Welded Mesh Wire Welding Machine and Equipment Price

Product Description

Product Description

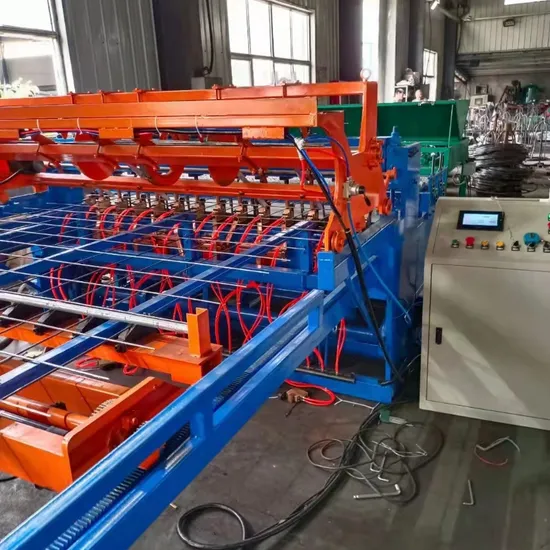

Welded wire mesh machine, also called, welded roll mesh machine, electric welded mesh machine. Our roll welding wire mesh machine is featured by wire coil feeding and invert speed control.It is used to make wall mesh,construction mesh,animal cage, mining etc.
Electric control cabinet
Panasonic (Japan) PLC
Weinview (Taiwan) touch screen
ABB (Switzerland Sweden) switch
Delta (Taiwan) power supply
Panasonic (Japan) servo driver
Phoenix (Germany) wire terminal
Specially designed relay board
Automatic wire feeding way
The longitude wires will be through first straight setting roller device. The wire storage device can feed the longitude wires step by step, then through second straight setting roller device.
Automatic welding system
1. Upper copper arm connect two welding electrodes, much easier for electric conduction. (European design)
2. The upper arm and lower electrode base are water cooling type. Welding electrode: 25*25*30mm.
3. The electro-magnetism valves are all SMC brand, originally imported from Japan, good quality.
4. Copper plate connect lower electrode base and welding transformers, much easier for electric conduction.
5. One welding electrode is controlled by one SMC brand air cylinders, big power, high welding speed.
6. Cast water-cooling welding transformers, high efficiency. Welding degree is adjusted by PLC.
7. Separate control technology, one electric board and one SCR controls one welding transformer.
8. The circuit board is designed by our engineers and university professors, not be easily broken.
9. The SCR is Infineon (Germany) brand, very good quality.
Automatic mesh pulling system
1.Panasonic (Japan) servo motor&planetary reducer for pulling mesh, more precise.
2.The cross wire space can be set and adjusted on the touch screen.
3.Cable drag chain is European design, very good quality, not easily hung down.
4.Pulling rack is J&T brand, made in Taiwan, the pulling distance is more accurate, less noise.
Automatic mesh pulling system
High precision type. The cutting length can be set by PLC.
After mesh cutting, the max.6m mesh can fall down and move out automatically.

Product Parameters

Item	SE-2000A	SE-2500A	SE-3000A	SE-3300A
Number of Electrodes	20	24	30	32
Max.Mesh Width	2500mm	2500mm	3000mm	3300mm
Wire Diameter	5.0-12.0mm	5.0-12.0mm	5.0-12.0mm	5.0-12.0mm
Mesh Length	3-12m	3-12m	3-12m	3-12m
Cross Wire Space	100-300mm	100-300mm	100-300mm	100-300mm
Line Wire Space	100-300mm	100-300mm	100-300mm	100-300mm
Electric Capacity	200KVA*10	200KVA*12	200KVA*15	200KVA*16
Welding Speed	40-60t/min	40-60t/min	40-60t/min	40-60t/min
Control System	PLC control and Touch Screen

Finished Product

Features at a Glance
The advantage of this welded mesh making machine is that the machine does not need to stop while roll mesh system unloading the wire mesh. This method greatly improves the production efficiency of the wire mesh and increases the competitiveness of the products.
After sale service:
1.Engineer can install, test and adjust the machine for you
2.24 hours online after-sale service
3.We will train workers for you
Packaging & Shipping
1.1*40GP container for loading one set machine with roll forming machine.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope)
3. Spare parts and operating tools are loading in tooling box.
Company Profile
We, Tangshan Shuoen is a professional cold roll forming machine manufacturer, We have been focusing on this field for 10 years. Our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoiler, light keel roll forming machine, purlin machine, leveling and slitting machine, and other related construction equipment.Shuoen has employed a team of engineers for more than 10 years. At the same time, our machines use branded electrical components, raw materials from branded steel factories, strict process control, two-year warranty, installation and training services.Our customers are all over the world, such as 65 countries in Mexico, Chile, Bolivia, Italy, Australia, Kuwait, Saudi Arabia, South Korea, South Africa, Kenya and other different regions. We have extensive experience in the needs of different countries, such as profile, thickness range, use, installation, etc.Thank you for your trust and choice, we will provide you with the best service support and help you achieve greater success.Looking forward to more cooperation with new and old friends from all over the world.
Certifications

FAQ
Q1. How long is your warranty period?
Within 12 months from the date of self loading, we guarantee that no malfunctions will occur due to manufacturing defects.
Q2. How can I trust the machine to paste and test before shipment?
We have recorded a test video for your reference. Alternatively we welcome you to visit our factory and personally test the machines.
Q3: If you can customized the roofing sheet forming machine for i need?
Yes, Just share your design to us is ok, we will give you one fully quotations.
Q4: What's your after-sales service ?
We provide 24-hour online service for our customers.
And we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers' workshop if needed.

Q5: What's your delivery time ?
Normally we can finish production and testing within 45-70 days after receiving deposit. Some machines in stock, can be delivered at any time.
