Product Description

Product Description

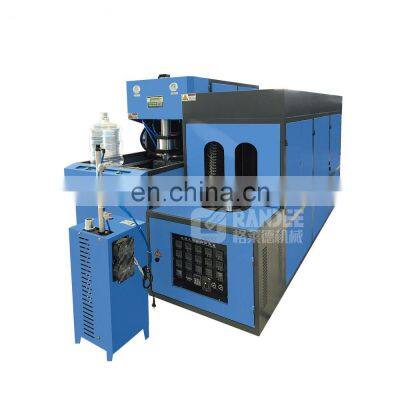

20liter water bottle blowing machine / blower
Product Description
Application:
Suitable for producing PET plastic containers and bottles from 15-25L. It is widely used to produce the carbonated drink bottle, drinking water bottle, oil bottle, cosmetics bottle, wide-mouth bottle etc.
Features:
1. Adopting double crank to adjust mould ,heavy locking mould, stable and fast , adopting infrared oven to heat the perform ,the perform rotated and heated equally.
2. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4. The machine can be operated in the step-by-step mode and the semi-auto mode.
5. The machine is small with low investment, safety lock system for the blow molding system, ensure safety operating.
6. Volume exchange will be through the PLC control panel by setting the film sending time and filling time only.
7. One person can operate semi-auto perform loading and product bottle discharging and combining the fully auto blower process.
8. Space saving and low cost for equipment investment.
9. Sound distinguish and lubrication device is equipped on the machine for easy maintenance.
Machine show
Heater
One cavity mould
Our engineer will make 2D drawing for free
Main technical parameter:

Type	Item	Unit	GD-B20L 5 gallon semi automatic blow molding machine
Container	Product material	/	PET
	Volume	L	5L-25L
	Theoretic output	BPH	90-180BPH for 5 gallon bottle
	Preform length	mm	15-460
	Preform inner diameter	mm	5-200
	Max mould plate dimension	mm	420(L)*500(W)
	Max mould thickness	mm	40
Molding	Clamping force	KN	330
	Mould opening stroke	mm	38
Machine size and weight	Main machine weight	T	1
	Main machine dimension	cm	218*77*196
	Heater dimension	cm	237*68*165
	Heater weight	T	380
	Power	kw	15

Component list:

No	Name	Model	Brand	Country of origin
1	High pressure valve	321H-35-2995	Paker	America
2	Low pressure valve	7321BAN00-DC24V	Paker	America
3	Check valve	9C800S	Paker	America
4	Action solenoid valve		AirTAC	Taiwan
5	Host power	NES-200-24V	MEANWELL	Taiwan
6	PLC	FX1N-60MR	Mitsubish	Japan
7	Touch screen	TK6070IH	WEINVIEW	Taiwan
8	Standard cylinder	SC100X135-S	AirTAC	Taiwan
9	Thin cylinder	SDAS25X43-B	AirTAC	Taiwan
10	Pneumatic processing elements	GR20008-F1	AirTAC	Taiwan
11	Swing cylinders	DSR-25-180-P	FESTO	Germany
12	Quick exhaust valve	SEU-3/8	FESTO	Germany
13	Proximity sensor		Autonics	Korea
14	Photoelectric switch		OPTEX	Japan
15	Module		SEMIKRON	Germany
16	Ruby lamp	CR30-15DN	HAICHUANG	China

Related product

	Automatic 5 gallon / 20L PET bottle water filling line: This series production line can be cleaned automatically, sterilization, filling, sealing, counting and products discharging. It has complete functions, novel desgin, high degree of automation, which is the new 5 gallon barrel production line of intergrating mechanism, electricity, pneumatic technology together.
RO System: Besides Water filling machine, this RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department. This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr. We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
	Automatic shrink labeling machine for 5 gallon neck label: Capacity: 50-100bottles/min can be chosen Label material: PVC PET OPS, etc Bottle material: PET PE PP Glass Bottle Diameter: 28 ~ 120mm Bottle Height: 15~320mm Bottle shape: round, square, ellipse, rectangular Label length: 30~250mm(max) Label thickness: 0.03~0.13mm
