Amada-Punch a/B/C/D/E Tool CNC Grinding Machine with Auto and Manual Grinder Control

Product Description

AMADA-Punch A/B/C/D/E Tool CNC Grinding Machine with Auto and Manual Grinder Control
Product Description

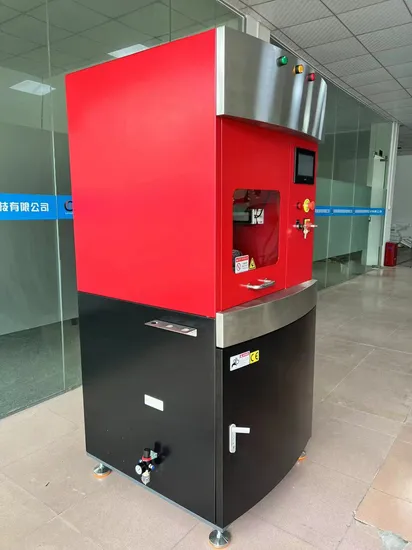

AYPA® V Series automatic tool grinding machine is engineered and designed to your exact needs.
* This series is the most versatile machine that AYPA offers.
* This automatic grinding machine is specially developed for grinding CNC punch molds.
* Operators can set machine parameters and operate the machine through the touch screen.
* All actions are controlled by a programmable logic controller (PLC) program.
* AYPA deburring machine can greatly improve workpieces' accuracy and appearance.
Product Parameters

ITEMS	UNIT	SPECIFICATIONS
Voltage		AC380V,50Hz
Power of Main Motor	/	2.2Kw, 2840 rpm
Motor of Rotating Table	mm	0.100Kw
Servo Motor	mm	0.75KW
Cooling Motor	mm	0.045Kw
Maximum grinding diameter	mm	150mm
Maximum grinding stroke	mm	200mm
The diameter of grinding wheel	mm	135mm
Measurement of machine(L x W x H)	mm	820X820X1810mm
Weight of Machine	s	600Kg
Voltage	°	AC380V,50Hz

Application Area

Packaging & Shipping
Company Profile
AYPA is a technological innovation factory with over 20 patents.
* It specializes in producing CNC turret punch machine, bending machine, CNC deburring machine etc.
* Automatic bender can bend complex workpiece at one-time without manual operation.
* Servo press can automatically punch, roll, cut and form.
* Both can work with stack robot to realize highly automated cabinet, kitchenware, fire door, aluminum wall industry.
* We provide customers R&D, production and after-service.
AYPA represents our commitment to lead industry into new era.
FAQ
1. How about the delivery time?
Generally it's 15-30 days based on the model.
2. How is the warranty time?
1 year after installation.
Lifetime free technical support.
3. How to choose the suitable machine?
Please advise us the material/ thickness/ dimension of metal sheet, and product photos.
