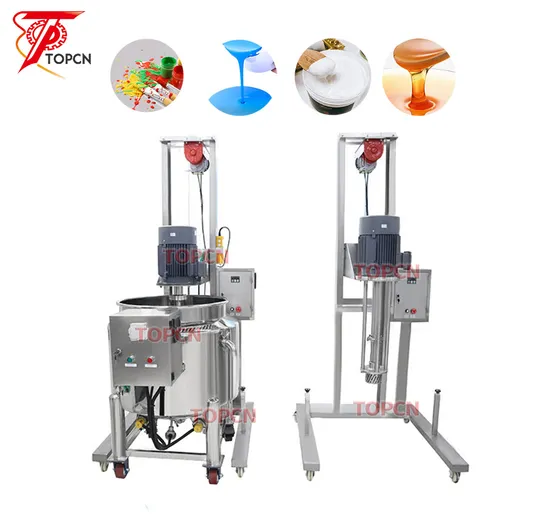

Cosmetic Homogenizing Emulsifying Machine

Product Description

Remark:
1.You can use your own storage tank,just please tell us your tank size before order.Or we can provide storage tank separately.
2.If you have special requirements for the material , stirring paddle ,mixing speed or dimension,please contact us freely.
Topcn pneumatic lifting homogenizer is special for a number of different viscosity liquid stirred at high speed, homogenizering, dissolving, mixing efficient equipment, material movement at different speeds through a special shear impeller rotation, so that rapid dispersion of aggregates , and then to dissolve, emulsify, homogeneous mixing, high quality and efficiency of fast, wide range of applications.
Machine details:
Structure:
This series of machines are: support frame, motor, homogenizing head, cylinder, electrical control systems and control devices. Compact, easy to install, clean and generous appearance.
Homogeneous pinion lift off with pneumatic type, up off the smooth and flexible. Homogeneous gear shaft and main parts are all made of stainless steel, wear resistance, corrosion resistance, excellent quality and long service life, smooth operation, low noise, any rise in the operation down, according to material viscosity, speed arbitrary regulation to prevent the material flying, dispersion impeller for a variety of materials.
Installation method is flexible to adapt to a variety of venues operation is extremely simple, easy maintenance, strong and beautiful body. Advanced features, easy to operate, safe facilities will bring your work pleasant.
Parameter:

Capacity	50-100L
Power	4kw 380v 50Hz
material connect material	SUS304
Material of frame	iron or stainless steel
Motor	Siemens motor
Inverter	Delta
Air pressure	4-8 kg/cm2
Homogenizer speed	0-2880r/min
The height of homogenizer can be lifted	1000mm(customized)

Model selection:
For the lifting homogenizer, we have many other models with different mixing capacities.
Mixed cream and viscous products, you can choose according to the following specifications.
Or you can contact us and tell us your requirements, then we will recommend suitable model for you.

Power	Lifting method	mixing capacity
2.2KW	Pneumatic/Electric	30-50L
4KW	Pneumatic/Electric	50-100L
5.5KW	Electric	100-200L
7.5KW	Electric	200-300L

Motor
According to different output requirements, there are multiple models with different motor powers to selected. Such as 2.2kw,4kw,5.5kw,7.5kw etc.
Control panel
Lifting up and down,speed adjustment all can be operated on it.
High shear emulsifying head
The speed adjustable from 0 to 2880rpm.
Contact part material can choose SUS304 or SUS316L.
Electric or Pneumatic lifting system
Air cylinder lifting system of working head. The height can be customized according to customer's requirements
Lifting height:800-1500mm (can be customized)
FAQ:
Q1: Are you a machine manufacturer or trading company?
A1: We are a reliable machine manufacturer that could gives u best service. And our machine can be customized by client's requirement. Welcome to visit our factory!
Q2: How do you guarantee this machine normally operating?
A2: Every machine is tested by our factory and other client before shipping, We will adjust the machine to optimal effect before delivery. And spare is always available and free for you in warranty year.
Q3: How can I install this machine when it arrives?
A3: We will send the engineers overseas to help client installing, commissioning and training.
Q4: Could I choose the language on touch screen?
A4: It's no problem. You can choose Spanish, French, Italian, Arabic, Korean, etc,
.Q5: What should I do to choose the best machine for us?
A5: 1) Tell me the material you want to fill, we'll choose the suitable type of machine for you to consider. 2) After choose the suitable type of machine, then tell me the filling capacity you need for the machine. 3) At last tell me the inner diameter of your container to help us choose the best diameter of the filling head for you.
Q6: Do you have manual or operation video for us to know more about the machine?
A6: Yes, we will send you the manual and operation video after you ask for us.
Q7: If there's some spare parts that broke, how to solve the problem?
A7: Yes, we will send you the manual and operation video after you ask for us.
Q8: If there's some spare parts that broke, how to solve the problem?
A8: First of all, please take the pic or make a video to show the problem parts. After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
Q9: Do you have manual or operation video for us to know more about the machine?
A9: Yes, we will send you the manual and operation video after you ask for us.
Q10: If there's some spare parts that broke, how to solve the problem?
A10: Yes, we will send you the manual and operation video after you ask for us.
Q11: If there's some spare parts that broke, how to solve the problem?A11: First of all, please take the pic or make a video to show the problem parts. After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
