Universal tool milling machine X8140
| US$16,000.00-18,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X8140
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Motor
3kw
Speed
40-2000r/min
Horizontal working surface
400x800mm
Transport Package
Plywood Case
Specification
1400kgs
Trademark
HOTON
Origin
Shandong, China
HS Code
8459590000
Production Capacity
5PCS/Month
Product Description

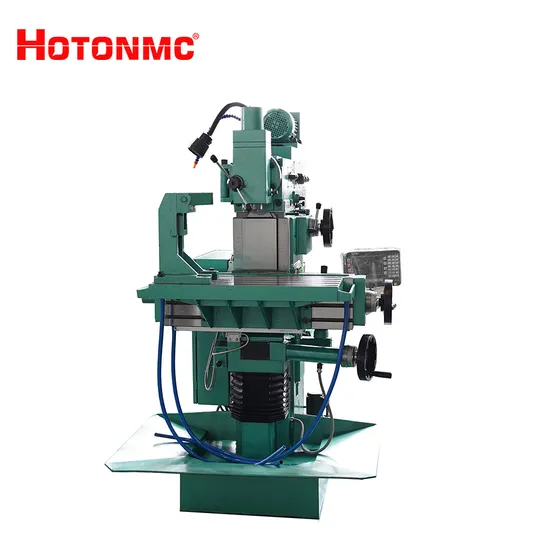

UNIVERSAL TOOL MILLING MACHINE
X8132 universal tool milling machine is a versatile machine,extensively used for metal cutting manufacturer in different mechanical industries. It is particularly suitable for half-finished and precision-machined manufacturing of machine parts,which has complicated shapes. It has a great advantage for manufacturing middle and small parts to use this machine tool.
Universal tool milling machine
horizontal working table and vertical working table
vertical milling head swivel ±90°
SPECIFICATIONS:
| Model | X8140 | |
| Working surface of table | Horizontal | 400x800mm |
| Vertical | 250x1060mm | |
| T-slots of table (Number x Width x Distance) Max travel of X,Y,Z | Horizontal | 6x14x63mm |
| Vertical | 3x14x63mm | |
| 500,400,400mm | ||
| Distance between horizontal spindle and horizontal table | Min | 95±63mm |
| Max | 475±63mm | |
| Distance between vertical spindle and horizontal table | Min | 55±63mm |
| Max | 455±63mm | |
| Distance between vertical spindle and guideway | 540mm | |
| Range of spindle speed(r/min) | 40-2000(18steps) | |
| Spindle taper bore | ISO40 7:24 | |
| Range of longitudinal(X),cross(Y).vertical(Z) | 10-380mm/min | |
| Rapid feed of X,Y,Z | 1200mm/min | |
| Travel of vertical spindle quill | 80mm | |
| Main motor power(total motor power)(kw) | 3(5) | |
| Overall size | 1400x1430x1820mm | |
| N.W/G.W(kg) | 1400/1800 | |
