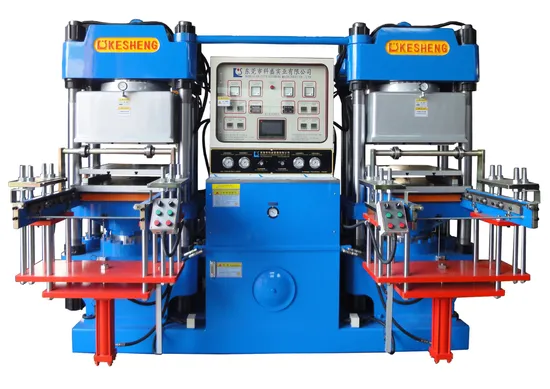

Made in China Good Quality Rubber Injection Molding Machine

Made in China Good Quality Rubber Injection Molding Machine

US$32,000.00 1 set (MOQ)

Basic Info.

Model NO.
KSB-3RT-200T
Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Transport Package
Naked Pack / Wooden Case
Specification
CE
Trademark
KESHENG
Origin
Dongguan China
HS Code
84774090
Production Capacity
800 Sets/Year

Product Description

The advantages of liquid injection machine
1.Stable quality
The raw materials are extracted automatically, and then injected into the mold accurately through the screw according to 1:1 proportional measurement.Thus overcome the unstable quality problem which caused by human production
2.High efficiency
No need to refine the raw materials, no need harmonize colors, no need to weight material and put material, all these steps are control by machine PLC, automatically feeding and calculate materials, high repeatability.Double skateboard coherent operation to open the mold, almost no press time, high efficiency, stable quality.One set Injection machine's production is equivalent to two sets Press molding machines.
3.Save manpower
It will be needed one operator only (no matter man or woman), no need technical experience, as long as the products can be blow out from the mold.Require one worker for one shift, two workers for two shift, no need workers to refine the raw materials.Compare with the Press molding machine, the Injection molding machine can save 3 or more workers.
4.Save materials
Thin and small production burr, and easy for cleaning, the flow path is small and shallow, can save materials.
5.Save power
Three sets heating tubes, one set motor, specially use servo motor for the Injection molding machine, save power.
6.Applied to all kinds of rubber products
Machine main feature:
1.Direct pressure type hydraulic device ensure the mould operation accurate.
2. Double lower die and sliding fast device are suitable for high efficiency production.
3. LSR special pneumatic self-enclosed water-cooled closed-nozzle to make sure never leak materials.
4. To do special design for the injection oil system according to LSR characteristic to make sure feeding and calculate materials more accurate.
Specification

Item

Unit
KSLS-850 KSLS-1200 KSLX-1500

Injection device

Screw Dia.
mm ¢26 ¢28 ¢30 ¢30 ¢35 ¢40 ¢40 ¢45 ¢50

Ideal Injection volume
cm3 74 86 98 98 134 175 251 317 392

Max. Injection pressure
Mpa 252 217 189 265 194 149 168 132 107

Inject stroke
mm 140 140 200

Screw rotating speed
r.p.m 0~240 0~240 0~240

Nozzle protrusion plate size
mm ≥60 ≥60 ≥60

Clamping Device

Clamping force
KN 861 1125 1504

Clamping stroke
mm 250 300 300

Min. Mould thickness
mm 250 250 260

Max. Daylight
mm 650 650 610

Space between bars
mm 390*660 470*660 610*650

Max. Mould size
mm 450*550 550*600 550*750

Ejector stroke
mm 145 175 245

Ejector force
KN 33.2 46.4 53.8

Others

System pressure
Mpa/cm2 14 14 14

Oil tank capacity
L 365 450 433

Heating power
KW 12 12 18

Motor power
KW 11 11 18.5

Size
L*W mm 2200*2100 2700*2200 3900*1150
H mm 2800/3590 3300/4200 3200/4100

Gross weight
T 5.5 6.5 8

Any inquiry please feel free to contact with us, thank you for your attantion!

phone number:+86 13760835714
