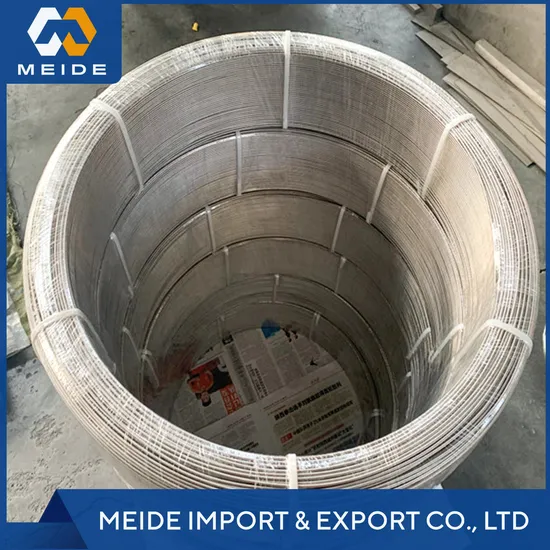

High Corrosion Resistant Industrial Product ASTM B863 Ti-6al-4V Gr23 Tc4 Gr4 Titanium Profile Coil Titanium Wire

Product Description

Product Description Titanium is the strongest and the lightest material for 3D printing. It is used in the process called Direct Metal Laser
Sintering. This metal is mainly used in high-tech fields such as space exploration, aeronautics and medical field.
Distinct Characteristics:
·It provides greater complexity and resolution in design
·It offers industrial designers precision in design.
·It has an average surface roughness.
·Titanium is also biocompatible and resists corrosion.

Item Name	Titanium wire
Material	TA0,TA1,TA2,TA3,TA4,TA5,TA6,TA7,TA9,TA10,TC4,TC6,TC11,GR1,GR2,GR3,GR5 Ti6AL4V ELI,Ti6AL7Nb,Ti13Nb13Zr,Ti1533
Standard	GB/T3623,ASTM B863, ASTM B348,ASTM F67 ,ASTM F136 AMS4951-2003 Industrial pure titanium welding wire AMS4954-2003 Ti-6Al-4V alloy welding wire
Specification	A. Titanium wire specifications: φ0.8-φ6.0mm B. Specifications of titanium wire for glasses: φ1.0-φ6.0mm C. Titanium wire specifications: φ0.2-φ8.0mm D. Welding wire specifications: 2.0mm, 2.5mm, 3.0mm
Surface	Pickling, bright,
Features	Light weight, excellent corrosion resistance, corrosion resistance, high strength, good heat resistance, good ductility, non-toxicity, non-magnetic, excellent mechanical strength, etc.
Status	Annealed state (M) Hot-worked state (R) Cold-worked state (Y) (annealed, supersonic flaw detection)
Applications	Military industry, medical, sporting goods, glasses, earrings, headwear, electroplating hanger, welding wire and other industries.
Applications	Airplane, ship, chemical equipment, daily necessities
MOQ	50kg
Payment	T/T,D/T paypal,Western Union,
Delivery time	spot and small quantity is 3-7 days, customized and large quantity is 25-50days

Titanium wire classification Pure titanium is a silver-white metal, which has many excellent properties. With a density of 4.54g/cm³ titanium is 43% lighter than steel and slightly heavier than the venerable light metal magnesium. The mechanical strength is about the same as steel, twice as strong as aluminum and five times as strong as magnesium. Titanium is high temperature resistant, melting point 1942K, nearly 1000K higher than gold, nearly 500K higher than steel. Titanium wire is divided into: titanium wire, titanium alloy wire, pure titanium glasses wire, titanium straight wire, pure titanium wire, titanium welding wire, titanium hanging wire, titanium disk wire, titanium bright wire, medical titanium wire, titanium nickel alloy wire.
Chemical Composition (%)

Grade	N	C	H	Fe	O	Al	V	Pa	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.2	0.18	/	/	/	/	/	Balance
Gr2	0.03	0.08	0.015	0.3	0.25	/	/	/	/	/	Balance
Gr3	0.05	0.08	0.015	0.3	0.35	/	/	/	/	/	Balance
Gr5	0.05	0.08	0.015	0.4	0.2	5.5-6.75	3.5-4.5	/	/	/	Balance
Gr7	0.03	0.08	0.015	0.3	0.25	/	/	0.12-0.25	/	/	Balance
Gr9	0.03	0.08	0.015	0.25	0.15	2.5-3.5	2.0-3.0	/	/	/	Balance
Gr12	0.03	0.08	0.015	0.3	0.25	/	/	/	0.2-0.4	0.6-0.9	Balance

Mechanical property

Grade	Tensile Strength (Min)		Yield Strength (Min)		Elongation(%)
	ksi	Mpa	ksi	Mpa
Gr1	35	240	20	138	24
Gr2	50	345	40	275	20
Gr3	65	450	55	380	18
Gr4	80	550	70	483	15
Gr5	130	895	120	828	10
Gr7	50	345	40	275	20
Gr9	90	620	70	438	15
Gr12	70	438	50	345	18

Our Advantages 1.Low Density and High Strength
2.Excellent Corrosion Resistance
3.Good resistance to high temperature
4.Excellent Bearing to cryogenic property
5.Good thermal properties
6.Low Modulus of Elasticity
7.Toughness, light weight
8.High property of acid and alkali resistance
Product specification

garde	production method	Specification
Gr1,Gr2,Gr3,Gr5,BT1-00.BT1-0	hot rolling	>4.1-60.0	0.3-0.5X400-600x<1500mm 0.6-0.8X400-800x<1200mm 0.9-6.0X400-1000x1000-2400mm 0.1-15X400-1200x1000-2400mm 16-60X400-1200x1000-2400mm or according to client's demand
	cold rolling	0.3-4.0
Gr5.Gr12.BT5. BT6.BT22.0T4	hot rolling	>4.1-60
	cold rolling	0.5-4.0
Gr3.Gr4.BT5. BT5-1. BT6	hold rolling	4.1-60
	cold rolling	0.8-4.0
technology standard	ASTM B265,ASTM F136,ASTM F 67,ASME SB256,ASTM B381,etc.
features	Toughness, light weight, High property of acid and alkali resistance, Bear high & low temperature, etc.
applications	Chemical equipment, Rack, electrode, exchanger, Condensator, Evaporimeter, Medical etc

product application 1. At present, more than 80% of titanium and titanium alloy wires are used as welding wires, such as welding of various titanium equipment, welding of welding pipes, welding of turbine disks and blades of aviation jet engine, welding of casing, etc. .
2. Because of its excellent corrosion resistance, titanium wire has been widely used in chemical, pharmaceutical and paper industry. It can be woven into Mesh as seawater filter net, purified water filter net, chemical medicine filter net and so on.
3. Titanium and titanium alloy wires are also used to make fasteners, load-bearing members, springs, etc. because of their good comprehensive properties.
4. In the medical and health sector, titanium and titanium alloy wires are used to make medical devices, crown implants, and skull fixations due to their excellent Biocompatibility.
5.Some titanium wires with shape memory functions, such as nickel titanium, are used to make satellite dishes, shoulder pads for clothing, Bras for women, frames for glasses, etc. .
6. In electroplating and water treatment, titanium and titanium alloy wires are used to make various electrodes.
FAQ 1.Are you a manufacturer or a trader?
We're a manufacturer with more than years of professional production experience.
2.Can you accept OEM?
Yes, OEM is acceptable. Just pls provide us with the drawing or sample, we will production totally according to your requirements.
3.Can you provide us with the design drawing?
Yeah, of course, we will provide you with the drawing after you paid or prepaid.
4.Can your factory produce products according to our drawings?
Yes, we can. Most products can be customized, including the Logo on products.
5.What kind of your packaging?
Neutral plywood or wooden box packaging or according to customer's requirements.
6.How long is your delivery time?Which ports are accepted for delivery?
Normally 30days after payment, and we promise we will deliver as soon as we can.It can be delivered from Qingdao, Tianjin, Shanghai, Guangzhou and other ports.
7.How can we get your price ?
A. We need below information to quote for you:
1). Product Name
2). Standard
3). Material Grade (Chemical Composition)
4). Dimension
5). Quantity
6). The Drawing for Special Parts
