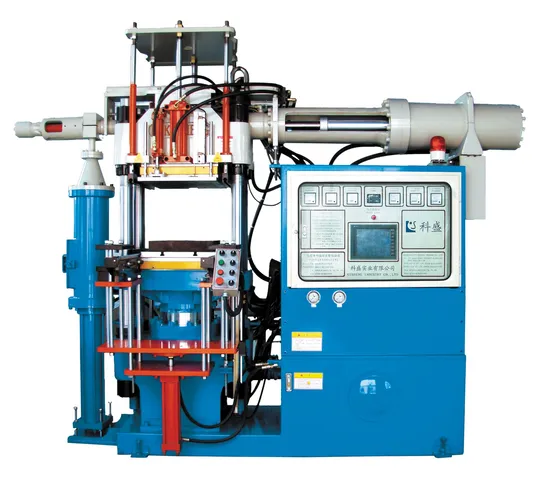

High Efficiency Horizontal Rubber Injection Molding Machine, Rubber Plate Vulcanizing Press Machine, Rubber Product Making Machinery
| US$35,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
KSA
Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Clamping Force
3000kn
Injection Speed
5000cc/Min
Heating Plate Size
700*700mm
Injection Pressure
188MPa
Mould Opening Stoke
550mm
Electrical Power
18kw
Min.Mould Thickness
60 mm
Gross Weight
13500kg
Machine Size
3450*2630*2600mm
Transport Package
Naked Pack / Wooden Case
Specification
double work station
Trademark
KESHENG
Origin
Dongguan China
HS Code
8477409000
Production Capacity
2000 Sets/Year
Product Description
200Ton Horizontal rubber injection molding machine, rubber plate vulcanizing press machine, full automatic, hign precision, for all kinds of black rubber product. Add feeders can produce silicone products.Machine main feature: 1. Full-scale oil system 2. Streamlined no dead material back check valve design 3. A full range of computer display control system 4. Precision optical ruler control injection quantity, matching with three-stage injection control 5. With Japan made high-tech infrared safety electric eye 6. Double helical loop temperature control system 7. Multi-stage design to eliminate bubbles during feeding material 8. Can match with cold and hot runner for run material model
Applicable products: All kinds of black rubber product. Add feeders can produce silicone products.
Main parts instruction
| NO. | Item | Branch/Material | Remarks |
| 1 | Motor | Taiwan Tatung | Large torque type, quiet and silent |
| 2 | Oil Pump | Japan branch | Collective style circuit design |
| 3 | PLC | Japan Mitsubishi | Independent written, easy to operate |
| 4 | LCD touch screen | Taiwan PanelMaster | Clear and intuitive, convenient, easy to operate |
| 5 | Heating pipes | Taiwan branch | Nickel-chromium alloy wire, never rust |
| 6 | Oil seal | Japan NOK | Wear-resistant, durable, no leakage |
| 7 | Solenoid valve | Taiwan Victoria | Controlled fast, long life |
| 8 | Other electrical configuration | Japan Fujitsu, Great Wall, Chint and so on | Performance and stability |
| 9 | Thermostat | Omron | Using PID correction, temperature uniform distribution, the error value at ± 3 ºC |
| 10 | Pressure sensor | Denmark TRAFAG | Conduction pressure accurate, unbiased, and easy to use |
| 11 | Heating control system | Taiwan Solid State Relays | temperature uniform distribution, the error value at ± 3 ºC |
| 12 | Machine body casting | FCD50 Ductile Iron | Aging passivation, high tensile strength |
| 13 | Column | Carbon Steel | Hardness up to HRC55--58 |
| 14 | Work plate | Size as per quotation | 45 # high carbon steel, grinding, surface nitriding hardness HRC50-55 |
| 15 | Machine Middle body | Umbrella tapered design | Make the machine rise and fall by force, the mold cavity pressure evenly, the product is not lack of material, no bubbles |
| 16 | Vacuum Pump | Germany Busch | Evacuated quickly, can reach 760 mm Hg within 5 seconds |
Specification and parameter:
| Model | 200Ton | 250Ton | 300Ton | 350Ton | 400Ton | 500Ton |
| Clamping force(Ton) | 200 | 250 | 300 | 350 | 400 | 500 |
| Stroke(mm) | 250 | 250 | 250 | 300 | 300 | 300 |
| Heating plate size(mm) | up 503x508mm down 554x560mm | up 600x600mm down 600x650mm | up 600x600mm down 650x650mm | up 700x700mm down 750x750mm | up 800x800mm down 850x850mm | up 950x950mm down 1000x1000mm |
| Main cylinder diameter(mm) | 355 | 400 | 450 | 475 | 500 | 560 |
| Horse power(HP) | 10x2 | 10x2 | 10x2 | 15x2 | 15x2 | 15x2 |
| Electrical power(KW) | 22 | 34 | 34 | 43 | 48 | 72 |
| Gross weight(KG) | 9000 | 11500 | 13500 | 16500 | 19500 | 23500 |
| Machine size(L*W*H mm) | 3000x2360x2330 | 3300x2710x2530 | 3450x2630x2600 | 3600x2950x2600 | 3800x3300x2800 | 4200x3600x3300 |
Any inquiry please feel free to contact with us, thank you for your attantion!
