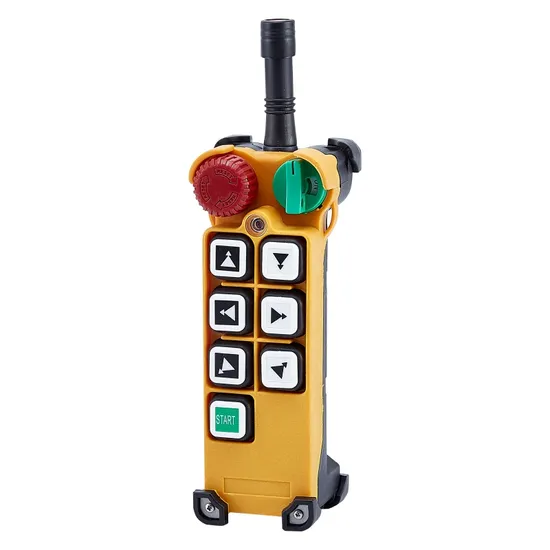

Telecontrol Uting A24 F24-6D 6 Double Speed Wireless Industrial Crane Radio Remote Control
Basic Info.
Model NO.
F24-6D
Certification
CE, FCC, ISO9001, RoHS
Code Type
Default
Color
Red
Encode Mode
NEC
Frequency
433.92MHz
Material
Plastic
Transmission Distance
80-100m
Type
Wireless
Universal
Universal
Voltage
12V, 18-440V
Cable Length
1.6m
EMS
Yes
IP Class
IP 65
Temperature
-40~+85
Transport Package
Cartoon
Specification
33*21*17CM
Trademark
Telecontrol
Origin
China
HS Code
8526920090
Production Capacity
100000PCS/Year
Product Description
Telecontrol Uting F24-6D 6 Double Speed Wireless Industrial Crane Radio Remote ControlProduct Specifications : 12V UHF : The Receiver power supply 12V AC DC . Frequency UHF 425~446MHz . Arrow buttons
24-48V UHF : The Receiver power supply 24-48V AC DC . Frequency UHF 425~446MHz . Arrow buttons
100-440V UHF : The Receiver power supply 100-440V AC DC . Frequency UHF 425~446MHz . Arrow buttons F24-6D Function Characteristic : 1.Have 7 function keys (6 double speed buttons + 1 start button ).
2. Control contact is up to 12.
3. With mushroom head rotation scram button
4. Safety switch key is to prevent from unauthorized user
5. With battery voltage warning device, the power supply is cut off during low power.
6. Program the button function by computer software.( The program software /data line need to buy extra )
7. Up/down, east/west, south/north can be programmed to interlock or non-interlock, toggle or normal etc.
Start button can be program to be start, normal, toggle function etc. F24-6D Standard Configuration: 1 pieces transmitters (with hanging belt)
1 piece receiver with 1.6M cable connector
1 pieces dust bag
1 piece english manual
| F24-6D Transmitter Parameters | |||||||
| Material | Glass-Fiber PA | ||||||
| Enclosure protection class | IP65 | ||||||
| Frequency range | UHF: 425-446 MHz | ||||||
| Transmitter power | ≤10dBm | ||||||
| Transmitter power supply | 2 AA alkaline batteries (not included) | ||||||
| Safety code | 32 bits (4.3billion) | ||||||
| Temperature range | -40ºC-+85ºC | ||||||
| Control distance | up to 100 meters (it is available to customized long distance up to 200m) | ||||||
| Size | 156x61x51mm | ||||||
| Weight | 255g (without battery) | ||||||
| F24-6D Receiver Parameters | |||||||
| Material | Glass-Fiber PA | ||||||
| Enclosure protection class | IP65 | ||||||
| Frequency range | UHF: 425-446 MHz | ||||||
| Receiver sensitivity | -110dBm | ||||||
| Receiver power supply | 48/220/380V (optional) | ||||||
| Safety code | 32 bits (4.3billion) | ||||||
| Temperature range | -40ºC-+85ºC | ||||||
| Cable length | 1.65m (Other length can be customized) | ||||||
| Output contactor capacity | 8A sealed relay output (with AC 250V/10A relays, 10A fuse) | ||||||
| Size | 210x162x107mm | ||||||
| Weight | 1220g | ||||||
