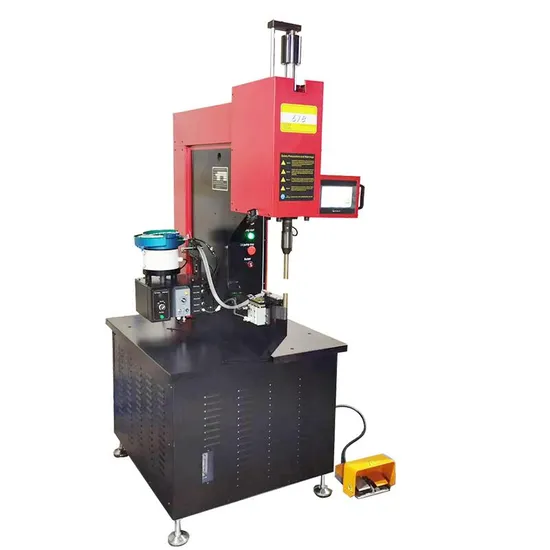

Usun Model: ULYP-618 10 Tons Auto Feeding Hydraulic Nuts Insertion Press Machine with PLC Touch Screen System

Product Description

Low cost C frame 10 Tons customized self clinching
Automatic hydraulic fastener insertion Press machine with
PLC touch screen system
63 KN(6 Ton) ram force and 450mm(18 inch) throat depth with adjustable ram retract position.
Dwell time adjustment. Riveting capacity: carbon steel fasteners with maximum size
nut M10 and off M8ud M6
Broaching flaring (maximum fastener size M8 with material carbon steel)
Convex forming (maximum forming diameter 45 mm)
Product Main configuration
1. Hydraulic tank stand 2.Upper and lower tooling
3. Hydraulic cylinder and cylinder cover case 4. Main cover
5. Hydraulic hose and cylinder cover
6.Anti deflection guiding rod 7.Positive limited screw
8.Electrical cabinet 9. Tooling holder
10. Hydraulic gauge
Machine technical data :
1) Compact structure, clean design
2) Increased productivity with automatic feeding system and multi-point riveting
3) Large anti-ejecting forces and anti-torsion torques
4) High flexibility with height-adjustable
5) High stroke frequency High stroke frequency
6) Easy maintenance and changeable
7) Available for riveting nuts diameter larger than M10
Product Specifcation
1.Riveting ability (Nut below M10,bolt below M8 and srew below M6 carbon steel material riveting fastener)
2.Turned edge tapping thread (below M6 carbon steel material turned edge tapping thread technology)
3.Convex hull formation(formation arear diameter below 45MM techonlogy
4.No rivet screw conjunction(total thickness below 4.0MM carbon steel material no rivet screw conjunction technology)
5.Pierce out lock rivet conjunction (total thickness below 4.0MM carbon steel material pierce out lock rivet
conjunction technology)
Spare parts for machine
Optional auto feeding system and tooling system
PLC tousch screen interface
Main Technical parameters

Type	ULYP-618-PLC
Max.pressing force	100KN
Power source	Hydraulic powered
Power supply	380V/50HZ
Max.total stroke	200 mm
Compressed	None
Weight	640 KGS

Product applications
Real clinching samples for C frame bolts or nuts
