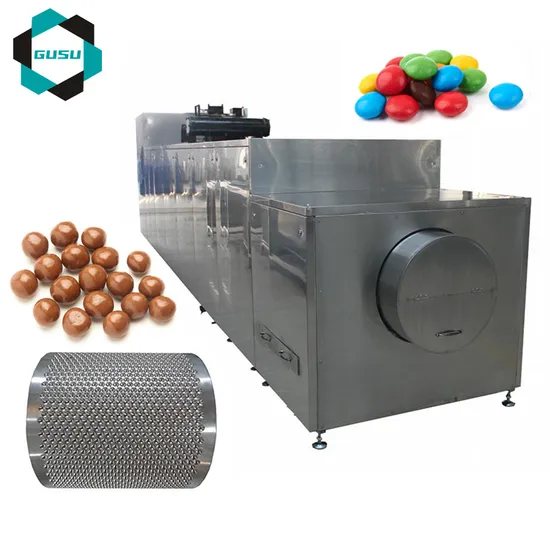

Gusu Automatic Chocolate Bean Roller and Forming Machine
| US$70,000.00-75,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
QCJ Series
Certification
CE, ISO9001
Power Source
Electric
Process
Thermal Processing
Automatic Grade
Automatic
Application
Chocolate
Customized
Customized
Condition
New
Voltage
Customized
Power
Customized
Weight
Customized
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Driven Type
Electric
Roller Speed
0.3-1.5 R/Min
Cooling Time
18-30 Min
Transport Package
Wooden Package
Specification
Customized
Trademark
Gusu
Origin
Suzhou
HS Code
8438200000
Production Capacity
500 Units Per Month, 50-200kg/H
Packaging & Delivery
Package Size
862.00cm * 148.00cm * 210.00cm
Package Gross Weight
400.000kg
Product Description
Our AdvantagesProduct Parameters
Technical Parameter
| Model | QCJ 400 | QCJ600 |
| Roller Width(mm) | 400 | 600 |
| Production Capacity (kg/h) | 100-150 | 150-250 |
| Roller Speed (r/min) | 0.3-1.5 | 0.3-1.5 |
| Surface Temp. of Cooling Roller(ºC) | About -20 | About -20 |
| Cooling Tunnel Temp. (ºC) | 0-5 | 0-5 |
| Cooling Time (min) | 18-30 | 18-30 |
| Cooling Box Refrigeration Output(W/h) | 8260 | 12390 |
| Evaporation Temp. (ºC) | -35 | -35 |
| Condensation Temp. (ºC) | 30 | 30 |
| Total Power(KW) | 25 | 30 |
| Overall Size(mm) | 8620*1040*2100 | 8620*1480*2100 |
FAQ
1. How about your quality?
(1)We have been specialized in chocolate machines for more than 47 years (1969).
(2)We have strict quality inspect 12 hours' working status of all the machines before delivering to make sure the quality.
2.How about your after-sale service and warranty period?
(1)We provide one-stop installation (all fees including visa , Transportation, accomdation will be afforded by buyer , an USD 50/day installation fee should also be paid .
(2) Warranty period: 12 months after delivery.
(3) We will provide the replacement parts for free due to quality problems underproper operation within warranty period.
(4) Afterwarranty period, we'll charge the replacement parts at cost price.
(5) We provide lifetime technical support for all the machines.
3. Where are your main markets?
After 46 years' development, our chocolate machines have been sold to over 60 countries worldwide , such as U.S.A, Turkey, Russia,Ukraine, Uzbekistan, India, Spain, Peru, Egypt, Poland, Indonesia,Thailand, Bangladesh, Estonia, Armenia, Belgium, Aman, Saudiarabia, Croatia, Yugoslavia, Japan, Britain, Brazil etc
