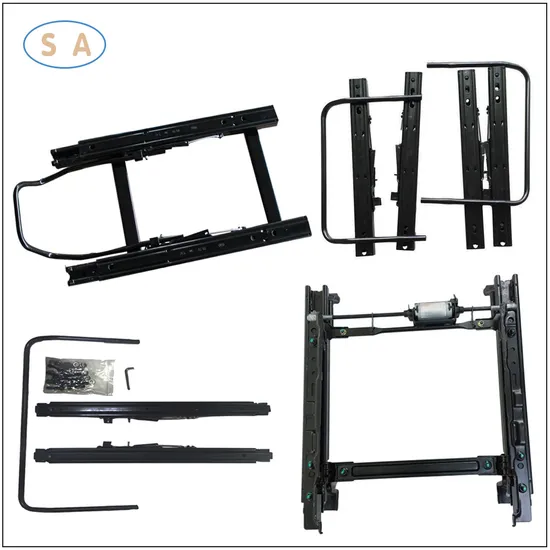

Universal Style Auto Seat Rail Black Powder Coated Auto Accessories Recline Adjusted Double Locked Seat Slide Rail for Car/Bus/Caravan/Van

Product Description

Universal Style Auto Seat Rail Black Powder Coated Auto Accessories Recline Adjusted Double Locked Seat Slide Rail for Car/Bus/Caravan/Van
Product Description
-Professional in manufacturing seat and spare parts;
-10 years of experiences in the seat manufacturing field;
-Main market: Europe, North America, Australia and so on;
-Skillful Manufacturing Team & Design Team;
-High-precision Testing Team Equipment;
-Professional Management Team.

Type	Seat Rail	Style	Adult Adjustable
Size	Universal	Color	Black
Material	Steel	Sample time	2-3 Days
Application	Universal Fitment	Feature	Multi-site Adjustment

This Seat Slider Mounting Kit (non-tabbed) By Shapex allows for the adjustment of your racing seat's
position. Double locking mechanism increases slider stability for increased safety. Designed to mount
between the seat side-mount bracket and floor of the vehicle.
Auto seat slider is used on the seat in the auto, forklift, construction equipment, tractor, excavator,
bulldozer etc.
1, Flat moving from the front to the rear.
2, The stroke length from 0-220mm, and it can be changed as per requirement.
3, Double lock with handle
4, Can be mounted on the seat of a truck, car, excavator,etc
5, Installation dimension, various size design.
Material: 2mm steel Surface treatment: black powder coating.

Color	Black or customized color
Application	Car Seat Rail
Stroke	0-220mm/Custom Length
Material	Steel
Thickness	2mm
Surface Treatment	black powder coating

Our Advantages
1. High skilled and well-trained working team under good management environment;
2. Quick response and support for any inquiries;
3. Over 10 years professional manufacture experience to ensure high quality of your products;
4. Large and strong production capacity to meet your demand;
5. High Quality standard and hygienic environment;
6. We have very strict quality control process:
a. In coming Quality control (IQC) - All incoming raw material are checked before used.
b. In process quality control (IPQC) - Perform inspections during the manufacturing process.
c. Final quality control (FQC) - All finished goods are inspected according to our quality standard
for each products.
d. Outgoing Quality Control (OQC) - Our QC team will 100% full inspection before it goes out for shipment.
7. Good after sales services.
Technical requirements:
1. The slide rail card board should be able to slip into any gap of the sliding rail fixed part in the moving
area without blocking the phenomenon;
2. The unlocking force of sliding rail is 30~ 80N.
3. Sliding rail sliding resistance ≤6.5 N;
4. Internal and external rail transit clearance ≤ 0.2mm;
5. Sliding rail locking force≥2000N;
6. Surface treatment: spray (black flat light), no rust on the surface, scratches and other defects;
7. After 5,000 sliding cycles of the slide track, the functions of the slide rail shall not be damaged;
8. The total stroke of the slide is 140mm, which is 80mm forward and 60mm backward.
