Kyy High Quality Low Price 18t/25t/30t/38t Die Casting Machinery for Zipper Slider Zinc Alloy Hardware Zipper Machinery

Product Description

High quality low price 18T/25T/30T/38T die casting machinery for zipper slider for casting iron zinc Machine introduce & Main features

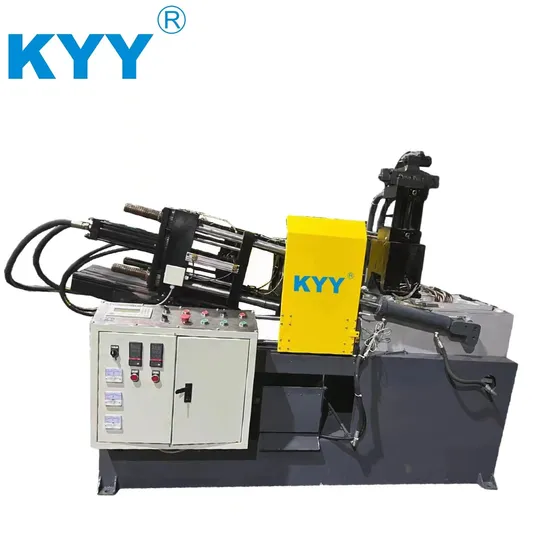

Special die casting machine for zipper head
Model: KYY - 07
Name: Die Casting Machinery for Zipper Slider
Size: 2500 * 1700 * 2000
Power consumption: 12 kilowatts
Packing size: 3000*2000*2500mm
Weight: 1500 kg net, 1700 kg gross
Air pressure: 5kgs/cm
Working space: 5 square meters
Operator: 1 person/table
Capacity: 900 molds per hour
With 18T,25T,30T,38Tmodel
Specification

Item	Unit	HY20T	HY25T	HY25 enhanced	HY38T
Mould clamping force	kn	200	250	300	400
Tiebar diameter	mm	40	45	45	50
Clamping stroke	mm	125	160	165	210
Internal diameter of Tiebar	horizontal*vertical	240*220	285*245	265*285	290*290
Mold thickness (min - Max)	mm	110-190	120-210	120-210	130-300
Ejecting force	kn	20	25	30	40
Injection force	kn	20	25	30	40
Injection stroke	mm	78	110	110	125
Hammer diameter	mm	38	42	42	45
Injection volume (theory)	g	200	550	550	600
Furnace capacity (zinc)	kg	140	160	160/350	350/450
Working pressure	mpa	8	8	8	9
Oil Pump Volume	L/min	33	41	41	41
Motor power	Kw(6p)	5.5	5.5/7.5	7.5	7.5
Injection nozzle heating	Kw	1.2	1.5	1.5	3.5
Accumulator capacity	L	10	16	16	16/6.5pair
Fuel tank volume	L	100	150	150	150
Machine dimension	Length*Width*high	1500*1100*1700	2900*1300*1800	2900*1300*1800	3300*1350*1850
Machine Weight	T	1.8	2.3	2.5	3

Zhejiang Longqi Science and Technology Group with five subsidiaries is a collection of production, research and development, sales as one of the diversified developing enterprise. Zhejiang Longqi Science and Technology Group Wenzhou Jinghong International Trade Co., Ltd is one of the subsidiaries.
We have 3 main brands, KKK, KYY and KIKI. Our company produces all kinds of zipper slider parts, Metal,nylon,plastic full-auto zipper pre-processing, latter equipment, auxiliary equipment, to meet the different needs of different customers. We also produce all kinds of clothing accessories and luggage bag accessories, zipper slider equipment and various equipment accessories.There are all kinds of zipper sliders, bag zipper slider universal assembly machine, universal assembly machine for bag zipper slider and keyhole, special die casting machine for zipper sliders, straight shrapnel capping machine, automatic rolling and returning material machine, automatic assembly machine for invisible puller, spring head assembly machine, automatic assembly machine for bag zipper sliders, automatic assembly machine for spring fastener, barrel polishing machine, paint spraying machine, polishing machine grinding machine, etc., can also be customized.
