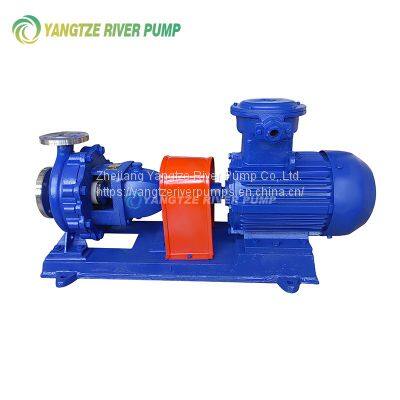

Single Stage Acid Resistant Centrifugal Pump

Product Details

Product Description

Product Description
Summary
Yangtze IH type single stage acid resistant centrifugal pump, which is a single-stage single-suction cantilever centrifugal pump, and its rated performance points and dimensions are in accordance with the international standard ISO2858-1975 (E). It is one of the energy-saving pump products popularized in worldwide. It is designed and developed by Yangtze technicians. The pump is widely used in industrial and agricultural urban drainage, fire water supply and so on. For transferring corrosive media at 20℃～120℃ or sanitary media with physical and chemical properties similar to water.
Product Performance
Products Name:single stage acid resistant centrifugal pump
Size: 32~200 mm, 1.5~8 inch
Flow: 6.3~400 m3/h
Head: 5~125 m
Power: 0.55~110 kW
The highest work pressure: 1.6 Mpa
Standard: ISO2858
Heating Jacket: Can
Shaft Seal Type: Single Mechanical Seal , Double Mechanical Seal
Material: SS 304, SS 316, 2205 duplex stainless steel
Impeller Type: Close Impeller , Semi-open Impeller, Open Impeller
Product details
Working Principle: single stage acid resistant centrifugal pump
Usage: Corrosive Chemical Liquid, Acid, Alkaline, Sea Water, Oil, Food
Main Applications: Chemical and petrochemical industries , Pharmaceutical industry , Paint industry , Plastic and rubber industries , Ferrous and non-ferrous metal industries , Paper and cellulose industries , Textile industry , Food and drink industries
Shaft Seal Type: Single Mechanical Seal , Double Mechanical Seal
Material: SS 304, SS 316, 2205 duplex stainless steel
Impeller Type: Close Impeller , Semi-open Impeller, Open Impeller
Heating Jacket: Can
Advantages
With stable flow and head
Large variety of medium temperature -20℃~105℃
Easy for maintenance, only need to dismantle spacer coupling
Corrosion resistance for most of chemicals
Abrasion and erosion resistance, double end mechanical seal is available
Few leakage with various shaft seal for different operating condition
