Anti-Static Super Clear Soft Flexible Fabric Protective Plastic PVC Sheet (polyvinyl chloride)

Product Description

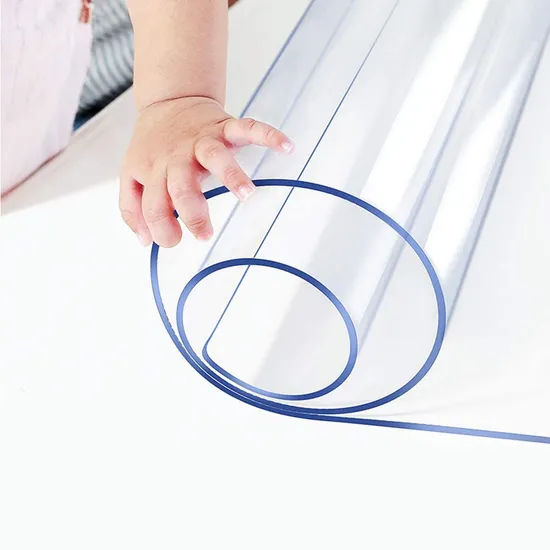

Anti-Static Super Clear Soft Flexible Fabric Protective Plastic PVC Sheet
"Coseal"-One stop shop for "All" of your PVC solutions!
PVC SHEET, TRIP CURTIAN, MAT, PIECE, and FILM, etc.

1.Purpose
1. Used for covering,
2. Used for printing,
3. Used for package,
4. Used as soft glass,

2.The scope of application
Mainly used in the table cloth of table.
Instead of glass windows
Curtain of super-market, factory or restaurants.
To protect your furniture.
3.Characteristics
Easy to clean
Non-toxic, tasteless, green products.
Adapt to the joint of all kinds of plane and crooked surface.
Adapt to the process of all kind of suction.
Product have the performance of heat resistant and wearable.
Able to produce smooth surface, printing surface, grain surface, frosted surface and so many kinds.
Technical Data:

PROPERTY	Standard	Unit	Value
Shore A hardness	EN ISO 868	Sh A	80
Tearing resistance	DIN 53515	N/mm	50
Tensile strength at break	ASTM D 638 EN ISO 527	N/mm²	16
Elongation at break		%	340
Residual elong. (after break)		%	68
Thermal conductivity	ASTM C 177	W/m.K	0,16
Cold bend brittle temperature	ISO 8570	°C	-35
Usage temperature range	EN 1876	°C	-15/+50
Vicat softening temperature	EN ISO 306	°C	50
Specific heat capacity	ISO 11357	kJ/kg.K	1,6
Sound reduction	DIN 52210	dB	>35
Reaction to fire	CFM
Light transmittance	ASTM D 1003	%	85
UV/IR filter	AWS	Filter	-
UV resistance	ISO4892	-	Yes
Charge buildup	IEC 61087	Sparks	Yes
Surface resistivity	IEC 60093	.1012 Ω/	40
Water absorption	EN ISO 62	%	-0,2
Density	ASTM D 792	g/cm3	1,22

Performance Test	Method: B S 2782	Protective Plastic PVC Sheet Formula P.35 Value	PVC strip curtain Super Cold Formula P.45 Value	Unit
Relative Density	DIN 53 479	~1.22	~1.19	g/cm3
Softness A Hardness	DIN 53 505	77	63	-
Brittle Point	DIN 53 372	Approx -35	Approx -45	Degrees C
Falling Ball Test	Internal Test	"-35 No Break	"-45 No Break	Degrees C
Flexibility	DIN 51 949	"-35 No Break	"-45 No Break	Degrees C
Water Absorption	DIN 53 472	17	21	Mg
Tensile Strength	DIN 53 455	17	13	Mpa
Tensile Stress	DIN 53 455	300	420	%
Rupture Resistance	DIN 53 515	>5	>2	N/mm
Reaction to Fire	DIN 53 382	Self-extinguishing	Self-extinguishing	0
Flammability	Based US MV SS 302	Inflammable	Inflammable	0
Airborne Insulation	DIN 52 210	~30 dB	0	0
Light Transmission	-	>80	>80	%

Product	Soft PVC sheet
Size	Length	According to the customers' request
	Thickness	0.1mm-8mm
	Max Width	1.85/2/2.5m
	We can produce other special sizes according to the customers' request.
Color	Transparent, white, blue, red, yellow, and so on.
transparency	transparent, semi-transparent, opaque
Surface treatment	transparent, grinder, single and double sticker, dumb white (black)
hardness shore A	75+/-5
Transmission	crystal clear, >=80%
Grade	New material, ordinary material
Characteristics	- Chemical and Corrosion Resistant - Easily Fabricated or Welded - Cost Effective - Durable and flame retardant - Excellent for outdoor exposure. - Paintable. Weather resistant. - High tensile, compressive, and flexural strength.

FAQ
1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM/ODM manufacturer factory with export license. We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.


2. Question : Why choose cooperate with us ?
Answer : -- Right people, Right product, Right price ;
-- Company-wide customer awareness ;
-- Reliable Quality and All components from world leading suppliers ;
-- Cost-effective export infrastructure and total supply chain management ;

3. Question : Where is your factory located ? How can I visit there ?
Answer: With an ISO90001 certified factory located in hebei Province , P.R. China . It takes about 2 hours from BEIJING by car. It is very pleasure for clients to visit us.

4. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.

5 Question : How can I get some product samples ?
Answer : We are honored to offer you good product samples. New clients are expected to pay for the product sample cost and the international transportation cost. Product Sample cost would be deducted from the customers' next mass production purchase order in future.
6. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.


7. Question : What is the average delivery time ?
Answer : Most of the time, it would be around 1 week since after confirm receiving customers' contract money. For mass production purchase order at big quantity, the delivery time could be discussed with each other case by case
