High Quality Vacuum Homogenizing Emulsifier Mixer Cosmetic Chemical Mixing Tank Equipment Machinery/ Mayonnaise Making Machine

Product Description

Cosmetic Viscosity Cream Paste Vacuum Emulsifying Mixer Homogenizer Machine Production Equipment(Turn-key project)

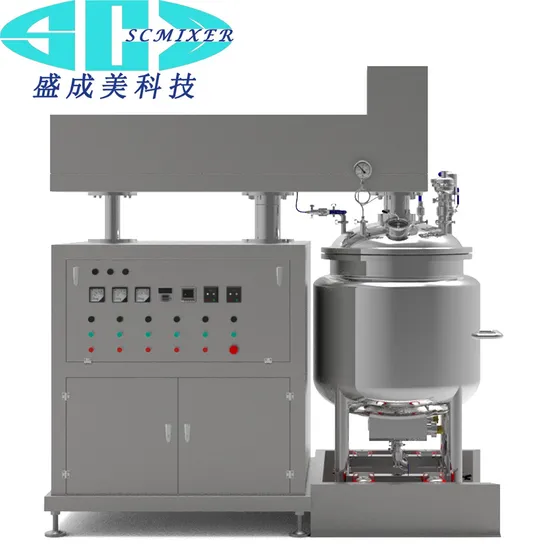

SCM-VA Vacuum emulsifying mixer (bottom homogenizer), this agitator has the functions of emulsifying, homogenizing, heating and etc. It is suitable for producing emulsion or cream viscous product. It is widely used to product medicine emulsion, ointment, vanishing cream, facial mask, face cream, emulsion flavor, oil-water emulsification, emulsified asphalt, resinification, wax emulsion, waterborne polyurethane emulsion, pesticide, tissue homogenate, dairy production emulsion, juice, ink, jam.
Note that it is essential to keep low product losses, and Scmixer designs the machine as a short time cleaning to support frequent batch changes. Vacuum pumps and CIP valves are fully integrated in a manner consistent with GMP requirements to facilitate the cleaning of the external surface.
New product lab emulsifier high shear mixer prices/ Lab High Speed Shear HomogenizerIn the process of producing emulsion with high viscosity, there are two important problems.
One is the scattered bigger diameter particles.The other is the air which will mix into the material during the mixing. Particles of the large diameter will lead to the labile state of the materials. If the air goes into the material, the material will be mixed with bubble, polluted by bacterium, easily oxidized and obtained an rough appearance .Regarding to these two problems, our factory-Scmixer vacuum emulsifying mixer manufacturer had developed YIF Vacuum Emulsifying Mixer which are made up of homogenizer & middle blade stirrer & scraper residues stirrer to form the best mixing way in order to produce the perfect mixed material. By extracting air from the material, the vacuum pump can ensure that the material is glossy, exquisite and ductile.
Details picture Electric CabinetSUS304 control panel: button / PLC touch screen (option)Ampere meter, VoltmeterReal-time Temperature displayMixing system control (frequency control)Vacuum system controlHydraulic lifting system controlFrame Wall Scrapper MixerSUS316L Wall scrapper mixerPTFE scraperFixed propeller, 45degree blades on opposite angles to make sure mixture completeSiemens motor drive, 0-65rpm with variable speed controlTWO WAYS wall scrapper mixerHELIX scrape mixer(OPTION)Frame Wall Scrapper MixerSUS316L Wall scrapper mixerPTFE scraperFixed propeller, 45degree blades on opposite angles to make sure mixture completeSiemens motor drive, 0-65rpm with variable speed controlTWO WAYS wall scrapper mixerHELIX scrape mixer(OPTION) Why the tank with homogenizer is best ?(AIK homogenizer)Emulsification is the process of mixing two liquids that are difficult to mix. The main purpose of emulsification is to disperse the discontinuous phase into smaller droplets. The rotor-stator device is particularly suitable for emulsification tasks. The combined action of high shearing force and high expansion force in the mixing head makes the droplets small. In addition, the large turbulence enables the rotor-stator device to help transport emulsifier molecules quickly to the reformed surface.Water and Oil PotMachine equipped A set of water and oil potWater pot capacity: 10-5000l, Oil pot capacity: 10-5000lPower: 0.37-22kw, Siemens motor, Speed: 1440RPMElectric heating by Water or Conduction OilMixing: High shearing DISPERSER plates with baffle on wallHalf open hinged lid for easy operation
Technical parameter

Type	Workingcapacity	Homogenizer		Agitator		Vacuum pump		Heating power (KW)
		KW	r/min	KW	r/min	KW	Limit vacuum	Electrical heating	Steam heating
SCM-VA-100L	100L	4	0-3600	1.5	0~63	1.5	-0.09	30	12
SCM-VA-200L	200L	5.5	0-3600	2.2	0~63	2.2	-0.09	45	16
SCM-VA-300L	300L	7.5	0-3600	2.2	0~63	2.2	-0.09	48	18
SCM-VA-500L	500L	11	0-3600	4	0~63	3.85	-0.09	60	24
SCM-VA-1000L	1000L	15	0-3300	7.5	0~52	5.5	-0.09	72	30
SCM-VA-2000L	2000L	18.5	0-3300	11	0~45	7.5	-0.09	/	49
SCM-VA-3000L	3000L	22	0-3300	15	0~45	7.5	-0.09	/	66
SCM-VA-5000L	5000L	22	0-3300	18.5	0~38	11	-0.09	/	77

Factory display
Company display
Showroom display
Engineering cases
Certifications
Shipping and packing
FAQ:1.How to send my enquiry?
You can contact us by email, phone call, Instant Messenger
(Whatsapp/phone,We Chat).2.How long can I get feedback after enquiry?
We will reply you within 2hrs.3.What is the package?
Machines will be packed by plywood case.Our Service:Pre-sales service:1> Engineering design
2> Equipment model selection guide
3> equipment machinigAfter-sales service:1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
