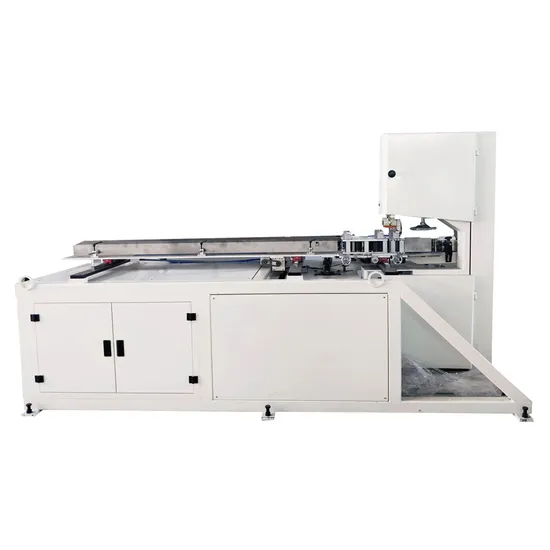

Full Automatic Toilet Paper Making Machine Toilet Paper Roll Cutting Machine

Product Description

Automatic band saw speed cutter toilet paper machine
The equipment is operated by using PLC program control, big screen true color human-computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.
Technical performance characteristic
1,The transducer independent driver is used in the main motor;
2,The cutting knife automatically stops and gives an alarm;
3,The high precision servo system is used in the feed motor servo system, to ensure the qualityof the finished product.
4,The equipment automatically calculate the quantity of the finished product being cut; according to the raw material and the length of the finished product;
5,When data input is incorrect, the equipment breaks off and prompts to adjust on the interface
6,The cut paper head and paper end can be automatically sorted;
7,Cut with knife is used in the equipment, which reduce the use cost of the user;
Specification:
Machine weight 1000KG
Cutting speed 60~100cuts/min
Cutting log channel single channel
Cutting blade band saw blade
Cutting blade size 3850*50*0.6
Log length <=2000mm and <=3000mm
Tolerance ±1mm
Cutting length <=250mm
Cutting diameter 6-130mm
Power supply 5kw 3 phase 4line 380V 50HZ

Our Company
Our Certifications
We Care: 1. Machine Quality
Machine Quality Is Good Or Not, Which Is Not Only Affect The Finished Product Directly, But Also Affect Your Output And Sale.
We, Xinda Machinery, Always Focus On Quality And Are Specialized In This Field For 20 More Years. All Our Machines Are Passed CE Certificates. Choose Xinda Machines, They Can Reduce Your Production Problems.
2. Your Cost
Facial Tissue Paper Is A Product Of Large Consumption And Low Value, But Investing Machines For Making Tissue Paper Is High. To Take Care Of Your Budget And Cost, Xinda Machinery Recommends Different Series Machine With Different Price Range For Different Markets. Here Will Have What You Want. Your Customized Order Is Warmly Welcomed. We Will Do Best To Meet Your Needs And Price, Of Course, Is Reasonable.
3. Our Service
1). After The Machine Arrived At Customer's Plant, If Customer Requests, We Send Our Engineer To Customer's Factory To Install And Test Machine, And Offer Trainings To Customer's Technician About 5~15 Days.
2). Lifelong Consult On Quality And Operation Problems.
3). 12 Months Under Normal Use After Machine Arrived At Customer's Plant.
4). Delivery On Time And Loading Machine Well Before Shipping. FAQ
Q: Are you trading company or manufacturer ?A: We are factory.
Q: How long is your delivery time?A: Generally it is 30 days if the goods are in stock. or it is 60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.If you have another question, pls feel free to contact us as below:
