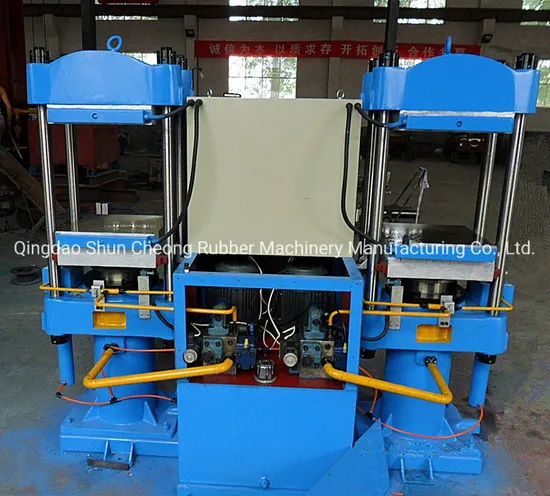

Duplex Vulcanizing Press, Hydraulic Vulcanizing Press, Rubber Vulcanizing Press

Product Description

Plate Vulcanizing Press, Duplex Vulcanizing Press, Hydraulic Vulcanizing Press, Rubber Vulcanizing Press, Vulcanizing Press, Pressure Plate Vulcanizing, Plate Vulcanizing Machine
Usage
This plate vulcanizing press is used for all kinds of vulcanizing mould, rubber and plastic.
This plate vulcanizing press can be using in petroleum industry to produce sealing parts.
Structural Features
1. plate vulcanizing press is composed of hot plates, plates, up and down platforms, piston stroke, hydro-cylinder, hydraulic station and electrical control system. It can be equipped with push-pull mould device to move the mould on the machine.
2. Plates are constituted with welded Q235 steel plates through mechanical ball blast rust removal, spraying zinc rich series paint, shake to remove stress, then transferred into mechanical producing.
3. Hot plates are obtained by 35# steel plates after normalizing handling and then adopting double scale rolling. It is equipped with a set of electric control valves to realize the automatic adjusting of steaming temperature.
4. Up and down platforms adopts Q235 steel plates. In order to guarantee the make precision, it is applied with automatic cutting baiting, mechanical slicer producing welded groove, carbon dioxide gas shielded welding. It all adopts alloy welding wire welding and after welding takes whole enter into stove to go on the hot treatment to remove the welding stress exhaustively.
5. Hydro-cylinder adopts ZG270-500 and piston stroke adopts hard cold chilled alloy cast iron. And sealing structure applies the combined structure with double sealing ring and one dustproof ring to guarantee longer service.
6. Electrical control system adopts PLC automatic control to realize automatic closing, opening mould and gas exit equipment. The plate vulcanizing press can also switch into hand control.

Parameter\Type	XLB-400×400	XLB-500×500	XLB-600×600	XLB-700×700	XLB-750×850
Total Pressure(MN)	0.5	0.63	1.00	1.20	1.60
Plate Distance(mm)	125	125	125	125	200
Working Layer NO.	1	1	1	1	1
Unit Area Pressure of Hot Plate(Mpa)	3.13	2.52	2.77	2.45	2.51
Plunger Stroke(mm)	250	250	250/400	250	400
Heating Mode	Electricity/ Stream	Electricity/ Stream	Electricity/ Stream	Stream	Electricity/ Stream
Motor Power(KW)	2.2	2.2	2.2	2.2	3
Size(L×W×H(mm)	1600×500×1480	1750×600×1540	1880×720×1680	2000×850×1750	2250×1200×2200

Company Profile Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is located in Kangting Road No. 1, Huangdao New District,Qingdao City.Who is a specializing in the production of rubber machinery of high and new technology backbone enterprises, the company passed the ISO9001:2015 quality management system certification, the European Union CE certification and Switzerland SGS certification.

Company's products mainly cover the following industry: tire manufacturing, rubber conveyor belt production, all kinds of rubber products, tires refurbished manufacturing, waste tire recycling.

The main equipment are: Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire crusher, Rubber Extruder, Rubber Strainer,etc.

Company's products are exported to Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine,Uzbekistan, Kazakhstan and so on,more than 50 countries and regions, has won the domestic and foreign customers praise and cooperation for years.Meanwhile,they also introduced new customers to cooperate.

Product quality and after-sales service is the key to survival of Qingdao Shun Cheong Machinery Co.,Ltd, and also are top priorities of management of the company, the company commitment to all customers as follows:

1. Every parts pass strict quality inspection before storage.

2. All the products overload trial running before shipment, such as Plate Vulcanizing Press,to test pressure for 24 hours under 1.25 times the rated working pressure. Rubber Mixing Mill, rubber mixing 20 minutes under 1.1 times amount of the rated mixing rubber etc.

3. The whole body of all products are with free technical support.

4. The warranty period of 3 years for main parts, wearing parts for 1 year warranty.

5. The products issues quality problems in the use process, first of all, our sales staff and engineers through the Internet or telephone guidance service, if not solve we will find a local agent or factory's engineer to door repair for the first time! In order to better serve customers, the company provides conveyor belt, waste tire recycling line and tire and other rubber products production site for customers to visit, consultation.
Certifications

Our Service

♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
♦ In the process of production, we will take photos and send to customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
♦ We supply overseas engineer service and help to train your workers to operate the machine.

FAQ

1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.
2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.
4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.
5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Jiaodong Airport. We will pick up you at the airport.
