Automatic Herbal Tea Bag Packaging Machinery (Model DXDCH-10D)

Product Description

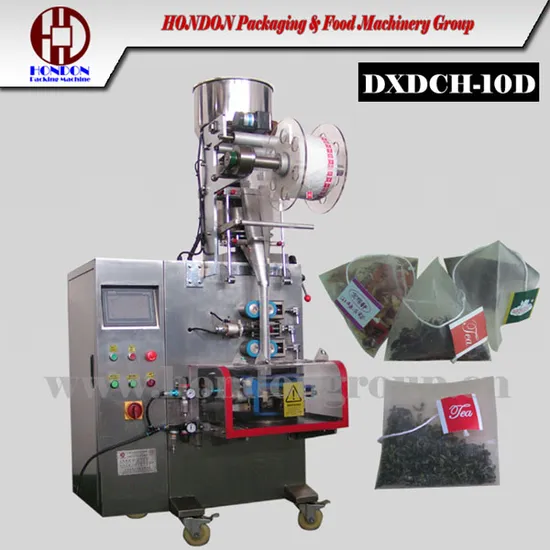

Model: DXDCH-10D Automatic herbal Tea Bag Packaging Machinery
Sample bags made by this nylon pyramid herbal Tea Bag Packaging Machinery
Application:
It is suitable for packing all kinds of teas, like herbal teas, green teas, flowers teas into the pyramid tea bags automatically and correctly.
We can use the electric weigh-er as the feeding and measuring way if you want to pack different teas by one
machine to make sure the accurate measurings for each kind of teas.
Following is the machine with the electric weigh-er as the feeding and measuring way nylpn pyramid tea bag packing machine for your reference. Technical Parameters

Brand HONDON	DXDCH-10D nylon pyramid bag
Pyramid Bag width	50-80mm
Flat bag width	(W) 60-90mm, (L) 40-80mm
Outer Bag Size	120mm, 140mm,160mm
Packing Speed	50 bags/min
Filling range	1.5-12g/20ml
Compressed air pressure	0.6Mpa
Air consumption	200L/min
Power Voltage	As your local power design

Suitable Packing Materials
The suitable packing materials for this silk nylon pyramidal tea bag packaging machinery(10D) is food degree nylon packing film.
Main features
1. All 304 SS Cover including every screw on the body of this packing machine.
2. CE, CM, GMP& SGS Certificates.
3. Oversized-touch screen PLC with computer controller.
4. Ultrasonic sealing way.
5. Continue running for at least 10 hours without any stopping.
6. Two shapes of the bag: One is pyramid one, another one is rectangular one.
7. You can change the shape of the bag via the computer controller automatically and comfortably.
8. Food degree packing films, like food degreen nylon, non-woven fabrics etc.
9. Intelligent tag mark tracing system assurd the complete of the bag made by this packing machine.
10. Full automatic.
11. Besides this single tea bag, we also have the doube tea bags: Inner nylon pyramid tea bag with cotton thread and tag and with outer envelop.
Working process
All the process of bag making, teas filling, measuring, sealing, cutting and counting etc...Can be done automatilly.
Specifica Features:
1. All stainless steel cover meets to GMP, CE, CM & SGS Standard.
2. The feeding way for this packing machine can be volume Cups or weigher, you can choose the feeding way according to the situation of you.
For example, if you want to pack only one or two kinds of teas, then volume cups is ok for you, but if you want to pack more than three kinds of teas, then the electric weigher is the best choice of you, as it is ok to weight any teas in very accurate grams.
3. The sealing way for this packing machine is Ultrasonic.
It tranfer the sound energy to motive energy to realize the sealing way which makes the seal side of the bag can hardly to be seen!
4. There are two shapes nylon bag this machine can pack, nylon pyramid tea bag and nylon rectangular tea bag.
You can adjust the shape of the bag via the computer controller automatically and correctly via the touch screen PLC Computer controller.
5. Equipped with intelligent photo eye tracing system which assured the complete pattern on the tag and assured the complete of the bag.
6. Equipped with dust-proof device.
7. All the process of bag making, filling, sealing, cutting & counting etc. Can be done automatically!
8.. All of our packing machine has a long life span, all of them can be used for more than 10 years.
Packing & Shipping
There are more information about the packing machines in our datebase, any further needed or confusion, pls. Confirm to contact with us, ok? You will be very welcomed and we will give you reply earlier!
Company Information Tianjin Hondon Packing & Food Machinery Group is a big manufacturer for producing all kinds of packing machines, like granules, powder,liquid, sticky liquid, sauce, tablets etc.
We had been in this filed for more than 28 years.
All of our packing machines have passed the SGS certificate authorized by Switzerland, and all of them have
gained the CE, CM, GMP & ISO9001:2008 Certificates. We had applied the patent for each packing machines and we are the member of the association of Pharmacy Industry in China.
All of our packing machines are widely used in Medicine, Food, Cosmetic, Chemical, Beverage, Vegetarian diet spices, Teas industries etic for the gruanules, powder, sauce, liquid, tablets's soft bags packings. All the process of bag formating, products filling, measuring, sealing, cutting and counting, date printing etc. can be done automatically and correctly.
Most of our packing machines make up the blank of our country in the packing machines field. All the packing machines will be inspected strictly via the quality inspecting department before shipping out of our factory.
All of our packing machine are very popular by the clients from domestic and overseas, lots of the machines had sold to America, Canada, Italy, Egypt,Turkey, Iran, Russia, Malaysia etc.
Operating honest, Guiding the Industries in packing field, Producing the bantique packing machines and Famous in all around the world are the goal of our company. We will supply some unstandard packing machine according to the clients requiremenets at the same time of producing standard packing machines.
Really hope we can establish a good and long business relationship with the clients from domest and overseas to bring out a good and prospecting future.
