Cement Qt5-15 Automatic Brick Making Machinery in Tanzania

Cement Qt5-15 Automatic Brick Making Machinery in Tanzania

US$27,600.00 1 Set (MOQ)

Basic Info.

Model NO.
QT5-15
Certification
CE, ISO, SGS
Customized
Non-Customized
Automatic Grade
Automatic
Type
Hydraulic Shock
Raw Material Use
Cement, Sand, Gravel
Steel
China Standard Steel
Mould
Heat-Treatment
Block Size
Based on Client Requirement
Brick Type
Hollow, Soild, Paving, Curbstone and So on
Automatic
Fully Automatic
Hydraulic
Hydraulic Pressure, More Density
Transport Package
Non Package
Specification
400*200*200mm
Trademark
Huatong brand
Origin
China
HS Code
84748090
Production Capacity
300sets Per Year

Product Description

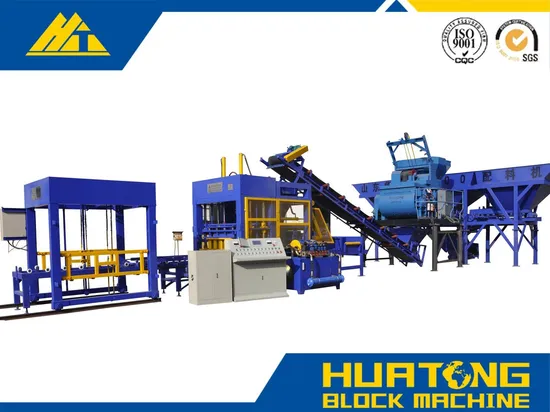

QT5-15 fully autoamtic brick making machine
Product Description
1.The Machine adopts four galvanized pipe with sleeve bearing to ensure the exact movement of mould.Concrete feeder adopts Orienting Way Operation that will decrease the friction with mould and realize perfect concrete feeding..
2.The Vibration System adopts German Frequency Conversion Technique.The vibration motor is Frequency Conversion Controlled.The lubrication of Vibrator adopts oil immersed,which improve the using life of Bearing and Gear of vibrator.
3.Moulding is by table vibration and hydraulic pressure.Wet blocks made by our machine has good density.Solid blocks can be taken off pallet and save pallet cost.
4.The Mould is made with heat treatments of quenching,tempering,carbonization and boriding.Working life of mould is improved.

5.The Electric Control System adopts Siemens PLC,Omron proximity sensors.
Product Parameters
Technical Specifications of QT5-15 Automatic Block Making Machine
Standard JC/T920-2003
Vibration Frenquency 4500 r/min
Vibration Pressure 70KN
Motors Specification
Vibration Motor(kw) 5.5x2
Hydraulic Motor(kw) 18.5
Concrete Feeder Motor(kw) 4.0
Belt Conveyor (kw) 2.2
Stacker Motor(kw) 1.5
Wet Block Conveyor Motor (kw) 1.5
Production/mould
Hollow block (390×190×190mm) 5 Pics/mould
Hollow block(245×115×90 mm) 16 Pics/mould
Solid Brick (245×115×53mm) 32 Pics/mould
Paver brick(200×100×60mm) 18 pieces/mould
Cycle Time 15-25seconds
Production/day(8hours)
Hollow block(390×190×190 mm) 5800-6300 Pics
Hollow block (245×115×90 mm) 18500-20000Pics
Solid brick (240×115×53mm) 45000-57000Pics
Paver brick (200×100×60 mm) 21000-23000Pics
Motor Power 38.7KW
Water Consumption 5-9T
Number of workers 6-10worker
Space of Ground 3600 square meters
Gross Weight 10T
Machine Dimension 3000x1900x2930mm
Pallet size 1150×580×25mm
Main materials Cement,crushed stone dust,gravel,sand,coal fly ash,iron/aluminium dust,crushed cinder and some industrial wastes
Products of machine Hollow blocks,Solid bricks,Pavers,Kurbstones,Slope blocks,slabs, interlock bricks and so on.


Production Capacity:
Block Type Picture Size(L x W x H) PCS./Pallet PCS./Hour PCS./8 Hours
Hollow Block 400x200x200mm 5 780 6250
Hollow Block 400x150x200mm 6 940 7520
Hourdi Block 530x160x195mm 6 940 7520
Stock Brick 220x105x70mm 24 5400 43200
Paving Block 200x100x60mm 20 3170 25360
Paving Block 225x112.5x60mm 16 2300 18400
We produce mould according to size and shape of client's block.

Block sample:
Company Profile
Shandong Gaotang Huatong Hydraulic Machinery Co., Ltd. is located in Renhe Industrial Park, Gaotang County, Shandong Province. It is one of the large manufacturers specializing in the production of non-burning brick machines.
Our company was founded in 2004. After more than ten years of development, from an annual output of more than a dozen small brick machines to an annual output of hundreds of large brick machine production lines, Huatong now covers an area of 65000 square meters and a construction area of 19000 square meters. It has modern production workshops and office facilities, complete machine tools, heat treatment, rust removal and shot blasting equipment, and welding equipment, and has gathered a large number of senior technical and management personnel. There are 4 senior engineers, there are 8 engineers, more than 60 talents with college education or above, and more than 600 technicians of various types.
Befor sale service:
1,We will supply the block making machine specification.
2,Show how to operate the machine.
3,Could supply the block samples disign drawing.
4,Tell our customer the international business operation procedure.
5,24h E-mail and call service.
Packaging & Shipping
After Sales Service

1,Our technician is available to overseas service,guide installation and help training the workers.
2,24h E-mail and call service.
3,One year guarantee time.
Different countries customers work site:
ISO certificate:
Specifications of JS500 Concrete Mixer:
Charging Capacity (L) 800 Discharging Capacity(L) 500
Maximum Production(m3/h) 25 Aggregate Maxi Diameter(mm) 80mm
Mixing Blade Speed(r/min) 35 Mixing Motor(kw) 18.5
Quantity 27 Hoist Motor(kw) 5.5
Water Pump Motor(kw) 0.75 Discharging Mode Manual/
Pneumatic
Discharging Height(m) 1.5/2.7/3.8 Weight (kg) 4000
Transport Dimension 3030x2300x2680 Working Dimension (mm) 4486x3030x5280

We warmly welcome your enquiry,asking any questions,we will do our best to buy the best quality machine with lower price.
