High Quality X5032 Milling Machine 3 Axis Vertical Milling Metal Knee Type Universal Milling Machine for Sale

Product Description

Product Description

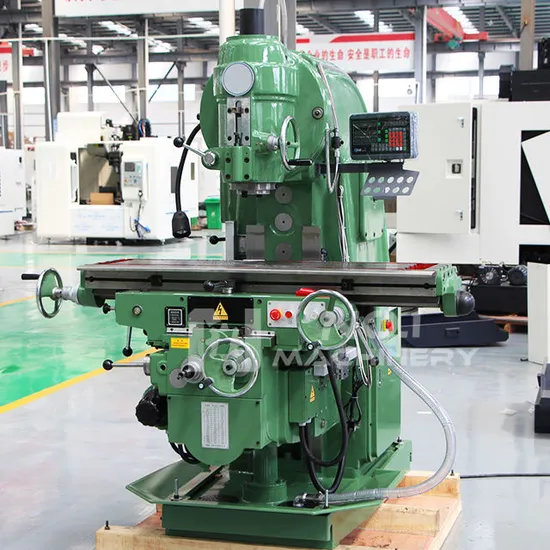

Vertical milling machine is a kind of universal metal cutting machine. The spindle cone hole of the machine can be directly or through the accessories to install a variety of cylindrical milling cutter, form milling cutter, face milling cutter, Angle milling cutter and other tools.The machine has a worktable that can move in the horizontal X and Y directions, allowing precise positioning of the workpiece. It is widely used in machining tasks. It can efficiently process flat surfaces, grooves, and some simple gear teeth. It offers high precision in processing small and medium-sized parts.
Specification

Name	Unit	X5032	X5036
Table size	mm	1500*320	1500*360
Table travel	mm	1000*320*400	1000*360*400
Workbench maximum overload	kg	200	300
X direction (table longitudinal)manual /Auto	mm	1000	1000
Y direction (slide lateral)manual /Auto	mm	320	360
Z direction (lifting table vertical)manual /Auto	mm	380	400
Fast moving speed	mm/min	15-370	15-370
Spindle aperture	mm	29	29
Spindle speed range	rpm	40-1300	60-1700
Spindle speed series	steps	18	12
Maximum rotation angle of end mill head	°	±45	±45
Spindle center to table distance	mm	60-430	80-440
Spindle motor power	kw	4	4/5.5
Dimensions	mm	2294*1770*1904	1700*1680*1880
Machine weigh (about)	kg	1800	2200/2400
