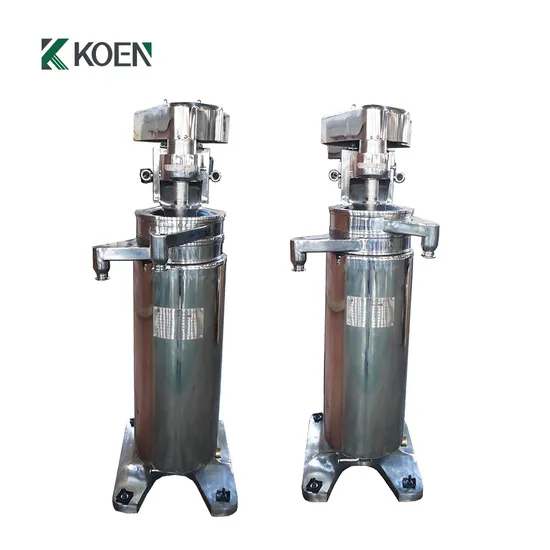

Automatic Continuous Tubular Centrifuge High Speed Vco Machine Turbine Oil Centrifuge

Product Description

Product Description Automatic Continuous Tubular Centrifuge High Speed VCO Machine Turbine Oil Centrifuge The separator consists of machine body, driving part ,bowl, liquid collecting pan and liquid-in bearing seat etc. The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifugal force. GF-for separation: Heavy liquid forms outer ring and light liquid forms inner ring. They flow to the top of the bowl and discharge from their respective outlet. And the little solid is settled on the wall of the bowl and discharged manually after the machine stops.
Application
Detailed Photos Product Parameters

Model	GF75	GF105	GF125
Drum Diameter	75mm	105mm	125mm
Rotating Speed of Drum	19000rpm	16300rpm	15000rpm
Centrifugal force	15200G	15620G	15700G
Capacity	600L/H	1200L/H	1500L/H
Motor	1.5kw	2.2KW	3.0KW
Weight	300kg	500kg	550kg
Dimension	760*450*1120mm	840*500*1600mm	900*550*1600mm

Company Profile Liaoning Koen Machinery Co.,Ltd ,We are the professional manufacturer of centrifuge machinery, separation equipment over 30 years,we have 4 factory which located in Shanghai , Jinhua ,Yixing and Liaoyang city . Our president was designed and manufactured China First Tubular Centrifuge .Our factory covers an area of 58, 700 square meters, including 38, 600 square meters of workshop area, 4, 000 square meters of office building and 2100 square meters of science and technology building. The company has been committed to the production of domestic advanced disc and decanter centrifuges, with an annual output of 4000 sets of production capacity. The company also specializing in provide with the whole set of technology and equipment. we have professional technology team to design, research and development for customer according to customer's requirements, and have high standard production process control. Our international trade department can supply the whole project service. Our aim is providing you efficiently solution and superior after-service. We have overseas after-sales service department in Taiwan ,Russia ,Korea ,USA,Thailand,Malaysia and Indonesia . We sincerely hope YOU are our next customers! Exported country:At present, our products have been exported to the United States, Belgium, Canada, Australia, Greece, Bolivia, Peru, Saint Lucia, Israel, Malaysia, Indonesia, Philippines, Sri Lanka, Vietnam, South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, Spain, Japan, Colombia, Romania and so on more than 30 countries.

Packaging & Shipping
FAQ Q1.What's your advantage? Why we choose you?A:1) More than 50 years experience of centrifuge & separator production and R&D.We have the most professional techniques and team. More advantage in price.2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.3)We use Internationally renowned brand Inverter and PLC . Good quality materials and the best production processQ2.What's the Payment?A: T/T, Western Union, L/C, Ali Pay, etcQ3.Are you a factory or trading company?A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.Q4.How long is the warranty period ?A:18 months after install .
