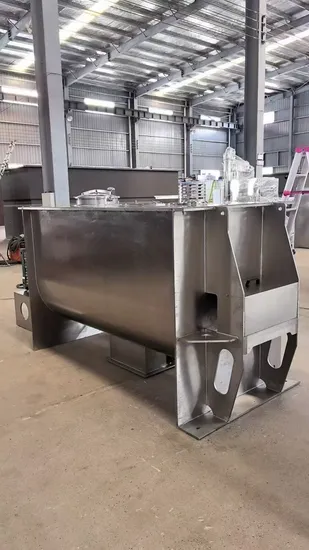

Horizontal Ribbon Blender (mechinery equipment for mixing materials)

Product Description

Horizontal ribbon blender (mechinery equipment for mixing materials)
1, Product Introduction
1). Parameters of a UNDH horizontal screw belt mixer to configure. Quotation Equipment design and manufacturing features.
2. Specification and model: UNDH-1000L, effective volume: 600L, loading factor: 0.6, calculated based on bulk density The bulk density of each batch of mixed material is 0.42.
3. Equipment welding Polishing The selection of accessories and craftsmanship meet the requirements of food Drug production and manufacturing requirements meet FDA standards.
4. The feeding method of the equipment adopts the fully open top cover pouring mode, and the top cover is closed after feeding The upper cover adopts pneumatic support spring rods on both sides for opening and closing, which is convenient for increasing the opening angle and loading, and easier for cleaning.
5. The sealing between the upper cover and the cylinder is made of food grade silicone sealing ring, which is elastic and has excellent sealing performance when the upper cover is closed. There is no dust during the production process.
6. The upper cover is equipped with an exhaust hole with a diameter of 150-200mm, and the exhaust hole has a filtering device When mixing materials, the air circulates to the outside and the powder does not flow out.
7. The motor adopts (Jiangyin Dazhong) to achieve IE2 efficiency level, and is equipped with an independent electric control box. The mixing time of each batch of materials is controllable.
8. The device is capable of both forward and reverse rotation Easy to mix and stir more evenly.
9. Power system
Electric motor: 4-stage motor voltage 380V50HZ
Reducer: Adopting cycloidal pinwheel reducer with stable performance Compact structure, motor Gearbox connection method: direct connection.10. Main shaft sealing system
Food/drug/chemical grade spindle seals are quite important Our company's main shaft sealing method is air seal+packing seal. The air filter and pressure regulator of the air seal device can be used by customers by directly inserting the air pipe joint. The packing seal uses special food grade silicone packing.
11. Electrical and control systems
Equipped with an independent electric control box, the main component of the electric control box is Delixi, and the mixing time/mixing forward and reverse can be randomly set, with simple operation Convenient Safe Reliable.
Main technical parameters:

name	unit	Model/Unit	quantity	Manufacturer	remarks
Hybrid motor	set	11KW	1	Large and medium-sized motors	Three phase 380V/50HZ
Hybrid gearbox	set	K-97	1	Shanghai Sailan	Gear reducer
Mixing bucket/thickness	set	5mm	1	Zhangpu	316L stainless steel
Cover board/thickness	set	2.0mm	2	Zhangpu	316L stainless steel
Hybrid spindle	Piece	Φ102×6mm	1	jiangsu	316L stainless steel
Mixing paddle	set	10mm	1	jiangsu	316L stainless steel
Discharge method	set	on drawing	1	jiangsu	Pneumatic flap valve
External dimensions	set	/	1	jiangsu	Length 3200, Width 1200, Height 1600
speed	set	46 revolutions per minute	1	jiangsu	/
Equipment weight	set	1760kg	1	jiangsu
throughput	set	600Kg/time	1	jiangsu	Maximum mixing capacity 600kg per time
Spindle/Bearing	Piece	6210	2	Japan	UCP
Main shaft/seal	Piece	PTFE packing	2	Outsourcing	Packing seal+airtight seal
an electric appliance	set	Supporting facilities	1	Outsourcing	chint
