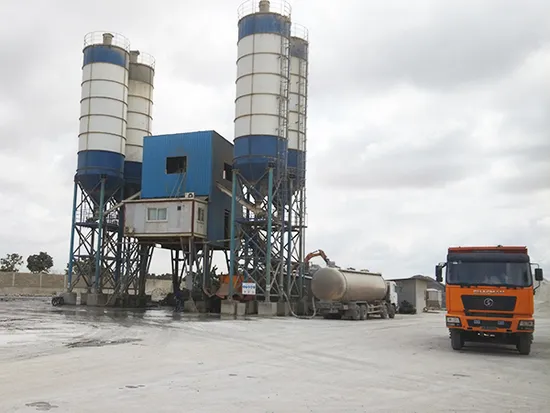

China Hunan Made Zoomlion Hzs200 200m3/H Mixing Plant

Product Description

Product Description
Zoomlion concrete batching plants' production capacity ranges from 60m³/h to 300m³/h. Tailor-made design can be provided to customers in accordance with regulations and requirements of different countries and regions. The product types include project concrete batching plant, container concrete batching plant, environmental friendly concrete batching plant, etc. With its high efficiency, reliability, intelligence, fineness and green technology, Zoomlion concrete batching plant is trusted and favored by customers around the world.
Product Parameters

Model	HZS200
Theoretical Output Capacity (m³/h)	200
Discharge Height (m)	≥4
Mixer	JS3300
Theoretical Production Periods (s)	60
Aggregate Storage (m³)	4×25
Max. Weighing Value of Slant Belt Conveyor (kg)	900
The Conveying Capacity of Screw Conveyor (t/h)	90
Total Installed Power (kW) for Reference	240
Max. Batching Value and Accuracy of Aggregate (kg)	3960±2%
Max. Batching Value and Accuracy of Cement (kg)	1650±1%
Max. Batching Value and Accuracy of Powder Admixtures (kg)	660±1%
Max. Batching Value and Accuracy of Water (kg)	670±1%
Max. Batching Value and Accuracy of Liquid Additive (kg)	66±1%

Every year, we regularly attend the Canton Fair, the Philippines, Indonesia, Russia and other construction machinery and building machinery exhibitions.We have received more than 1000 clients and training engineers from more than 100 countries around the world.
We have already exported our products to more than 80 countries and regions, including: Africa, the Middle East, South America, Central Asia, Russia, Mexico, Australia, New Zealand, Holland, British, Mongolia and so on.
After Sales Service
we are famous building machinery manufacturer, professional construction machinery exporter and one stop solution supplier in China, our team have more than 15 years experience in this field already.
(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
(2)Spare parts:CANMAX is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance:CANMAX is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training:CANMAX offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: CANMAX can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
FAQ
Which countries do you export to?
Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia,UAE, Oman,Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, etc. South America: Brazil, Peru, Chile, Cuba, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.
What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.

What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.

What spare parts can you supply?
All kinds of spare parts of SHANTUI, ZOOMLION, SINOTRUCK, SHACMAN, LIUGONG, SAN Y, SDL G, LONKING, XGMA, CUMMIN S ENGINE, GEAR BOX, etc.
