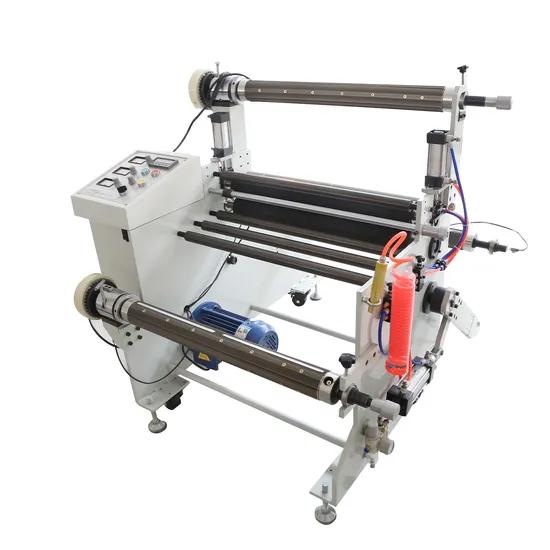

Auto Laminating Machine for Roll Material (DP-650)

Product Description

Auto Laminating Machine for Roll Material
Summarize
The machine is used for materials laminating, it can automatically count, setting length, stop, the whole machine frequency stepless speed regulation, magnetic particle clutch, Brake constant torque tension control, Traction, Rewinding pneumatic locking, Rapid loading and unloading etc. High precision, easy operation, it is Electronic insulation manufacturing plant supporting one of the necessary equipment.
Main data and technical specifications
2.1 Max feeding roll length: 420MM/650MM
2.2 Max rewinding / winding diameter 450MM
2.3 Laminating speed 80M/Min
2.4 Laminating precise ± 0.2MM
2.5 Main Motor 0.75KW
Operation board explanation
Power: Plugging in the outlet, Start the power
Stop: Used for machine stop working mode.
Speed governing: Control the motor speed, knob to the right rotation, the motor speed will be higher.
Start: Used for machine start working.
Crawl: For machine start feeding material, feeding stop when hand off.
6. Meter-counting: The controller adopted Perimeter calculation method to calculate the length, the hall switch producing each pulse signal, the controller add one step value. The step value is different as the machine installation different, to increase the precise, require the step value the shorter the better, as shown in note 3, the four sensor points installed on the roller end, So that the drum circumference equal portions to shorten the stop length.

max feeding width (mm)	main engineer power (kw)	speed (m/min)	size (mm)
650	3	60	1400*1200*1300mm
Feeding diameter (mm)	Rewinding diameter (mm)	presicion (mm)	power (v)
500	450	±0.1	1 phase 220V 60HZ

can customize as below :
