Precision Automated CNC Milling Turning Lathe with A2-6 Spindle for All Types of Metals

Product Description

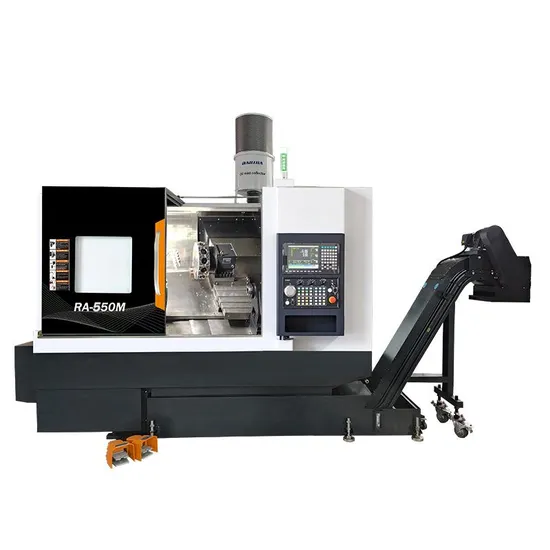

Precision Metal Slant Bed CNC Turning Milling Lathe Machine Center
Product Description

Processing Capability			Unit	RA-508M
Processing Capability	Maximum bed swivel diameter		mm	Φ550
	Maximum machining diameter		mm	Φ330
	Maximum machining diameter on the tool holder		mm	Φ230
	Maximum processing length		mm	470
	Maximum bar through-hole diameter		mm	Φ52
Machining dimensions will change with turret selection.
Spindle	Nose of spindle		ASA	A2-6
	Spindle through-hole diameter		mm	Φ65
	Maximum spindle speed		rpm	4000
	Hydraulic cylinders/chucks		Inch	8''
Axis feed	Axis travel	X-Axis	mm	220
		Z-Axis	mm	550
	Travel Speed	X-Axis	mm	24
		Z-Axis	mm	24
	Rail Type		/	Linear track 45 (ball)
Turret	Number of tool positions		pcs	BMT55-12T
	OD tool holder specifications		mm	25x25
	I.D. Tool Holder Specifications		mm	Φ40
Tailstock	Hard rail as standard		/	Hydraulic Programmable
	Maximum travel of tailstock rail		mm	550
	Tailstock Sleeve Taper		mm	Morse #5
	Tailstock Sleeve Diameter		mm	Φ80
	Tailstock sleeve travel		mm	100

Optional accessories:

Oil-water separator

Oil Mist Absorber

Fully automatic feeding machine

Electric cabinet air conditioner

Rotatable window

Workpiece probes

High pressure water pumps

Chip conveyor

Tool setting arm

Detailed Photos
Control System
Anoher Advantages
• Experience unparalleled processing conditions in a cutting-edge production environment, meticulously designed to deliver optimal performance and exceptional outcomes. Our state-of-the-art facility ensures your projects benefit from the most advanced capabilities available, setting new standards in quality and efficiency.
Our cutting-edge imported equipment, featuring horizontal and vertical machining centers, CNC boring machines with rotating tables, and gantry guideway grinding machines, guarantees exceptional workpiece precision. This precision significantly elevates assembly accuracy while extending performance longevity. Experience the pinnacle of innovation with tools designed to meet the highest industry standards.
• State-of-the-Art Detection Methods
Positioning accuracy is meticulously tested and precisely calibrated using sophisticated laser technology, adhering to the rigorous German VDI3411 inspection standards (5 tests per standard). Our precision verification processes ensure that every machine operates flawlessly, exceeding expectations for performance and reliability.
Each machine tool undergoes rigorous processing tests before leaving our factory, ensuring that they not only meet but consistently exceed real-world processing accuracy standards. This commitment to excellence guarantees that you receive tools that perform impeccably right out of the box.
Product sample
• Discover unparalleled efficiency with our Automated 4-Axis CNC Drilling Milling Center, where cutting-edge milling, drilling, and tapping functionalities come together seamlessly. This advanced vertical machine revolutionizes productivity and precision, optimizing every facet of your production process with groundbreaking technology.
• Achieve mastery in precision with our CNC machine, skillfully designed to handle a wide variety of materials, including aluminum, steel, copper, and even non-metal profiles. Attain superior craftsmanship and meticulous detail in every project, ensuring your output is nothing short of exceptional.
• Advance your production capabilities across a multitude of industries, from 3C electronics and rail transportation to aerospace and linear module guide rails, with our versatile CNC machining solutions. Our innovative technology guarantees unmatched versatility and performance, empowering you to tackle diverse challenges with confidence.
Packaging & Shipping
•Highly Protective: Our packaging solutions are precisely engineered to ensure that the Vertical CNC Drilling Machine Center remains safe and secure throughout its journey. With robust protection, we safeguard against any potential damage, guaranteeing peace of mind and product integrity during transit.
•Structural Stability: Our packaging is expertly designed to maintain the machine's structural integrity. Each component is securely protected, ensuring that the machine arrives in flawless condition and is ready for immediate, hassle-free operation, preserving its optimal performance.
•Environmentally Friendly and Recyclable: Committed to sustainability, we use packaging materials that are both durable and eco-friendly. Our fully recyclable solutions reduce environmental impact, harmonizing robust protection with responsible stewardship of our planet, ensuring that your choices support a greener future.
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments with a 40% initial deposit required upon ordering and the remaining 60% balance due before shipment.
2. What are your trade terms?
A: Our trade terms include FOB, CFR, and CIF, offering you the flexibility to choose what suits you best.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we can have your order ready within 30 days. Custom or special machines might require additional time. Please place your order according to our provided delivery schedule.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, and we proudly offer a comprehensive one-year warranty.
5. How are the machines packaged?
A: Each machine is meticulously packed in a sturdy wooden case to ensure it reaches you in perfect condition.
6. How can I choose the most suitable machines?
A: Simply provide us with your specifications, and we will recommend the most suitable model for your needs. You also have the option to select the exact model yourself.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for you.
