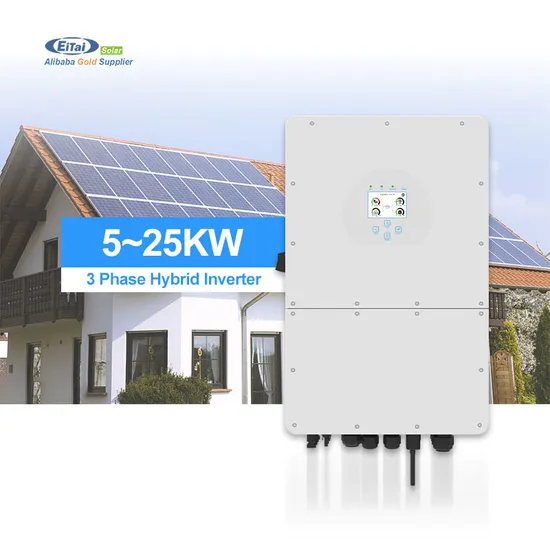

Deye MPPT 10kw 12kw 15kw 20kw 25kw Solar Hybrid Inverter
Basic Info.
Model NO.
SUN-5/6/8/10/12/15/20K-SG01HP3-EU-AM2
Nature of Source Flow
Active Inverter
Phase
Three
Output Power
>1000W
Certification
CE, IEC
Brand
Deye
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Push-pull Type
Nature of Wave String
Sine Wave Inverter
Battery Type
Lead-Acid or Lithium-Ion
Battery Voltage Range (V)
160-700V
Charging Strategy for Li-Lon Battery
Self-Adaption to BMS
Max DC Input Power(W)
6500W-32500W
Max DC Input Voltage (V)
1000V
Start-up Voltage (V)
180V
MPPT Range (V)
150-850V
Rated DC Input Voltage (V)
600V
No.of Mpp Trackers
2
Rated AC Output and UPS Power (W)
5000W-25000W
Max. AC Output Power (W)
5500W-27500W
Output Frequency and Voltage
50/60Hz;3L/N/PE;220/380V;230/400V
Grid Type
Three Phase
Max Effciency
97.60%
Euro Effciency
97.00%
Transport Package
Wooden Box / Carton Packing
Specification
408x638x237mm
Trademark
DEYE
Origin
China
HS Code
8543709990
Production Capacity
10000units/Day
Product Description
Product DescriptionProduct Parameters
| Model | SUN-5K-SG01HP3-EU-AM2 | SUN-6K-SG01HP3-EU-AM2 | SUN-8K-SG01HP3-EU-AM2 | SUN-10K-SG01HP3-EU-AM2 | SUN-12K-SG01HP3-EU-AM2 | SUN-15K-SG01HP3-EU-AM2 | SUN-20K-SG01HP3-EU-AM2 | SUN-25K-SG01HP3-EU-AM2 |
| Battery Input Data | ||||||||
| Battery Type | Lithium-ion | |||||||
| Battery Voltage Range (V) | 160~700 | |||||||
| Max. Charging Current (A) | 30 | 37 | 50 | |||||
| Max. Discharging Current (A) | 30 | 37 | 50 | |||||
| Number of Battery Input | 1 | |||||||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||||
| PV String Input Data | ||||||||
| Max. DC Input Power (W) | 6500 | 7800 | 10400 | 13000 | 15600 | 19500 | 26000 | 32500 |
| Max. DC Input Voltage (V) | 1000 | |||||||
| Start-up Voltage (V) | 180 | |||||||
| MPPT Range (V) | 150-850 | |||||||
| Full Load DC Voltage Range (V) | 195-850 | 340-850 | 325-850 | 340-850 | 420-850 | 500-850 | 625-850 | |
| Rated DC Input Voltage (V) | 600 | |||||||
| PV Input Current (A) | 20+20 | 26+20 | 26+26 | |||||
| Max. PV Isc (A) | 30+30 | 39+30 | 39+39 | |||||
| No.of MPP Trackers | 2 | |||||||
| No.of Strings per MPP Tracker | 1+1 | 2+1 | 2+2 | |||||
| AC Output Data | ||||||||
| Rated AC Output and UPS Power (W) | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | 20000 | 25000 |
| Max. AC Output Power (W) | 5500 | 6600 | 8800 | 11000 | 13200 | 16500 | 22000 | 27500 |
| AC Output Rated Current (A) | 7.6/7.3 | 9.1/8.7 | 12.2/11.6 | 15.2/14.5 | 18.2/17.4 | 22.8/21.8 | 30.4/29 | 37.9/36.3 |
| Max. AC Output Rated Current (A) | 8.4/8 | 10/9.6 | 13.4/12.8 | 16.7/16 | 20/19.2 | 25/24 | 33.4/31.9 | 41.7/39.9 |
| Max. Three-phase Unbalanced Output Current(A) | 13 | 13 | 18 | 22 | 25 | 30 | 35 | 41.7 |
| Max. Continuous AC Passthrough (A) | 40 | 80 | ||||||
| Peak Power (off grid) | 1.5 time of rated power, 10 S | |||||||
| Power Factor | 0.8 leading to 0.8 lagging | |||||||
| Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380, 230/400Vac | |||||||
| Grid Type | Three Phase | |||||||
| Total Harmonic Distortion (THD) | <3% (of nominal power) | |||||||
| DC Current Injection | <0.5% In | |||||||
| Efficiency | ||||||||
| Max. Efficiency | 97.60% | |||||||
| Euro Efficiency | 97.00% | |||||||
| MPPT Efficiency | 99.90% | |||||||
| Protection | ||||||||
| Integrated | Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,Output Shorted Protection, Surge Protection | |||||||
| Over Voltage Category | DC Type II/AC Type III | |||||||
| Certififications and Standards | ||||||||
| Grid Regulation | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 | |||||||
| Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||||
| General Data | ||||||||
| Operating Temperature Range (ºC) | -40-60ºC, >45ºC Derating | |||||||
| Cooling | Smart Cooling | |||||||
| Noise (dB) | ≤55 dB | |||||||
| Communication with BMS | RS485; CAN | |||||||
| Weight (kg) | 30.5 | |||||||
| Cabinet Size (WxHxD mm) | 408×638×237 (Excluding Connectors and Brackets) | |||||||
| Protection Degree | IP65 | |||||||
| Installation Style | Wall-mounted | |||||||
| Warranty | 5 Years (10 Years Optional) | |||||||
