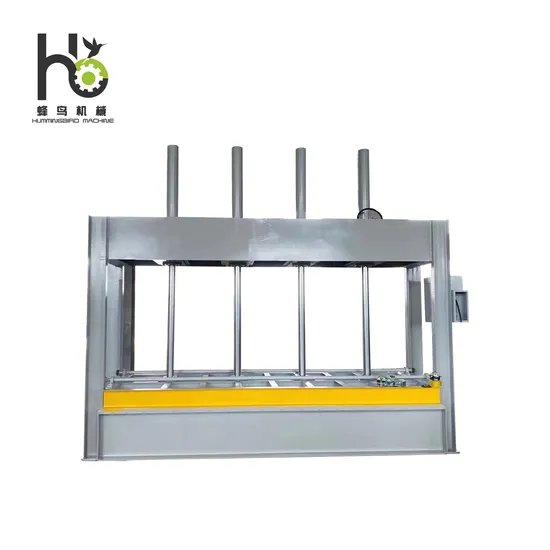

Cold Press Machine for Plywood Blockboard and Veneer Pressing

Product Description

Small Cold Press features an automated and user-friendly control panel, designed for effortless operation by a single person, significantly reducing labor costs. It is built with high-quality, well-known electronic components, ensuring reliable performance and long-term durability. The hydraulic balance system enhances the machine's functionality, delivering smooth, stable, and efficient movements. Additionally, the advanced heating system, equipped with high-performance heating pipes, ensures fast and uniform heat conduction across every layer for consistent and optimal results.
Company Profile
Shandong hummingbird Machinery Co., LTD, located in Linyi city, Shandong province, has more than 20 years of experience in machinery production and improvement.The company established Hummingbird International Trading Company in order to expand the international market. After several years of efforts, the company's main products and equipment have been exported to Southeast Asia, the Middle East, South America, Africa and other markets.Looking forward to working with you to create, share the future!

Product Parameters

Model	HBLY-650	HBLY-660	HBLY-6100	HBLY-6120
Nominal gross pressure	50T	60T	100T	120T
Direction of feeding plate	Transverse	Transverse	Transverse	Transverse
Dimension of platens	1250x3000mm	1250x2500mm	1250x3000mm	1370x2700mm
Opening distance	1000mm	1300mm	1000mm	1000mm
Numbers of cylinder	2pcs	2pcs	2pcs	2pcs
Diameter of cylinder	ф100 mm	ф90mm	ф160mm	ф180mm
Pump	12L	24L	12L	12L
Pump working pressure	16.5mp	16.5mp	16.5mp	16.5mp
Motor power	4kw	5.5kw	4kw	4kw
Overall dimensions	3450*1250*2250 mm	2950*1250*2450 mm	3450*1250*2250 mm	3450*1250*2250 mm
Machine weight	2T	2.5T	2.5T	2.5T
Thickness of upper and lower cross beams	380mm	550mm	550mm	550mm

Applied Widely

Detail Accessories
Easy and convenient controlpanel for operation.
Best brand Hydraulic Station,providingreliable hydraulic force.
Precision platen working tableflat without defect.
Thick steel sheet and tough machinebodystable and durable.
Features
1.The control panel is automated and easy to operate. lt can be operated by one person and saves labor costs.2.Well-known electronic components are more stable and can be used for a long time3.Hydraulic balance device. make the machine movement more stable and quickly.4.Heating system,heating pipe,fast heat conduction to each layer.

Case Cooperate
