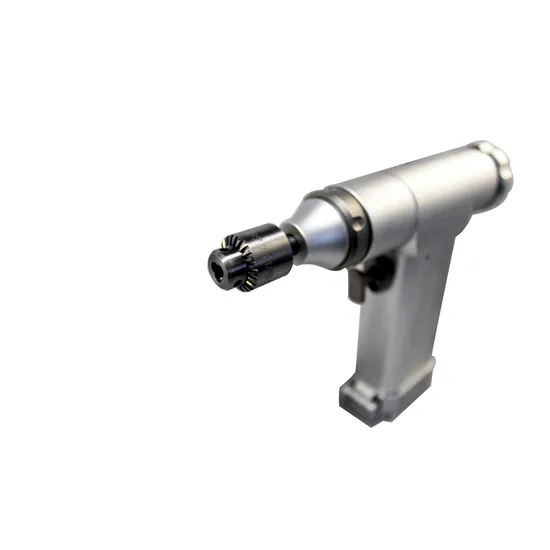

Ruijin ND-5002 Veterinary Instruments Hand Surgery Orthopedic Drill

Product Description

Ruijin ND-5002 veterinary Instruments Hand Surgery Orthopedic Drill
I: Autoclavable type and apply for the small animals.
Ii: Professional drill and saw manufacturer
Iii: Discretionary speed control
Iv: Practical and most-effective
V: Two batteries offered
1.Technical Data

Charger Input Voltage	AC 220V, 50Hz
Charger Input Power	30VA
Charger Output Power	14.4V, 900mA
Hand Piece Working Voltage	7.2V
Hand Piece Output Power	20W
Hand Piece Unit rise in temperature	≤25ºC
Charger Input Power	AC 220V, 50Hz
Charger Output Power	7.2V, 700mA
Charger Input Power	30VA
Battery Charging time	3 hours
Non-loaded speed	18000r/min
Non-loaded noise	75dB(A)
Radial run-out	0.5mm

2. Product Technical Merits Axial run-out of concentricity is within 0.05mm Rotating speed of 1100 rpm is more suited to the domestic medical standard for the operation power Rotated torque 3.3N/m Supporting the interface of the brand products Innovated battery, longer working time. Quick chuck design, better extensibility. Multipurpose interface is easier to use in clinic Ni-MH battery without memory environment
3. Product Display
Standard Configuration
- One handpiece
- One charger
- Two batteries
- One sterilizing channel
- One drill chuck
- One aluminum alloy box
4. Certificate
5. About Us
Wuhu Ruijin Medical Instrument & Device Co., Ltd.
Wuhu Ruijin Medical Instrument & Device Co., Ltd., established in 2007 and locates in Wuhu City, Anhui Province, China. We are a medical device manufacturer integrated with R&D, production and sales, focusing on medical drill series and micro medical electric drill series. Our main products include medical bone drill, multi-functional cannulated drill, oscillating saw, reciprocating saw, and medical electric plaster saw, which can be used in many surgeries such as Trauma Surgery, Thoracic Surgery, Joint Operation and Veterinary Orthopedic Surgery, etc.
Visiting our website: whruijin.en.made-in-china.com
6. Payment & Delivery
1: Price: FOB USD 450-500 / Set, Shanghai Port
2: MOQ: 1 piece
3: Payment Terms: T/T in advance or western union
4: Delivery Time: Within 3 days after payment
7.Ordering Process
8. Attention & Notes

1. The device is forbidden to be demolished by non-professionals. If any problem, please contact with us for after sales service.

2. Our products are chargeable, it can match for electricity source 110V60Hz-220V/50Hz.

3. The battery needs to be taken out of the machine's mobile phone, otherwise a small automatic discharge will shorten the battery life.

4.The battery cannot be disinfected. The battery space should be dry after sterilization.

5. Saw blade, the drill bit is cleaned with a purifier and kept dry after operation

6. The sterilization temperature is lower than 135 degrees Celsius. If it exceeds 135 degrees Celsius, the motor will be damaged.

7.Professional manufacturer with 24 hours online service , warranty offered, CE marked.
