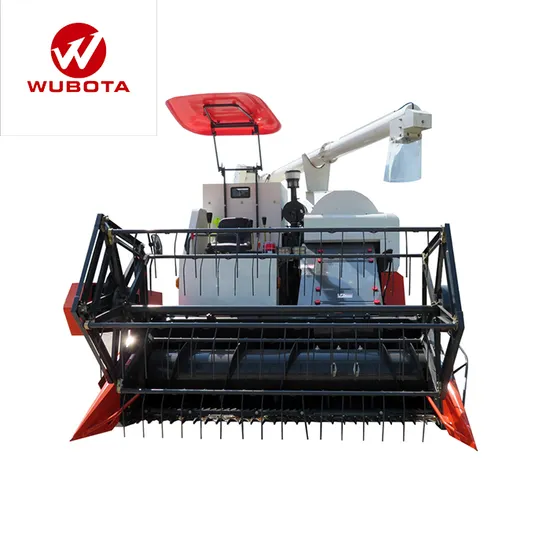

Wubota Machinery Agriculture Farm Use Paddy Rice Combine Harvester

Product Description

Wubota Machinery Agriculture Farm Use Paddy Rice Combine Harvester Harvesting Machine

Welcome.

Product Parameters

No.	Item		Unit	Upgraded 4LZ-4.5 Specification
1	Model		/	4LZ-4.5
2	Sturcture Type		/	Vertical Axis Flow Full Feeding Rubber Crawler Self-propelled
3	Engine	Type	/	4-Cylinder,Vertical Engine,Water Cooled, DI-Injection, Turbocharged Engine
		Rated Power	kW	65
		Rotating Speed	r/min	2400
4	Dimension(L*W*H):	Working State	mm	4850*3200*2500
		Transportation	mm	4850*2735*2500
5	Weight		kg	3000
6	Cutting Width		mm	2180
7	Feeding Capacity		kg/s	4.5
8	Minimum Ground Clearance		mm	310
9	Operation Speed		km/h	1.8 to 5.3
10	Productivity		hm2/h	0.25 to 0.65
11	Fuel Consumption		kg/hm2	18.5 to 40
12	Cutter Type		/	Standard Type II
13	Cutting Header Auger Type		/	Telescopic Transverse Conveyor Auger
14	Reel	Type	/	Eccentric Tooth(off center)
		Diameter	mm	∮1000
		Quantity	pc	5
15	Threshing Roller	Quantity	pc	1
		Type	/	Vertical Axis Flow Spike Tooth
		External(D*L)	mm	∮655*1877
16	Concave Sieve Type		/	Grid
17	Brake Type		/	Wet Friction Plate
18	Fan	Type	/	Centrifugal
		Diameter	mm	∮346
		Quantity	pc	1
19	Rubber Crawler	Size	/	450mm*90mm*56
		Track Gauge	mm	1190
20	Gear Box		/	Hydraulic Stepless Speed Transmission(HST)
21	Rethresher Type		/	Auger Spike Tooth
22	Grain Unloading Type		/	Hydraulic Rate

Product Details

Our Advantages
Application

Packaging & Shipping

FAQ:

1. Q: What is the warranty of your agricultural machines?
A: 1 year guarantee for whole machine ( except quick-wear parts ), engine and gear box.

2. Q: Are there any optional parts for your combine harvesters ?
A: Yes, optional parts such as rubber track size, grain tank and type of grain unloading.

3. Q: How long is your delivery time ?
A: Normally it takes 15-20 days to deliver after your deposit receipt or L/C at sight.

4. Q: How many harvesters can be loaded in one container ?
A: (1) 20 Feet Container loads:

For combine harvester:

1 set 4LZ-4.0/4.5
For Power Tiller: 18 sets GN12; 20 sets M80
For Spare Parts: 15-18 tons

(2) 40 High Cube Container Loads:

For Combine Harvester:

3 sets 4LZ-4.0/4.5
For Power Tiller: 40 sets GN12; 50 sets M80
For Spare Parts: 30-35 tons

5. Q: What is the payment term ?
A: Irrevocable L/C at sight or 30% T/T in advance and balance against B/L copy.

6. Q: What is the after-sales service ?
A: Every year we send our engineer and after-service people to local market to assist our sales agent for staff training, marketing, advertising, maintaining and repairing the machine during the harvesting season.

7. Q: Is OEM or ODM service acceptable ?
A: OEM service is no problem, if you have any special requirements about the machines, please kindly inform us, our engineering department will study and offer you the suitable solution.
