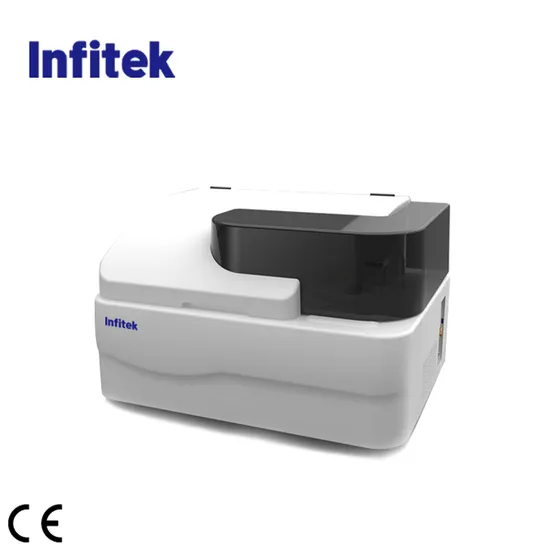

Infitek Ba-a-280 Fully Automatic Biochemistry Analyzer

Product Description

Infitek BA-A-280 Fully Automatic Biochemistry Analyzer Features

Specification

General information
Machine type	Random access,open reagent & locked reagent (optional)
Test speed	Constant 200 tests/hour (Mono reagent or double reagent)
Test principle	Colorimetric method,turbidimetry
Test method	1 point end,2 point end,Fixed-Time,Kinetics
Calibration type	Linear & nonlinear
Sample unit
Sample tray	40 sample positions
Sample tube	Micro cup & test tube & blood collection tube can be used.(φ12 -13 )mm * (25 -100 )mm
Sample volume	2-30µL step by 0.1µL
Sample probe	Liquid surface detection,timely tracking for liquid volume.Collision avoidance
Sample barcode	Sample barcode reader (optional)
Reagent unit
Reagent tray	80 reagent positions (40 for Rl & 40 for R2), Non-stop cooling system with peltier pad inside, 24 hours 2°C-14″C, open system, could accept any reagent
Reagent volume	20-300µL,step by 1µL
Reagent needle	Liquid surface detection,timely tracking for liquid volume.Collision avoidance.
Regent barcode	Regent barcode reader (optional)
Reaction unit
Reaction tray	44 reaction cuvettes, new amorphous optical plastics reaction cups, perfect transmittance.
Reaction volume	150µL-330µL
Reaction time	10 minutes
Temperature	Peltier pad incubation system, reaction temperature (37°C ±0.1 °C)
Mixing system
Mixer	paddle-type mixing,effective reducing of carry-over
Optical system
Light source	Halogen lamp
Wavelength	340nm; 405nm; 450nm; 505nm; 546nm; 578nm; 630nm; 700nm(4 more options)
Absorbance range	0-4.0 Abs
Resolution	0.0001 Abs
Operating system
Operation system	Windows XP, Windows 7, Windows 8, Windows 10
Data processing	Automatic calibration, test combination, effective time management of reagents, serum index, whole process detection, linear expansion of enzyme, blank deduction,dirty cuvette memory , cross infection prevention, patient information memory and association input, automatic report audit, data fuzzy query, report statistics and printing, reference range grading, alarm information classification, user operation privilege classification management
Report printing	6 formats optional, support custom pattern
interface	TCP/IP network interface
Working conditions
Power supply	AC 110/220V ± 10%,50/60 Hz 650W
Water consumption	8L/hour(maximum)
Dimension	870mm * 690mm * 740mm(L*W*H)
Weight	80kg

Packaging & Shipping

Certifications
About us
FAQ 1. Is our Biochemistry Analyzer an open system?
Yes
2. Does the Biochemistry Analyzer have the ability to detect dirty test tubes and clean them?
No, the Biochemistry Analyzer tests the blood drawn
3. Can the Biochemistry Analyzer be used for animals?
Yes, it can be tested with the corresponding biochemical reagents.
4. Can our Biochemistry Analyzer be connected to the LIS (Laboratory Information System) system?
Yes
5. How many times can our semi-automatic Biochemistry Analyzer perform tests an hour?
There is no way to determine this, because the semi-automatic Biochemistry Analyzer is manual, and the customer's hand speed and sample test time are different. For the same sample, the test can be done one by one; if it is a different sample, after sample A is done, for example, if the result of the first sample comes out, you first need to clean the pipeline and colorimetric cell. After cleaning, you can test The second sample.
6. What are the supported languages?
The semi-automatic Biochemistry Analyzer is currently only available in Russian, English, Portuguese, Spanish, and Chinese. If there are special language requirements, we can send a translation package. After the customer has translated it, we can generate it in the software;
The automatic Biochemistry Analyzer directly mentions the language requirements, and the order can be completed.
