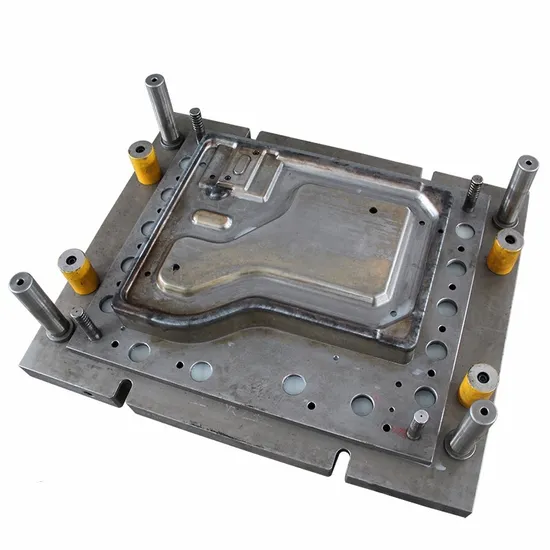

Hiparter OEM Sheet Metal Drawing Dies Automotive Seat Stamping Tool Automobile Deep Drawing Mold

Product Description

Product Description
Located in Qingdao, Hiparter has more than 20 years experience in designing and manufacturing progressive stamping die,and we have a variety of die manufacturing process capabilities. Qingdao is China's home appliance base, with Haier, Hisense, Aucma and other world-famous local home appliance brands. With this advantage, we have produced almost all stamping dies for all home appliances. At the same time, we are also proficient in the development and manufacturing of injection molds for home appliances, even casting mold. Here you can experience a one-station mold service to meet your various needs.
We have developed a full-range stamping die universal supply. In automotive appliance such as:
Automotive seat
Automotive shock
Automotive brake
Automotive hinge
Automotive door panel
etc.

Features of Our Progressive Press Die
1.High machining accuracy, the flatness within 0.1mm.
2.High strength and not easy to deform, has good electrical and thermal conductivity.
3.High finish appearance.
4.The machining precision is high and the assembly structure is seamless.
5.No granules, no spots and no painting peel off in appearance.
Product Parameters

Mold Name:	ISO9001 High Precision Fast Speed Press Sheet Metal Stamping Die	Mold base:	Standard mould base, LKM, HASCO, DME,etc......
Mold core material:	S45C, S136, S136H, S50C, P20, 718H, 738H, NAK80	Inspection:	100% inspection by QC, QA before shipping.
Part material:	DC01, SPCC, SS, SUS etc.	Minimum order:	Small orders can be accepted.
Tooling spring:	Rectangular spring, Nitrogen gas spring	Mold making service:	OEM/ODM service is available.
Spare Part:	Punch, Die, Spring, Gas Spring, Guide Pin, Guide Sleeve, etc.	Mold packing:	In strong wooden pallets to avoid any damages during long transportation.
Item:	Laser cutting parts,stamping parts, sheet metal parts, bending/drilling/welding/assebling,ect	Mold testing:	All of the moulds can be well tested before the shipments. Videos testing the moulds are available.
Design Software:	AutoCAD, Solid works, PRO/E, UG	Quality System:	ISO9001
Processing Craft:	Drawings→mould making→stamping→rough machining→CNC machining (if need)→surface treatment →product checking→packing→delivery	Specification:	Depends on clients' requirements
Processing	Laser cutting, stamping,welding, bending, deburring, grinding, assembly and CNC machinng	Mold lead time:	About 45 days after getting the mold design confirmation.
Surface Treatment:	Powder coating, painting, galvanizing, anodising, chrome plating, brushing, polishing, silk-screen, printing, sandblasting	Application:	Car, Household Appliances, Commodity, Electronic, Home Use, Hardware, Industrial
Fast mold design:	We can be within 1-3 working days after getting customer's drawings.	After-Sales Warranty:	Offer Suplementary for Destroied Parts

Company Profile
"To do the most, to show the best"
Located in Qingdao, Shandong, with about 20 years development, Hiparter specializes in designing and making progressive stamping die, and reached a level where we can confidently and consistently follow the work of the progressive stamping die process.
Our management system is ISO9001. Our dies are not only manufactured fast and well, but also at an affordable price. There are rich experienced engineers and workers in factory, our quality assurance system tracks every aspect of the design and building process to guarantee the quality and delivery time of the die.
We have a unique business philosophy, rich production management experience, excellent technical team, for the development of design, manufacturing, after-sales service to provide a full guarantee.
Committed to mold design and manufacturing, Hiparter is always willing to make friends with every customer.
Design Capacity
We adhere to total solution service: product design optimization→ die design→ die manufacturing →die debugging→ product inspection→ die specification manual sharing→ after-sales support.
Diverse Design Resources
· Equipped with word-class CAD / CAM / CAE resources.
· Proficient in 2D/3D design, entity parting.

Experienced Technology Engineers
· 50+employees in engineering design center
· 10+employees are engaged in CAE simulation.
· 40+designers are engaged in product design, process design and mold structure design.
· 10+design and technical directors have 10+ years experience.
Variety of Die Type

With more than 20 years of mold technology experience, Hiparter can develop and build all kinds of stamping die. Such as:
· Progressive Die
· Transfer Die
· Tandem Die
· Casting Die
· High Strength Part Stamping Die
· Aluminum Part Die
· etc...
Technology Innovation: Our mold innovation concept is always dare to try new mold material, new technology, new processes.

Advanced Equipments
"a workman must firstly sharpen his tools if he want to do his work well" Advanced high precision equipment guarantee the high quality of the die. We have a full range of die processing and manufacturing equipments, and almost all the machining process completed in-house. On the spot, all engineers will debug and check the dies in person after manufacturing.
Manufacturing Capacity
1. 40+ sets of molds per month.
2. Slow speed wire cutting machine and middle speed wire cutting machine more than 11 sets.
3. Fully equipped with grinder machine, milling machine, drilling machine, CNC machining, wire cutting machine, etc.
4. Almost all the machining process completed in-house.
5. We can guarantee the quality and lead time.
Quantity of Machines
1. 45T~1600T press machines more than 24 sets.
2. Punching die machining equipment more than 28 sets.
3. Equipped with Press machine and hydraulic machine.
4. Material feeder for progressive die 8 sets.
5. Standardized system and regular training of professional workers.
Machining Equipments
Measurement Equipments

Name	Specification ( Stroke,mm)	Brand,Made In	Qty.
Coordinate Measurement Machine	1200*1500*1000	Hexagon,Swiss	1
Alloy Analyzer	/	LANScientific	2
Vision Projector Measurement Machine	300*250*200	China	2
Portable blue ray scanner	/	China	1
Tensile testing machine	/	China	1
Torsion tester	/	China	1
Salt spray tester	/	China	1

Export Capability

Our dies have been approved and appraised by our customers. We offer prototype making and free image design for customer analyse.
We also provide good after-sales service and enjoy a good reputation among customers both at home and abroad, including Haier, Hisense, AUCMA, Midea, SANYO, KIA. GM, etc.
The products have been shipped all over the world including destinations in Europe, North America, South America, Japan, Korea, and so on, more than 30 countries.
Packaging & Shipping

Painting	Convenient to identify your die
Slushing oil	Protect the die surface avoid rust
PE film	Keep the tool surface clean
Related documents	All the details for this die, such as structure drawing, instruction of operation, maintenance manual, inspection report, factory checking list etc.
Outer packaging	Plywooden case, exported standard.
Fastening	More stronger to aviod damage

FAQ
Q1: What is your OEM service?
A: Firstly you can provide 3D/2D drawing to us, our engineers will evaluate the design and give you a precise quote.
We offer parts design, mold design, PCB design, prototype, mold making, mass production, testing, certification, painting, electroplating, screen printing, printing, assembly,and delivery all in one-stop services.
Q2: When will you deliver the goods?
A:When receive the down payment and approve the drawings, the time limit will be confirmed. About 45-50 days.
Q3: Why should l choose Hiparter?
A:We can offer:
1.The Best Quality
Perform an in-depth evaluation of the injection mould part design to avoid production problems, such as returns due to quality issues.
Guarantee the precision of the moulds and parts with world-class equipment.
2.The Most Competitive Price
Our engineers will assist in improving the part design and optimizing the mold design to save your cost.
3.The Fastest Delivery Time
We will provide detailed production plans and send weekly reports with digital pictures and videos to show the processing progress.
4.The Most Satisfactory Service
We have the ability to assemble complex products and ultimately test them. If there is any quality problem, we will be responsible to the end.
Q4: What's your after-sale service?
A: If there is any mold problem, please provide relate photo and video point out the problem, we will analysis and help to solve it.
Contact Us
We willl make friends with every customer, provide them with quality products, and create more value for our customers forever.
More accurate quotation, please send us 2D/3D drawings of your products to us.
