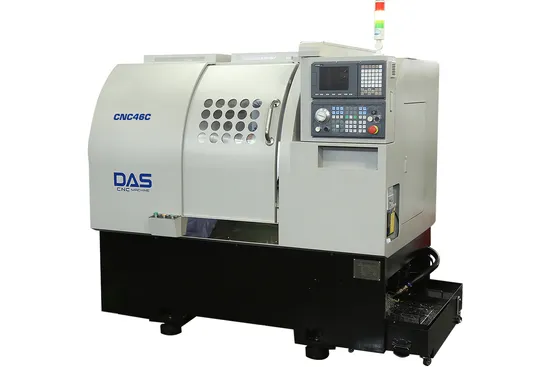

Slant Bed Gang-Type CNC Lathe CNC46c
| US$18,690.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CNC46C
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Open-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Spindle
Two
Spindle Power
3.7 Kw
Transport Package
Wooden Case
Specification
2700*1700*2330
Trademark
DAS
Origin
China
HS Code
8458110000
Packaging & Delivery
Package Size
2700.00cm * 1700.00cm * 2330.00cm
Package Gross Weight
2900.000kg
Product Description
DAS 46C Torno CNC High Precision Metal Automatic Hydraulic Power Slant Bed cnc lathe MachineProduct Description
Machine tool control system uses Taiwan SYNTEC 6TA-T3S system. Other company's numeral control system can also be used when user requires so.
Machine body is cast in one piece with resin bonded sand, so it features strong vibration resistance and less deformation. The lathe bed tilts by 45° and the inclined placement of lathe carriage and tool holder will result in easy operation and chip removal. The machine tool has pleasant design appearance and less space occupation.
Equipped with computer automatic lubrication system for the linear guide and ball screw forced lubrication, ensure that the guide rail and the service life of screw.
| CNC46C Technical parameters | |
| Name | CNC46C |
| Tool installation | Gang type |
| Adjacent tool change time(s) | 0.2 |
| Tool change method | Random |
| Square knife holder(mm) | 20×20 |
| Round hole knife seat (mm) | φ20 |
| Chuck size(Inch) | 6" |
| Spindle speed(r/min) | 45-4500 |
| Spindle bore(mm) | Φ56 |
| Center height(mm) | 56 |
| Max. Swing diameter(mm) | 400 |
| Spindle motor power(KW) | 5.5 |
| System minimum resolution | 0.001 |
| X/Z axis travel (mm) | 340/250 |
| X/Z axis rapid traverse speed(m/min) | 26(Factory setting) |
| X/Z axis repeat positioning accuracy(mm) | ±0.002/±0.002 |
| Taper(mm) | ≤0.005/100mm |
| Roundness(mm) | ≤0.003 |
| X servo-motor(kw) | 1.3 |
| Z servo-motor(KW) | 1.3 |
| Hydraulic station motor power(KW) | 0.75 |
| Tank motor power(KW) | 150W |
| Cooling water tank capacity(L) | 60 |
| Feeding rack center high(mm) | 1015 |
| Power(kw) | 10 |
| Weight(KG) | 2900 |
| Size(L*W*H)(mm) | 2090*1320*1760 |
