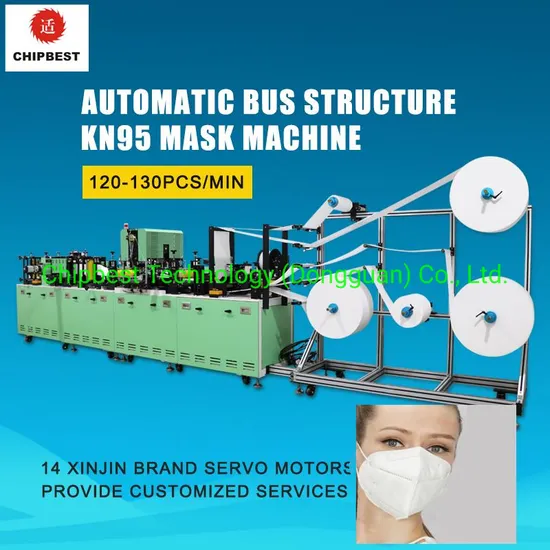

N95 Face Mask Making Machine/Medical Face Mask Making Machine/Surgical Face Mask Making Machine/Disposable Face Mask Making Machine

Product Description

N95 Face Mask Making Machine/Medical Face Mask Making Machine/Surgical Face Mask Making Machine/Disposable Face Mask Making Machine
This manual is written to facilitate your installation, commissioning, operation and maintenance of equipment. You can find the details you need in the relevant chapters and sections. Please read this manual carefully before using the product.
The operating manual is an important tool to help you properly use, maintain and repair your products, and it is a part of the equipment. Liability for any damage or accident caused by a violation of the instructions or provisions in the Manual of Use is not in the equipment manufacturer. Therefore, before the equipment is deactivated and disposed of, please keep this manual properly to avoid inconvenience to your work. It is recommended that the parts related to the use and maintenance of the equipment be made into Operational Guidance Book, and placed it in the place where operator is easy to obtain.
Note: some of the illustrations cited in this manual may be different from the actual equipment, here is only an introduction to the operation method, and the actual operation of the equipment shall prevail.

KN95(22)
1	Touch screen	TGA63S(10.1)	1
2	Servo motor	MS6H-80CS30B1-20P7	11
3	Servo motor	MS6H-60CS30B1-20P4	11
4	Planetary reducer	PLF060 ( 750W ) 1:20 PLF060 single pole(with 750W servo)speed ratio 1:20	11
5	Planetary reducer	PLF060 ( 400W ) 1:5 PLF060 single pole(with 400W servo)speed ratio 1:5	11
6	Stepper moto	86	1
7	Stepper moto	57	2
8		15k2600w	2
9		15K4200W	1
10		15K2600W	1
11	Power line	3*2.5 ²	1
12	AC contactor	NXC-38 / 220V	1
13	Air switch with electricity leakage protection	NXBLE-63-2P C32	1
14	Filter	CW4L2-50A-S	1
