Hot Selling Automatic Double Row Veneer Peeling Machine

Hot Selling Automatic Double Row Veneer Peeling Machine

US$13,000.00-26,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
VP-DP260
Type
Spindle Less Lathe
Automatic
Automatic
Certification
CE, ISO, SGS
Machine Name
Veneer Peeling Machine
Condition
New
Peeling Speed
40-100 M/Min
Usage
Peeling Wood Veneer
Veneer Thickness
0.5mm - 3.6mm
Advantage
Flat /Small Tolerance /Durable
Log Length
2800 mm
Voltage
220V/380V/440V
Log Diameter
550 mm
Total Power
60.0 Kw
Log Rod Diameter
32 mm
Dimension
5800*2300*150mm (L*W*H)
Peeling Capacity
7 M3/Hour
Delivery Time
20 Days
Weight
11,200 Kg
Transport Package
Container by Sea
Specification
Spindleless Peeling
Trademark
Yihong
Origin
Linyi, China
HS Code
8465960000
Production Capacity
1, 200 Sets/Year

Packaging & Delivery

Package Size
580.00cm * 230.00cm * 15.00cm
Package Gross Weight
11200.000kg

Product Description

Product Description

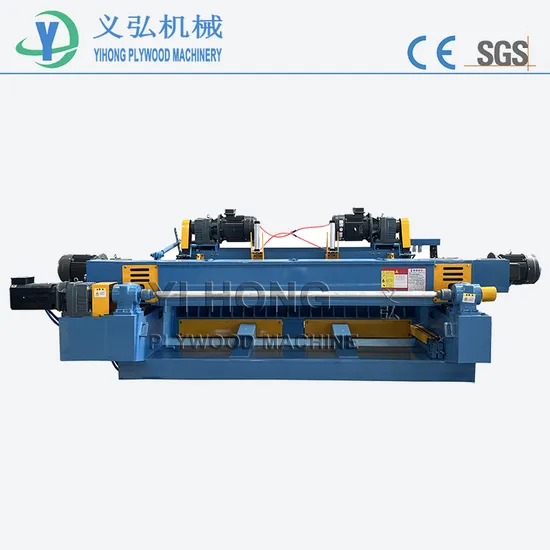

Veneer Peeling Machine
Veneer Peeling Machine is also named Rotary Cutting Machine, which widely used in plywood industrial. After stem was peeled bark by log debarker machine, the cylinder logs will be peeled into veneer sheets by veneer peeling machine, and then cut into target width by the veneer clipper machine.
According to chuck type, veneer peeling machine would be classified to two type. spindle chuck and spind-less chuck.
The face / back veneer of plywood is required to be neat and smooth, so spindle peeling lathe machine is usually used; however plywood core veneer is required large quantity and flat surface, therefore spindle lees peeling lathe is specailly inquiry.
Generally, a complete plywood factory must purchase these two types of machines.
Spindle-less veneer peeling lathe is integrated peeling and cutting function. Peeling wood veneer while the logs are rotated by driving both single and double rollers. Meanwhile the internal rotary clipper performs precise cutting under PLC control.
Specification
Model VP-DP130 VP-DP260
Max.Log Length 1400mm 2800 mm
Max.Log Diameter Φ 550 mm Φ 550 mm
Min.Rod Diameter Φ 28 mm Φ 32 mm
Peeling Speed 50-120 m/min 40-100 m/min
Veneer Thickness 0.5-4.0 mm 0.5-3.6 mm
Peeling Knife 1500x18x16mm 2900x18x16 mm
Automatic Adjust thickness/width Option Option
Hydraulic Knife Holder Option Option
Production Capacity 4 m3/h 7 m3/h
Total Power 45.4KW 60.0KW
Total Weight 6800KG 11200KG
Dimensions 4800x2200x1500mm 5800x2300x1500mm


Product Advantages

Company Profile
Yihong Machinery Co., Ltd.
Yihong is ocated in Linyi City, China. manufacture complete veneer production line, such as veneer peeling machine, log debarking machine, veneer stacking machine, blade sharpening machine, log cutting machine and supply plywood production line, including veneer paving line, veneer composer, veneer patching machine, glue spreader, hot press and DD saw, meanwhile supply OSB flakers for OSB and particleboard production.
Since 1988, YH focus on the R&D and manufacturing of wood processing equipment. With exquisite technology and excellent product quality, we have won recognition from domestic and overseas customers. YH own import and export lience, over 20 years YH machine are exported to more than twenty countries and regions in Asia, Europe, Africa and Americas.
Great Project
Packaging & Shipping

FAQ
Q1. Are you manufacturer or trading company?
A1. We are munufacturer with export lience. Yihong machine have been sold to more than 30+ country with 30 years manufacturing experience, established satisfactory service branch.
Q2. How to ensure machine quality?
A2. All machine have to be tested well before shipment, then arrange overseas engineer install and test again. Ensure your machine running well .
Q3. What's your warranty?
A3. Machine body have 2 years warranty. always carry some spare parts when shipping, clients could change it easily.
Q4. How to buy machine?
A4. Tell us your factory, we will offer plan drawings and offer quotation. then overseas engineer will install machine to your plywood mill.
