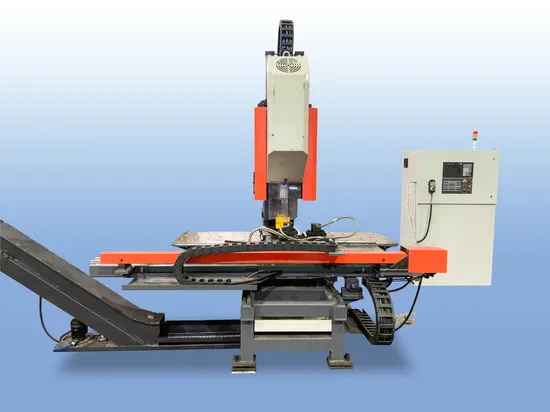

Customized High Quality Lasting High-Speed CNC Steel Plate Drilling Machine, Plate Movable, HD1208, Rotation Speed 2000rpm, Bt50
| US$42,000.00-45,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HD1208
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Working Table Size
1200X800mm
Drilling Thickness
60mm
Tipper of Spindle
Bt50
Speed of Spindle
120-320rpm (Infinitely Variable Speed)
Drilling Diameter
12-50mm
Quan. of Clamper
2
Precision of Positio
+-0.08/500mm
Cooling Mode
Outer Colling Mode
Control Method
CNC System
Chip Removal Method
Flat Chain Automatic Chip Conveyor
Spindle Power
22kw
Transport Package
Suitable for Export Transportation
Specification
1200*800mm
Trademark
SAFETY
Origin
China
HS Code
8459210000
Production Capacity
300 Per Year
Product Description
High-speed CNC Steel Plate Drilling machine, HD1208Characteristic: 1. This machine is used for drilling metal plates in electric power, communication, automotive, metal engineering, and other industries.
2. The machine tool housing is a C-shaped structure made of two steel plates, with high hardness, compact size, light weight, and spacious working space.
3. The clamping system is driven by a gyroscope system, and the clamping device can be used for plates of different sizes, equipped with a billet base plate, and the workpiece is supported by a ball bracket.
4. The X&Y axis drive mechanism uses the SWPP of the servo motor. The 2-axis control CNC can determine the punch position, ensuring high machining accuracy
5. The CNC machining process is simple to operate, and can automatically produce large quantities of parts with high accuracy
6. Simple programming and the ability to write programs directly using special software can also be written by hand
7. This machine adopts Taiwan's "Kenturn" precision internal cooling spindle, with a BT50 spindle tapered hole, and a hydraulic spring stretching mechanism. The hydraulic cylinder can freely grip the knife, making tool replacement convenient.
Technical parameters:
| Model | HD1280 | |
| Processing size | Max. Size of plate(мм) | 1200×800mm |
| Min. Size (мм) | 100X100X8mm | |
| Min.distance from margin to holes (мм) | 25mm | |
| Drilling capacity | Max. Diameter of hole (мм) | Φ50 |
| Spindle | BT50 | |
| Max. Drilling thickness (мм) | 60mm | |
| Spindle speed | 2000rpm | |
| Power of spindel (KW) | 22 | |
| Control system | PLC + computer | |
| Processing accuracy | Compliance with standards GB2694-2010 | |
| Weight of machine(T) | ~7.8 | |
Delivering photos:
