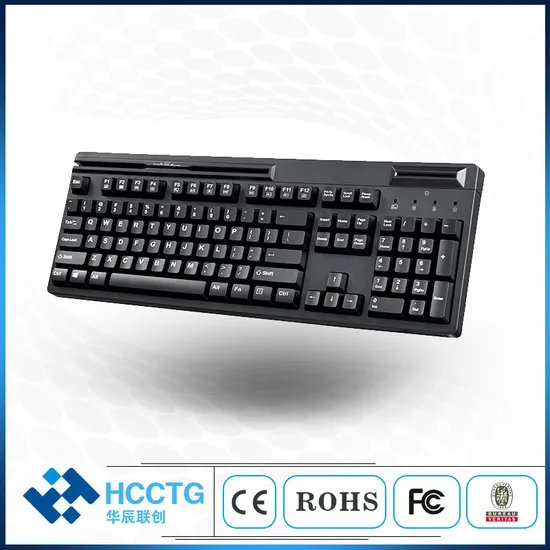

USB Multi-Functional 104 Keys Keyboard with Msr Magnetic Card Reader Track 1 2 3 and Contact IC Chip Card Reader Hcc150u

Product Description

USB Multi-functional 104 Keys Keyboard with MSR Magnetic Card Reader Track 1 2 3 and Contact IC Chip Card reader HCC150U
Features SupportsISO7816 for IC card standard,PC/SC 2.0 for Windows Smart Card standard,WHQL,EMV for Europay MasterCard Visa standard and USB-CCID standard. Magnetic stripe readers can be read by a computer program through your keyboard wedge, and are generally categorized by the way they read a badge. Membrane Key Switches provide a better tactile response and a quieter typing experience. Plus they last up to 10million keystrokes. Detailed Photos
Product Parameters
HCC-150U Membrane Keyboard with SCR&MSR features a 3 zone keyboard layout with a built-in Smart Card Reader (SCR) for banking transactions, identification systems, secure web applications, and secure login ,as well as a Magnetic Stripe Reader (MSR) for Credit Cards.
This is the perfect Point of Sale Keyboard with security and multi-functional abilities. This full-sized keyboard is perfect for any desktop, kiosk, office, or warehouse, while the built-in multi-functional hotkeys allow quick access to your multimedia controls and Internet browser commands.
The soft and quiet membrane keys provide instant sound feedback as well as amazing tactile response, improving accuracy, productivity and efficiency, while lasting up to 5 million keystrokes.
With all these amazing features. LIF-104R Membrane Keyboard with SCR&MSR is the ultimate all-purpose full-sized keyboard for business, security, and retail.

Card Reader Specifications	EMV 4.0 Level 1 and PBOC2.0 Level 1 certified
	Supports USB 2.0 full speed, USB-IF certified
	Based on ISO7816 implementation
	Supports PC Smart Card industry standard - PC/SC 2.0
	Supports Smart Card for Windows
	Meets WHQL USB Smart Card Reader requirements
	MeetsUSFederal InformationProcessing Standards(FIPS) Publication 201
	Requirements on smart card reder interoperability
	Smart Card Reader supports T0, T1 Protocol
	Supports ISO7816 Class A, B, and C (5V/3V/1.8V) card
	MSR Power Specifications: Wedge - 20mA max
	Operating Temperature: -30°C to 70°C (-22 F to 158 F)
	Mechanical Specifications: Length 3.94" x Width 1.28" x Height1.23"
	Weight: 4.5 oz.
Keyboard Specifications
Key Layout	104-Key US Layout
Key Type	Membrane
Connection	USB
Internet Hotkeys	5 hotkeys(Home page, E-mail, Back,Forward, Search)
Multimedia Hotkeys	7 Hotkeys (Play/Pause, Stop, Previous Track, NextTrack, Vol. Down, Vol. Up, Mute)
Dimensions	18.3"x 6.5" x 1.3"(4655 x 165 x 33 mm)
Weight	2.56 lb.(1163 g)
Requirements
Operating System	Windows®10 / 8 / 7 /Vista / XP
Connectivity Interface	2000 Available USB Port

Company Profile FAQ 1.Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
2. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
3. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
4. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
5. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment and so on.
6.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.
7. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for 9 years. We can provide OEM / ODM customized service according to our customers' various application and demands.
8. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
