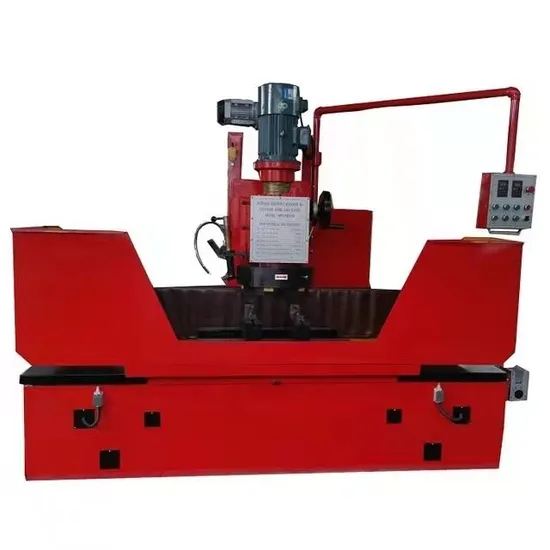

Cylinder Head Grinding Machine Cylinder Head Grinder

Product Description

Product Description
Introduction
Surface grinder is a kind of grinder. The grinding wheel is mainly used to rotate and grind the workpiece to achieve the required flatness. According to the shape of the worktable, it can be divided into two types: rectangular worktable and round worktable. The main parameters of the rectangular worktable surface grinder are the width and length of the worktable. The main parameter of the shaped worktable is the diameter of the worktable. According to different shaft types, it can be divided into horizontal shaft and vertical shaft grinder.


Features
1. Adopt the exceeding precise class7 (P4 level) ball bearing for spindle. Table can be dynam
2. with table size 600X300 economic
3. Very popular all over the world because of high quality and reasonable prices
4. Could work with many different material5. COLOR AND BRAND could be custimized




Most grinding machines are grinding with high-speed rotating grinding wheels, while others are processed with other grinding tools such as oilstone, sand belt and free abrasive, such as honing machine, super finishing machine, belt grinder, grinder and polishing machine.
Specification

Model	Unit	3M9735A*100	3M9735A*130	3M9735B*130	3M9735B*150
Max length of processing	mm	1000	1300	1300	1500
Max width of processing	mm	350	350	350	350
Max height of processing	mm	600	600	700	800
The vertical moving distance of grinding wheel plate	mm	120	120	60	60
The vertical moving distance of grinding wheel head	mm	0	0	800	800
Moving speed of working table	mm/min	40-900	40-900	40-900	40-900
dimensions of working table	mm	1000*500	1300*500			1500*500

Company Profile
SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.
Order Evaluation
Exhibition
Customer Photos
Certifications
FAQ
1. How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2. What is your payment terms ?
A: 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.

3: Where is our factory located? How can I visit there?
A : Our factory is located in No. 52 Linyin Road, Economic and Technological Development Zone, Nantong City, Jiangsu Province ,226001 China. You are warmly welcomed to visit us.

4. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

5. Can you send the service engineer to our company ?
We have engineers stationed in Canada, Egypt, and Algeria. The after-sales service system is very perfect.
