Energy Saving Low Noise Gearless Panoramic Lift for Hotels

Product Description

Product description
Energy Saving Low Noise Gearless Panoramic Lift for Hotels
Model: 16G003
Observation lift, sightseeing elevator, capsule lift, landscape elevator, geared or gearless, MRL or with small machine room. Syney observation elevator series are widely used nowadays. In hotels, business places and office buildings, you all can see Syney panoramic elevator silently transporting colorful passengers up and down, adding beautiful sights to buildings. Our lift distincts itself in automatic timing switch and safety device, offering passengers steady moving up and down.
Features
1. Safe and reliable
Syney panoramic elevator puts safety the first place, to ensure each passenger's safe delivery to destination.
2. Energy saving and environment friendly
Syney sightseeing elevator adopts gearless permanent magnet synchronous machine to save energy and protect environment.
3. High performance
Syney observation elevator is euipped with stable control system with maximum capacity 1600kg. Intelligent lift dispatching system provides the best solution for customer riding.
4. Humanized car door safety sensor
Car door eaves area is monitored by infrared beam. Once obstacles detected during opening and closing, car door will stop and slowly open the door.
5. Wide view, extraordinary enjoyment
Full range and multi angle sightseeing outside the elevator brings passengers pleasure and novelty. Square or round cabin, with a variety of style for your choices, meet your diverse visual requirements.

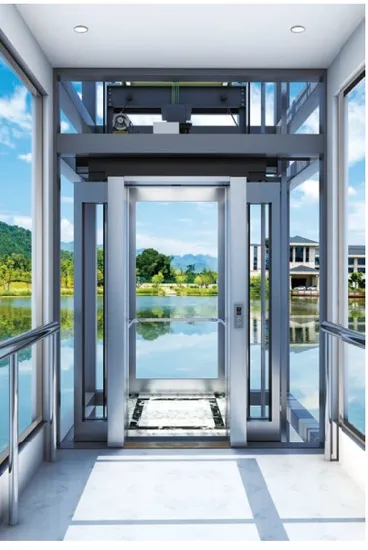

Panoramic elevator cabin design
Parameters: Panoramic Elevator With Machine Room

Capacity	Speed	Cabin Size			Shaft Size					Max Travel	Min Floor H
DL	V	Width	Depth	Open	Width	Depth	Pit	OH	MRH	Max R	Min D
(kg)	(m/s)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(m)	(m)
630 Round	1	1150	1500	800*2100	2250	2050	2000	4900	2800	50	2.7
	1.5						2100	5000		70
	1.75						2200	5100		90
800	1	1150	1800	800*2100	2300	2350	2000	4900	2800	50
	1.5						2100	5000		70
	1.75						2200	5100		90
1000	1	1300	1900	900*2100	2450	2450	2000	4900	2800	50
	1.5						2100	5000		70
	1.75						2200	5100		90
1150	1	1400	2000	900*2100	2400	2550	2000	4900	2800	50
	1.5						2100	5000		70
	1.75						2200	5100		90
1350	1	1500	2100	1000*2100	2650	2650	2000	4900	2800	50
	1.5						2100	5000		70
	1.75						2200	5100		90
1600	1	1500	2500	1100*2100	2700	3100	2000	4900	2800	50
	1.5						2100	5000		70
	1.75						2200	5100		90

Note:
Above standard specification is only for reference. If shaft size at jobsite is different , please contact with us, factory will design suitable one according to your parameter.
Standard functions

No.	Function	No.	Function
1	Collective Selective	24	Door lock stop when running
2	Close door interrupted auto return	25	Level adjust
3	Overload Alarm	26	Auto stop
4	Full load bypass drive	27	Floor signal auto-amend
5	Motor overheat protect	28	Door switch protect
6	Machine room emergency electric operation	29	Anti-slid protect
7	Top floor terminal protect	30	Door switch button
8	Car display	31	Landing door/car door lock at certain period
9	Reset Running	32	Landing door open at present floor
10	Car emergency lightening	33	Speed feedback
11	Car top inspection	34	Reverse running protect
12	Door close time extending protect	35	Shaft position self study
13	5 part interphone	36	Brake feedback inspection
14	Reverse direction register cancel	37	Standby switch
15	Car Alarm bell	38	Car lightening and fan control
16	Fault register cancel	39	Fault self-diagnosis
17	CPU self protect	40	Running direction signal
18	Auto level	41	Fault history record
19	CAN communication protect	42	Service floor setting
20	Fault auto level	43	Floor display setting
21	Level switch protect	44	Auto return main floor
22	Low speed protect	45	Auto return main floor when fire alarm
23	Shaft self-study diagnosis	46	Contactor feedback detection

Manufacturing, Packing and Delivery
From the raw material getting into factory to finished products getting out to customers, Syney has a strict operation system to control each steps.
No rejected raw material will be accpeted!
When raw material comes to factory, QC department will check all the materials, once any fault items found, it will be returned to suppliers at once. Only qualified material will get into raw material warehouse.
Production management
Every week, production department will make the production plan and update the schedule of online products. There is daigital board in each workshop showing the production plan everyday. In this way, from workers to managers all clearly know which project is online now.
Every moring, managers will guide the workers to run for 15 minutes first to refresh. Then check the machines status before operation and check again after one day job.
Packing
All parts are packed in solid plywood boxes, which can stand long time sea shipping and fumigation free. For some important parts like control cabinet, door operator and motor, parts will be covered by a strong film first, with desiccant, before put into boxes.
Quality control
1) All raw materials will be checked before get into warehouse. And bulk electronic product do sampling inspection. All parts must have qualified certificate from suppliers. QC1 is responsible for this.
2) During production stage, QC2 will check commissioning for each elevator, escalator and moving walks.
3) After elevator and escalator finished, QC3 will test the match of elevator motor and control cabinet, and the running condition of escalator and moving walks.
4) After packed, QC4 will check package condition for each parts, and takes photo for further reference.
5) When delivery, QC5 will check if all parts packed in container to avoid any missing, and takes photo for further reference.
Company Profile
Syney Electric (Hangzhou) Co., Ltd. is a professional enterprise integrating R&D, design, manu­facture, marketing, installation and customer service. The company applies whole set of advanced equip­ments and specializes in design and manufacture of products including passenger elevator, pan­oramic elevator, bed elevator, cargo elevator, home elevator, car elevator, esca­lator, moving walks, etc. Syney sales network expands to over 50 countries in Europe, Asia, Africa and America.
The enterprise has two manufacturing factories. The registered capital is ¥500,000,000, covering nearly 99000 square meters, with over 80 engineering technicians and nearly 30 senior managers.
Certificates
CE Certificate of Elevator with machine room and Elevator without machine room, and UCMP device
CE Certificate of energy-efficiency of lifts: Grade A
EAC Certificate Elevator with machine room and Elevator without machine room
