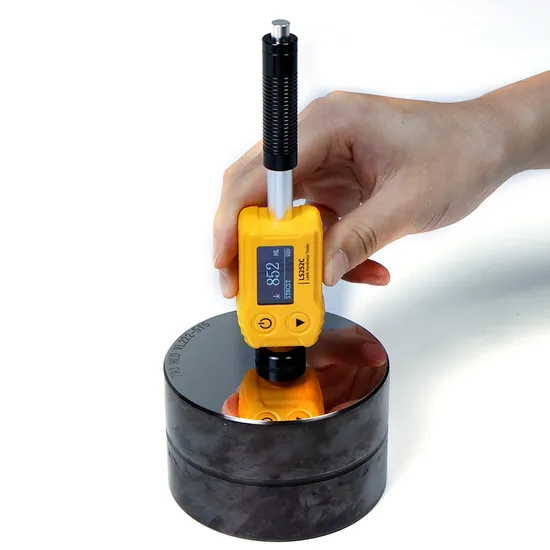

Ls252c Pen Type Portable Leeb Hardness Tester Digital Durometer C Impact Device Metal Durometer Steel Leeb Hardness Tester

Product Description

Product Parameters LS252C Pen Type Portable Leeb Hardness Tester Digital Durometer C Impact Device Metal Durometer Steel Leeb Hardness Tester Descriptions: LS252C pen type portable Leeb hardness tester, with C-type impact device, with low impact force, suitable for testing the hardness of surface hardened layer and small mass or thin thickness of parts. The hardness tester digital uses advanced dual coil technology for good repeatability and high measurement accuracy. LS252C digital durometer is equipped with the direction sensor that automatically compensates for measurement errors in different impact directions. Multiple hardness scales are built in, which can be converted between Leeb (HL), Vickers (HV), Brinell (HB), Shore (HS) and Rockwell (HRC). Features: 1. C-type impact device is suitable for testing the hardness of surface hardened layer and small mass or thin thickness.
2. Available in multiple metal materials for a wide range of applications.
3. Use advanced dual coil technology for good repeatability up to 6HL.
4. The hardness tester is equipped with the direction sensor that automatically compensates for errors in different directions.
5. Multiple hardness scales are built in, which can be converted to each other.
6. The metal durometer is guaranteed to pass the test of the institute of authorized metrology.
7. Utilize the rechargeable lithium battery that can be charged simply through the USB port.
8. Impact device is composed of tungsten carbide for long-term performance. Specifications

Parameter	Value
Probe	Impact device C
Hardness Scales	HL, HV, HB, HS, HRC
Measurement Range	HLC: (170-960); HV(80-996); HB(80-683); HRC(20-69.5); HS(31.9-102.3);
Resolution	1HL
Accuracy	±12 HL, ±6 HL typical
Repeatability	6HL
Display	128 * 64 dot matrix OLED
Power Supply	Rechargeable lithium battery 3.7V@250mAh, full charge for over 5000 continuous measurements
Charging Port	USB(Type-C)
Size	140*34*24 mm
Weight	66g
Working Temperature Range	-10~50ºC,0~85%RH(no condensation)
Storage Temperature Range	-10~60ºC,0~85%RH(no condensation)

Product Description C-type impact device is suitable for testing the hardness of surface hardened layer and small mass or thin thickness.
C-type impact device measures a minimum mass of 1.5 kg and a minimum thickness of 10 mm. If the weight or thickness does not meet the requirements, the leeb hardness tester must be coupled to a solid support for testing, the minimum thickness of the measured object after coupling is 1mm. Packing List

No.	Description	Quantity	Unit
1	Leeb Hardness Tester	1	Set
2	Nylon Brush	1	Pcs
3	Small support ring	1	Pcs
4	USB Data Cable	1	Pcs
5	User Manual	1	Pcs
6	Certificate / Warranty card	1	Pcs

Company Profile
Packaging & Shipping

Packing	Air Carton /Express Packaging/ Shrink Package
Delivery Terms	EXW, DAP, Express Delivery
Delivery Time	5-10 days in stock
Port	Shenzhen

FAQ Q: What's the difference between LS251D hardness tester digital and LS252D Leeb hardness tester? A: LS251D is separation design, LS252D as integrate design, more compact portable; LS251D can measure tensile strength (σb); LS251D has QC inspection; LS251D is equipped with standard hardness blocks, which can be used for calibration; other integrated models are not equipped and need to be purchased separately; LS251D is packed in engineering plastic box, and other integrated products are packed in color gift box Q: What's the difference between LS252D and LS252DC? A: The probe devices are different. LS252D metal durometer is a D-type impact device and LS252DC digital durometer is a DC type impact device. The loading modes are different. LS252D pen type portable leeb hardness tester is press loading and LS252DC is push loading. Q: What is the difference between a type D impact device and a type DC impact device? There are D /C /DC /D+15 /G type impact devices, according to the actual situation of the workpiece to meet different needs. D is a standard probe suitable for most scenes, DC type is suitable for very cramped places (inside the hole, cylinder) measurement. Q: How to place order?
A: Talk to service staff, confirm machine details, after confirmed the order, we will send you PI to confirm.
Q: What is your warranty? And do you have technique support?
A: Our warranty is 1 year. We have technique support and training. We can also offer on-site serive if need.
Q: How Long is your lead time?
A: It depends on the different products.
Q: How to Pay? A: We accept T/T, and Global Pay
Q: Do you provide OEM or ODM service?
A: Yes, we have over 15 years experience for OEM and ODM serivce. Add your logo on machine is also ok for us.
Q: What's the shipment ways you can provide?
A: By Air, By sea, By Truck, By Express(door to door): DHL, UPS, FedEx, TNT, SF, EMS ect.
