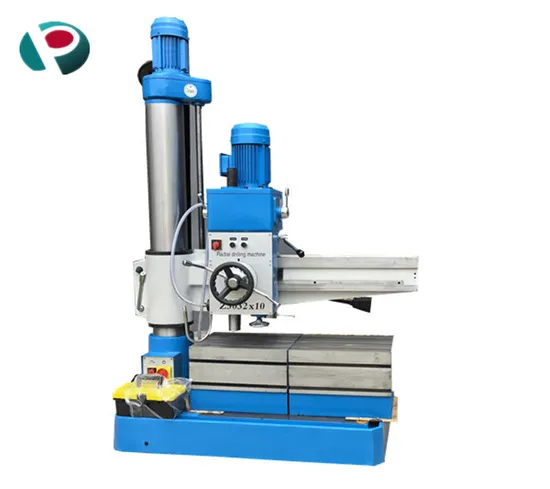

Factory Direct Sale Radial Arm Drilling Machine Z3032/Z3040/Z3050/Z3063 Drilling Tapping Machine
| US$4,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3032/Z3040/Z3050/Z3063
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
50
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Rocker Arm Rotation Angle
360
Horizontal Moving Distance of Spindle Bo
1250mm
Spindle Feed
0.10/0.16/0.22/0.25/0.35/0.56
Maximum Allowable Resistance of The Spin
16000n
Main Motor Power
4kw
Lifting Motor Power
1.5kw
Machine Weight
2000kg
Overall Dimensions
2170*950*2450mm
Transport Package
Export Wooden Cases
Specification
2170*950*2450
Trademark
JEPPS
Origin
Shandong, China
Packaging & Delivery
Package Size
227.00cm * 105.00cm * 255.00cm
Package Gross Weight
2010.000kg
Product Description
Product Parameters
| Main Parameters | Z3040×10 Single Column | Z3050×16 Radial Drilling Machine |
| Maximum Drilling Diameter (mm) | 35/40 (steel/casting) | 48/50 (steel/casting) |
| Distance from spindle centerline to column generatrix (minimum - maximum) (mm) | 300-880 | 360-1600 |
| Distance from spindle end to base table (minimum-maximum) (mm) | 230-1120 | 300-1150 |
| Spindle travel (mm) | 220 | 220 |
| Spindle taper | MT.4 | MT.5 |
| Spindle speed stages | 12 Level | 6 Level |
| Spindle speed range (r/min) | 34-1220 | 78.135.240.350.590.1100 |
1.Adopting advanced structure, new technology, new process, perfect performance, simple structure, flexible operation, reliable work, high precision, long service life, easy maintenance, widely used in drilling, reaming, reaming and tapping threads in machining.
2.Z3050x16/1 type rocker arm drilling machine, the machine speed and feed by a wide range of variable speed range, can be motorized, manual and micro-manipulation, can be at any time easy to turn on or cut off the feed. The feed safety mechanism is safe and reliable, and the clamping of each part is convenient and reliable. The spindle box has a small displacement error when unclamping, the variable speed control mechanism is concentrated on the spindle box, which is easy to operate and change the speed, and the hydraulic preselection of spindle speed and feed is quick, accurate and sensitive. Detailed Photos
