2025 Hualong Machinery 5-Axis CNC Bridge Saw Combine Waterjet for Precision Stone Cutting

Product Description

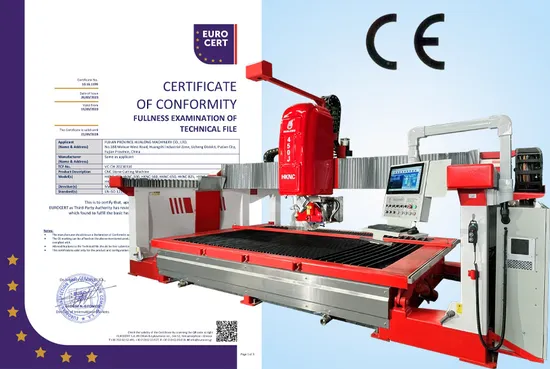

5 Axis Stone CNC Sawjet HKNC-450J
Featuring a cutting-edge Italian CNC control system by ESA, this fully automated dual-use marvel combines a 5-axis CNC saw and a 5-axis CNC waterjet. It's designed to redefine precision in cutting granite, marble, quartz, limestone, and the latest in ceramic materials.
The CNC saw excels at cutting stone slabs, countertops, sinks, blade profiling, engraving, and beyond.
The waterjet cutting head is engineered for immaculate mitering and slicing through various materials with precision. It's the go-to tool for crafting intricate shapes and angles, making it ideal for porcelain, stone, marble, and granite inlay patterns.
Main Features
5-axis Saw - This machine is a fully interpolated 5-axis bridge saw. * Automated head rotation from 0° to 360°, coupled with automatic blade tilting from 0° to 90°, makes it perfect for large-scale production runs while keeping costs in check.
* It seamlessly integrates various complex curved surface processing tasks and combines the functions of cutting, drilling, milling, and engraving
into a unified system.
5-axis Waterjet - This machine is also a fully interpolated 5-axis waterjet.
* Automated head rotation from 0° to 360° along with automatic Abrasive Cutting Head tilting from 0° to 60° ensures accurate
inside-corner fabrication for mitered edges.
* Equipped with a KMT-H20 JET50 super-pressure pump featuring Siemens PLC and motor.
1) 5-axis linkage control with the Italian CNC Esa system.
2) User-friendly interface with a 19" color touch screen.
3) The Y-axis is moved by a gantry system, ensuring perfect squaring of the bridge.
4) Absolute precision in movements is guaranteed by state-of-the-art transmission on linear ball guides, driven by servo motors through high-precision helical gears and racks.
5)The CNC Sawjet & bridge saw can perform easy cuts manually and can also import and work with DXF (AutoCAD) files for added versatility.
6) The working platform can tilt up to 85 degrees, facilitating easy slab loading.
7) Slab photography for nesting and defect avoidance.
8) Manual/automatic nesting to optimize slab surface usage.
9) RTCP tool point tracking function ensures easy and precise machining.
10) Optional - Vein matching for perfect alignment of veins and colors at project seams.

TECHNICAL DATA FOR HKNC-450J
Diameter of saw blade	Φ350-Φ450	mm
Dimension of working platform	4150×2250	mm
X axis stroke	3500	mm
Y axis stroke	2000	mm
Z axis stroke	500	mm
Max. cutting thickness	100	mm
Max. lifting stroke	320	mm
Power of saw blade motor	26.4	kw
Power for abrasive waterjet	37	kw
Max. operating water oressure	450	Mpa
Required pressure of inflow	0.4	Mpa
Water consumption	11.4-16.7	l/min
Gross weight	10000	kg
Dimensions(L×W×H)	6000×3820×320	mm

Control System - CNCBrand: Esa
Origin: Italy
A top-of-the-line CNC system with a touch screen for easy settings and automatic processing, making even the most complex machining tasks
simple, perfect, and highly efficient.
Digital Servomotor
Brand: YASKAWA
Origin: Japan
A permanent magnet servomotor with integrated drives, perfectly matched with Esa's CNCs,
provides reliable control power for the X, Y, Z, C, and A axes.
Laser Reticule Apparatus Origin : China
Aid for precise alignment at the start of processing.
Electro-spindles High-quality electro-spindles controlled by an inverter, allowing the adjustment of the number of revolutions from 0 to 6000 rpm,
enabling the use of both blade and diamond tools such as core drills or milling cutters. The tool change is manual.
Internal water passage for efficient cooling.
Linear Guide Brand: Hiwin Origin: Taiwan, China. Renowned for top quality, used on the crossbeam and carling for high cutting precision and long lifespan.
Q: Are you the manufacturer?
A: Yes, we are a professional and leading stone machinery manufacturer with over 30 years of experience in China. We also have many authorized agents worldwide to provide after-sales service.
Q: Can I get a machine customized to my requirements?
A: Absolutely. We welcome OEM and ODM orders.
Q: This is my first time using this kind of machine; is it easy to operate?
A: We provide instructional videos and an English manual with the machine. If you have any questions, we offer free professional online guidance until you are proficient in using the machine.
Q: What is your MOQ and delivery process?
A: Our MOQ is 1 set. We can ship the machine to your country's port or directly to your door. Please provide your port name or address, and we'll offer the most competitive price and freight.
Q: How is your after-sales service?
A: We offer lifelong free online guidance for the machine. In many countries, we have local dealers who handle installation and maintenance.
Q: If my machine breaks down, can you repair it?
A: Yes, many of our machines have remote troubleshooting capabilities, allowing us to solve issues via remote control and video guidance. For common problems, we provide professional guidelines for part replacement. In countries where we have agents, they will also handle repairs.
