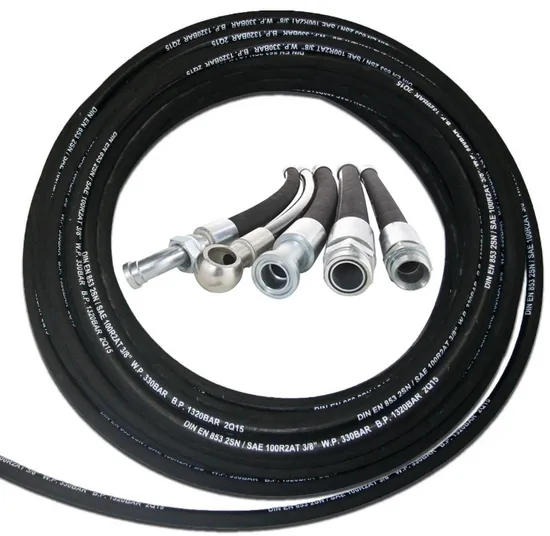

Industrial Flexible High Pressure Steel Wire Hydraulic Rubber Fuel Oil Hose Assembly with Both End Fitting Factory

Product Description

KEY PERFORMANCE: EN/DIN and new SAE rated working pressures
Appearance: Wrap( I.D less than 25.4mm smooth cover)
Branding: Printing and indelible branding with embossed technology
Colour: Black, red, blue, yellow, green, gray
Continuous service temperature range: -40°f / +212°f; -40°c / +100°c
Max operating temperature: 250°f 121°c
Insert: shf-type
Tube: oil resistant synthetic rubber
Reinforcement: one high tensile steel braid
Cover: environment resistant synthetic rubber
Applicable specs: EN 853 1SN - SAE 100 R1AT - ISO 1436-1 1SN/R1AT
APPLICATIONS & FLUIDS
Hydraulics: Low-medium pressure lines, return lines
Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water.

SAE 100 R1 AT HT/ DIN EN 853 1SN HT

DN	Hose I.D		Wire O.D	Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight	Length
	inch	mm	mm	mm	MPa	psi	MPa	psi	mm	kg/m	meters
5	3/16	4.8	9.5	11.8	25.0	3630	100.0	14280	89	0.19	50/100
6	1/4	6.4	11.1	13.4	22.5	3270	90.0	12840	102	0.21	50/100
8	5/16	7.9	12.7	15.0	21.5	3120	85.0	12280	114	0.24	50/100
10	3/8	9.5	15.1	17.4	18.0	2615	72.0	10280	127	0.33	50/100
13	1/2	12.7	18.3	20.6	16.0	2320	64.0	9180	178	0.41	50/100
16	5/8	15.9	21.4	23.7	13.0	1890	52.0	7420	203	0.45	50/100
19	3/4	19.0	25.4	27.7	10.5	1530	42.0	6000	241	0.58	50/100
25	1	25.4	33.3	35.6	8.8	1280	35.0	5020	305	0.88	50
32	1 1/4	31.8	40.5	43.5	6.3	920	25.0	3600	419	1.23	20 to 40
38	1 1/2	38.1	46.8	50.6	5.0	730	20.0	2860	508	1.51	20 to 40
51	2	50.8	60.2	64.0	4.0	580	16.0	2280	635	1.97	20 to 40

SAE 100 R2 AT / DIN EN 853 2SN HT

DN	Hose I.D		Wire O.D	Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight	Length
	inch	mm	mm	mm	MPa	psi	MPa	psi	mm	kg/m	meters
5	3/16	4.8	11.1	13.4	41.4	6000	16	23720	89	0.32	50/100
6	1/4	6.4	12.7	15.0	40.0	5800	160	22840	102	0.36	50/100
8	5/16	7.9	14.3	16.6	36.0	5250	140	20000	114	0.45	50/100
10	3/8	9.5	16.7	19.0	33.1	4800	132	18840	127	0.54	50/100
13	1/2	12.7	19.8	22.2	27.6	4000	110	15720	178	0.68	50/100
16	5/8	15.9	23	25.4	25.0	3630	100	14280	203	0.8	50/100
19	3/4	19.0	27	29.3	21.5	3120	85	12280	241	0.94	50/100
25	1	25.4	34.9	38.0	16.5	2400	65	9420	305	1.35	50
32	1 1/4	31.8	44.5	48.3	12.5	1820	50	7140	419	2.15	20 to 40
38	1 1/2	38.1	50.8	54.6	9.0	1310	36	5140	508	2.65	20 to 40
51	2	50.8	63.5	67.3	8.0	1160	32	4560	635	3.42	20 to 40

Quality VS:
Our Products Range:
1. Hydraulic Hose
Steel wire braided hose, Steel wire spiral hose, Texible braided hose
2. Industrial Hose:
Smooth(Wrapped) Air/Water/Oil/Gas/Lpg hose, Welding hose, Oxygen hose, Acetylene hose,
Lpg hose/Propane hose, Twin hose, Oil/Water suction and discharge hose, Steam hose, Sandblast hose,
Large diameter hose etc.
3. Automotive Hose
Air brake / condition hose, Power steering hose, Fuel oil hose,
4. PVC Hose
5. Hose Fitting / Coupling / Ferrule
6. Hose Machine
Optional accessories for hose fitting adaption:
Application Field:
For engineering machinery, port machinery, aerospace, car manufacture, machine tool manufacturing, wind power manufacturing, shipbuilding industry, engine, textile machinery, petrochemical, agricultural machinery, mining machine, construction machinery, special vehicle, matall urgical machinery, injuction food machinery, printing machine, railway, hydraulic system, water conservancy construction
Workshop Show:
≡ FAQ
Q: Do you produce smooth or cloth wrapped cover?
A: Yes, we can produce both cover, which depends on customer's request.
Q: Can you produce product with my own brand?
A: Yes, OEM or ODM is warmly welcome by our company. Hope we both parties will benefit a lot through the cooperation.
Q:Could we get free samples?
A: Yes. We can provide the free sample for you
Q: Does your product have different color hose?
A: Yes, we currently provide black, grey, red, blue and yellow.
Q:Could you crimp hose?
A: Yes, we can crimp hose assembly for our customers
Q: How long does my order take to be delivered?
A: It usually takes 5 to 30 days, which generally depends on the quantity of your order and our storage.
