Pressure Vacuum Lab Oven Prepreg Industrial ASME Composite Autoclave for Carbon Fiber

Product Description

Product Description

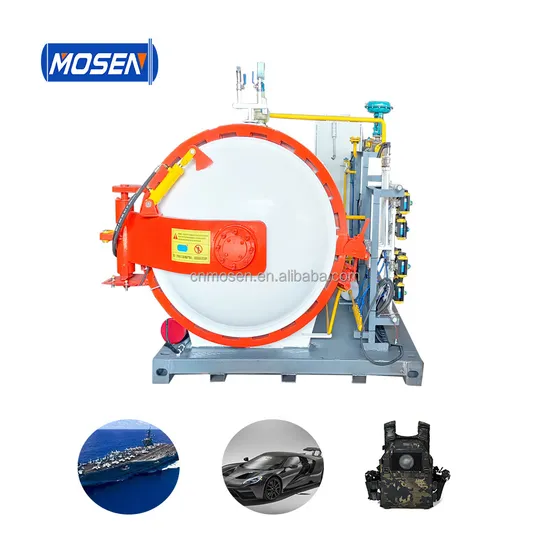

High Pressure Vacuum Lab Oven Prepreg Industrial ASME Composite Autoclave For Carbon Fiber

1.Composite Autoclave molding is the most widely used carbon fiber resin matrix composite molding process,
2. Composite autoclave molding principle is to use the high temperature compressed gas in the autoclave to heat and pressure the prepreg, and cure the product into shape.
3.The advantages of autoclave molding are obvious:
1. In the process of uniform molding.
2.the compressed air in the tank is in a state of high-speed flow.
3.process stability.
4. widely used.
Product Parameters

MODE	WORK DIAMETER	WORK LENGTH	MAX.TEMP	MAX.PRE	RATE.TEMP	RATE,PRE	CONTTROL
DN0610	600MM	1000MM	160ºC	0.6MPA	3ºC/MIN	0.1MPA/MIN	PLC+PID
DN1530	1500MM	3000MM	200ºC	1.2MPA	3ºC/MIN	0.1MPA/MIN	PLC+PID
DN3050	3000MM	5000MM	250ºC	1.8MPA	3ºC/MIN	0.1MPA/MIN	PLC+PID

Production Application
At present, the autoclave molding process occupies a very important proportion in industrial production, especially in the aerospace field, the composite structural parts prepared by the autoclave molding process account for more than 80% of the total, and have been widely used in the fuselage, rudder, elevator, wing skin, tail and other structural parts of the aircraft.
working principle
Composite autoclave molding principle is to use the high temperature compressed gas in the autoclave to heat and pressure the prepreg, and cure the product into shape.
Why Choose Us
1.Shandong Mosen Machinery Co., Ltd is amanufacturer of pressure vessels for food sterilization retort, food jacket cooker, vacuumcooker, rubber vulcanization autoclave,woodimpregnation autoclave, composite autoclave etc.
2. Our company integrates scientific research,production, sales and service. As a leader in food sterilization retort machine and rubber vulcanization autoclave machinery industry,we have ISO/ASME/CE/DOSH Certification.
Packaging & Shipping
1.We will deliver your composite autoclave by LCL/20'FCL/40'FCL depending on your order.
2. Before delivery, our professional technician will do trial run for each product to check until everything is functional, you also can come to our factory and test our machine together with us.
When loading, our workers will fix the rubber autoclave tightly with wire rope so that the rubber autoclave can't move in the container.
FAQ
Q: Are you manufacturer or trading company?
A: We are a professional manufacturer.
Q: What is your business scope?
A: There are three categories, such as food sterilization machine, jacket cooker, rubber vulcanization autoclave.
Q: How about the installation? And what if the machine goes down?
A: We will do that. There are two options.
a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side.
b. On-line service will be provided. If still is under guarantee period, the necessary accessories and parts will be provided free, but the transportation cost of it shall be on your side.
Q: Do you take L/C?
A: Yes, we accept L/C, T/T and irrevocable L/C payable. If you want to know more about our composite autoclave , welcome to our company for detailed information. Here we have professional engineers and technicians to instruct you.
