Mars Zsf-80dl Pre-Milling Contour Edge Banding Machine PVC MDF Automatic Edgebanding Machine for Wood MDF Edge Sealing
Basic Info.
Model NO.
ZSF-80DL
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
380V
Function
Pre Milling, Gluing, Edge Banding, End Trimming, R
Edging Thickness
0.4-3mm
Automatic Grade
Automatic
Panel Feeding Speed
20m/Min
Transport Package
Plywood Case Package
Specification
8600*1100*1800mm
Trademark
Mars
Origin
China
HS Code
8458110090
Production Capacity
300 Set/M
Product Description

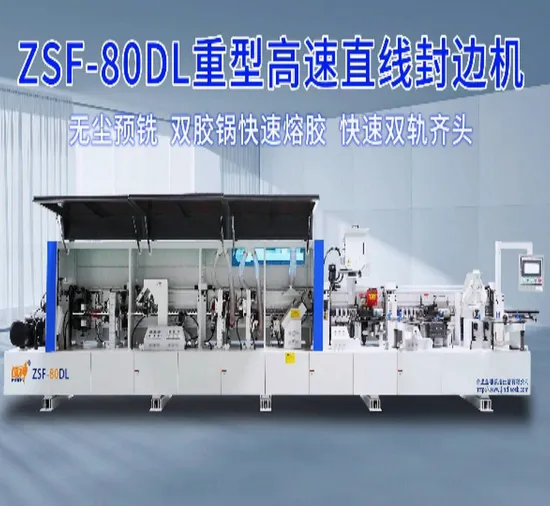

ZSF80DL Edge Banding Machine
| Technical Parameter | |
| Overall dimensions(L*w*H mm) | 5570*910*1540mm |
| Motor power | 11.5kw Total power |
| Feed speed | 17-25m/min |
| Edge thickness | 0.4-3mm |
| Panel thickness | 10-60mm |
| Panel Length | >=150 |
| Panel Width | >=60 |
| Working press | 0.6-0.8Mpa |
| Mini Panel Size | 300(L)*60(W) mm & 150(L)*150(W)mm |
| Total weight | 2450KGS |
| Performance Feature | |
| 1 | This edge bander is ideal for building an automatic production line. Stability and controlled ability are the most important factors for an equipment to be part of production line |
| 2 | Pre-milling equipment with double trim-blades works on the waved effect that is caused by precise saw |
| 3 | The glue mechanism adopts a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid conglutination |
| 4 | End-trimming mechanism through a precise guide track movement, adopt automatic tracking and high-frequency motor fast cutting structure to ensure the cutting surface smoothly |
| 5 | Rough &Fine Trimming unit, with two individual high frequency motors, trim the exceeding edge on the top and bottom side of the panel, ensure the top and bottom side of the edge smooth and even |
| 6 | Scraping unit for a perfect finishing of the applied edge |
| 7 | The buffing device adopt the board processed by cotton polishing wheel, by end-polishing to make a more smooth surface |
| 8 | Grooving is a optional function for edge banding machine. It's used to slot out one groove on panel to install glass, back panel etc |
