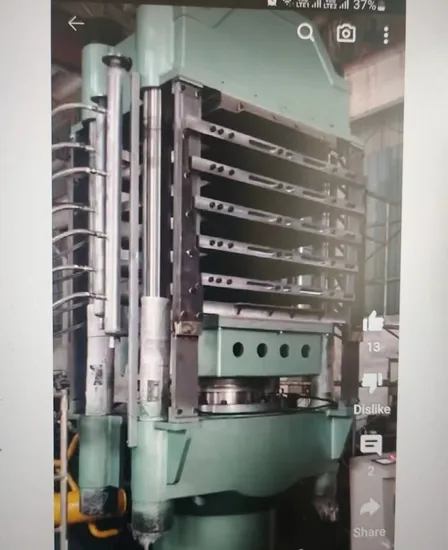

EVA Foaming Vulcanizing Press Machine with Four Column

Product Description

Product Description The foaming press ( köpük vulkanizasyon makinesi) is used for molding and foaming of EVA, PE,TPE,EPDM SBR,CR.The foam sheets are widely used in shoe material manufacturing, foam floor, EVA mat,EVA puzzle,thermal insulation material, luggage liner, sporting buffer material, diving dress material and life vest material, etc.
Product Parameters

No.	Model	Clamping force	Platen size	Daylight Opening	Daylight (Layers)	Distance between columns	Motor power
		Ton	mm	mm		mm	KW
1	GKF-350T	350	800*1000	150	4	1000	7.5
2	GKF-500T	500	900*1200	150	4	1300	11
3	GKF-700T	700	1100*1350	150	6	1400	15
4	GKF-900T	900	1200*1500	150	6	1600	15
5	GKF-1000T	1000	1300*1500	150	6	1600	22
6	GKF-1100T	1100	1350*1700	170	6	1800	22
7	GKF-1350T	1350	1350*1800	180	6	1800	22
8	GKF-1500T	1600	1350*2000	180	6	1800	22
9	GKF-1600T	1600T	1400*2250	200	6	1980	30
10	GKF-1800T	1800T	1400*2400	180	6	2000	30
11	GKF-2200T	2000T	1400*2600	200	6	2000	37

Notes: the table only list out the normal standard models, more special models can be customized to order.

Features EVA Rubber&Plastic Foaming Press machine: 1) It is suitable for different kinds of polymer material foaming
2)The foaming machine is designed with strong structure to meet the foam production
3)It has a excellent pressure retaining system to ensure the pressure stable during
the molding&foaming process.
Company Profile Nanjing Geekung (Jichang) Hydraulic Machinery Co., Ltd specialize in R&D,manufacturing,sales and technical service of hydraulic rubber&silicone molding machine. With "Geekung Hydraulic Machinery" as a famous brand for rubber&silicone press vulcanizing machine in China (Geekung in Chinese pronunciation is Jichang),our main products are Hydraulic Rubber Vulcanization Molding Press machines,including Vacuum Compression Molding Machine,Rubber Injection Molding Machine,Rubber Transfer type Molding Machine,kinds of Rubber Vulcanizing Press machines. Besides the rubber compression molding machine,rubber injection molding machine and rubber transfer molding, we can also customize high quality molds and supply some other upstream hydraulic rubber machines,like Hydraulic Rubber Dispersion Kneader, Rubber Mixing Mill,Hydraulic Rubber Preforming Machine and some of the rubber parts cutting&trimming machines,etc, providing a turnkey solution for the final molded rubber or silicone products for customers.
Since engaging in the field of hydraulic rubber machines manufacturing industry in 2003,by now we have been in the field nearly 20 years,our company has a dozen of engineers who are very experienced in R&D,and about 100 well-trained-qualified-skilled workers.Besides,there are a number of precise,digital control, advanced machine tools in our factory,all ensure every part and details of our machines with good performance and qualified running test before delivery to our customers on time.
Due to the sincere dedication and positive&efficient cooperative spirit of our great staff team,our company have been making steady progress in the past 20 years.
Along the way, there were lots of sweats and hardships,while there were also much happiness and harvest , looking into the future,we insist on the original dream, and in the years to come, we will continue to make persistent efforts, carry forward the united and efficient team work spirit, and create greater glories.
Move ahead along with the spirit of "Responsibility& Sincerity for Customers" and "Cooperative&Enterprising Team" to "Mold a Better Future Together ", We hope to start and sustain the cooperation with you at the basis of mutually beneficial win-win situation and serve you with our credible and durable products.
