Diesel Engineering Ultrasonic Oil Level Gauge transmitter level sensor manufacturers

Product Description

Product Description

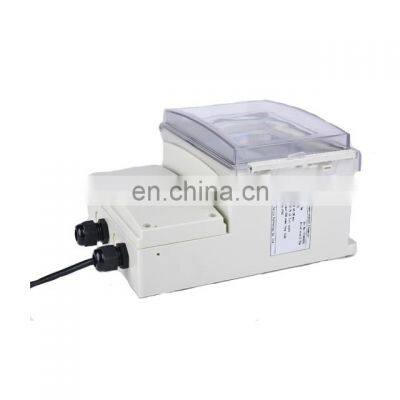

Product DescriptionFeaturesUTG21-PR ultrasonic level transmitter * Four change rates are available, so as to read average liquid level accurately even if the liquid level fluctuates drastically.* Six display modes are available, to display echo waveform and historical curve.* Internally integrated temperature sensor provides real-time temperature compensation to sound speed.* On-site operation is available with liquid crystal display and keyboard.* 4～20mA current diagnostic function.* Chinese and English displays are available; meter and inch are available.* Carry out automatic detection of on-site electrical disturbance and interference suppression.* All input and output lines have overvoltage and overcurrent protection.* Provide alarm current output function.* Non-contact measurement owns a long service life.SpecificationSystemIntegrated two-wire systemBasic parametersMeasurement range0～5m, 0～10m, 0～15m, 0～20mBlock dist.0.35～0.6mPrecision±0.3%FS* (standard conditions *)Resolution±2mmInputSupply voltageDC12～36V / AC 85~264VMaximum current50mA~100mARipple wave requirementLess than ±200mVOutputSimulated currentLoad 500ΩDigital interfaceRs485 / ModBus-RTUInterfaceProcess interfaceG1 1/2” or G2”Electrical interfacePG11MaterialTransmitterABSProbeOrdinary waterproof ABS / anti-corrosion ETFEFlangeOrdinary waterproof ABS/ anti-corrosion ETFEEnvironmental conditionEnvironment temperature-20℃～+60℃. Liquid crystal display is limited if it is lower than -20℃. If outdoor instrument is exposed to sunlight directly, addultraviolet-proof protective cover.Waterproof gradeIP65Process conditionProcess temperature-40℃～+90℃, high-temperature probe shall be used in case of over 70℃.Process pressure0.8～3bar or 0.08～0.3Mbar abs / below 3000 meters altitude.Probe Cable LengthRVVP 4*0.3 / less than 200mPacking & DeliveryTrade terms1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.ApplicationRelated ProductUTG21-H ultrasonic level transmitter UTG21-H ultrasonic level gauge built-in temperature compensation, power adaptive, using a number of self developed patented technology, with a new signal processing technology, which greatly improves the measurement accuracy of the instrument, the interference echo was significantly suppressed Features.UTG21-PY ultrasonic level transmitterUTG21-PY includes several proprietary technologies, is safe and clean, with high precision and long service life, stable and reliable, and convenient to install and maintain, and is applicable to various fields of acid, alkali, salt, anticorrosion, and high temperature. The meter’s all input and output lines must be with such protection functions as lightning protection and short circuit prevention.UTG21-BE ultrasonic level transmitterUTG21-BE for non-contact, not in direct contact with liquid, low failure rate. All input and output lines of the instrument must have lightning protection, anti-short circuit protection. Contact UsNO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:office at WhatsApp:+86 15541112235TEL:86-411-39685079web:/
