Coil Winding Used Hard Alloy Nozzle

Product Description

Product Description

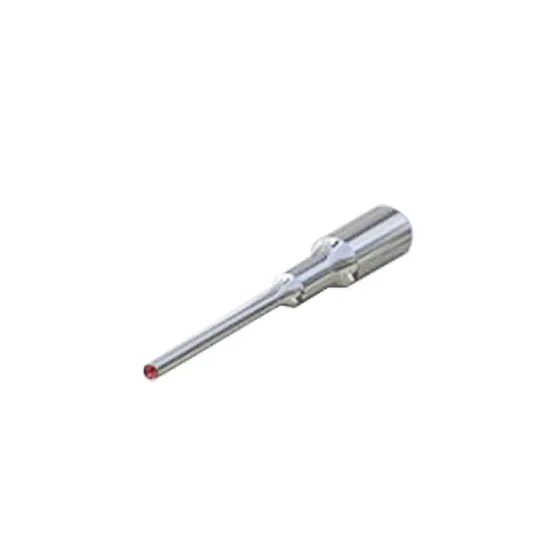

The Hard alloy nozzle is precision machined from super hard alloy material, with a hardness of over 90%. The ends of the Hard alloy nozzle and the inner hole plug are mirror processed to ensure that the enameled wire is not scratched.
Compared with the ruby wire nozzle, because of the integral material processing, there is no step in the wire nozzle hole, which improves the phenomenon of easy bending and blocking. Using superhard alloy material (its hardness up to HRA90, bending strength up to 2300N/MM or more) precision machining. The inner hole is processed by mirror, and the inlet and outlet at both ends are guaranteed to have a balanced curvature radius, and the surface roughness is RA0.025. Because of its use of integral material refined hole without steps.
Detailed Photos
Product advantages
Advantages and disadvantages of alloy nozzle quality:
1, the finish of the wire mouth: Its position and Angle of the arc junction, hole, using visual method is unable to see, only with the help of a high rate of a magnifying glass to observe side, if the inner hole and Angle of the arc junction has obvious transition mark, so it brings the result is scratch enameled wire, if it is a good quality of nozzle, its inner hole and Angle of the arc junction is a natural, No marks of contact.
2. Finish of inner hole: It also is critical, for the product quality in the process of product winding, enameled wire online in the mouth of the inner hole is in a state of beating, if the inner hole grinding processes is not good, so scratch line would be hard to avoid the worth to remind is, now in the market has a lot of alloy nozzle inner hole is not through precision grinding processing or simple rough processing and then require the user to polish my eyes.
3, the inner hole size precision, precision processing and manufacturing of nozzle, its inner hole accuracy can be controlled within 0.01 mm, if the inner hole size large and small, that is a disaster for the user, are you busy enough, break phenomenon will happen often, even the winding coil insulation fault or interturn short circuit because it is not hard to explain.
4, the accuracy of the installation size: according to the consistency of the installation size is very necessary, if it is large, it is difficult to install into the equipment fixture, if it is small, it is easy to fall out of the fixture and affect the adjustment accuracy.
We will increase the publicity of all kinds of tension control systems, so that all customers know our products, know our products. At the same time we also in the international market to increase sales and service efforts, improve the brand service awareness. In terms of products, while developing new products, we continue to carry out internal product innovation and transformation to further improve the comprehensive quality of products, reduce costs and prices, so as to better benefit customers and serve them better. If there are certain gains in these three aspects, the strength and quality of our company will be greatly improved. We will be full of vigor and vitality, strive to make progress, in the market economy, we will step up a level every year, down-to-earth development.

Product Parameters

Number	L	L1	D	D1	d1	d2
1	20	2	0.8	0.6	0.2	0.2
2	30	7	1.5	1	0.5	0.5
3	30	7	2	1	0.5	0.5
4	35	10	2	1.2	0.6	0.6
5	35	7	2	1	0.4	0.4
6	30	8	2	0.8	0.3	0.3
7	26	7	2	1	0.3	0.3
8	35	10	2	1	0.5	0.5
9	35	11	2.5	2	0.8	0.8
10	30	6	2	1	0.3	0.3
11	35	15	2	1.2	0.6	0.6
12	30	10	3	1	0.5	0.5
13	30	8	3	1	0.6	0.6
14	30	7	3	0.8	0.3	0.3
15	30	9	3	1.3	0.6	0.6
16	14	9	3	1.5	0.6	0.6
17	14	9	3	1.5	0.8	0.8
18	14	9	3	1	0.5	0.5
19	30		3		1	1
20	30	8	3	0.8	0.4	0.4
21	26	8	3	1.2	0.6	0.6
22	30	14	3	2	1	1
23	30	14	3	2.5	1.2	1.2
24	30	3	3	0.3	0.15	0.15
25	30	4	3	0.4	0.2	0.2
26	30	4	3	0.5	0.3	0.3
27	25		3		0.8	0.8
28	35	11	3	1.2	0.4	0.4
29	35	11	3	0.8	0.35	0.35
30	25	8	3	1.6	1	1
31	40	10	3	2.2	1	1
32	35		3		1.5	1.5
33	36	16	3	2	1	1
34	30	12	3	1.2	0.6	0.6
35	40	10	3	1.6	0.6	0.6
36	40	10T	3	10T	0.6	0.6
37	40	15T	3	15T	0.8	0.8
38	50	30T	3	30T	1	1
39	30	15	4	2	0.8	0.8
40	43	15	4	2.5	1.2	1.2
41	43	15	4	2	0.8	0.8
42	32		4.5	-	1.2	1.2
43	43	12	5	2.5	1.5	1.5
44	43	19	3.9	2	0.8	0.8
45	20		5		2	2

Application
Coil winding processing
CNC Automatic Coil Winding Machine
Processing limit:d1=d2≥0.15mm
D1≥0.4mm
