Automatic Factory Price Cocoa Butter Machine

Product Description

Automatic Factory Price Cocoa Butter Machine Product Parameters

Model	GLS-80	GLS-130	GLS-180	GLS-240
Fineness (mesh)	50-100	100-200	100-200	100-200
Capacity(t/h)	0.1-0.5	0.5-2	0.8-6	4-15
Power	4kw,380v,50hz	11kw,380v,50hz	20kw,380v,50hz	37kw,380v,50hz
Dia of rotor	80mm	130mm	180mm	240mm
Dimension (mm)	410*420*940	1000*450*1110	1000*500*1110	1330*510*1290
weight	210kg	400kg	450kg	1300kg

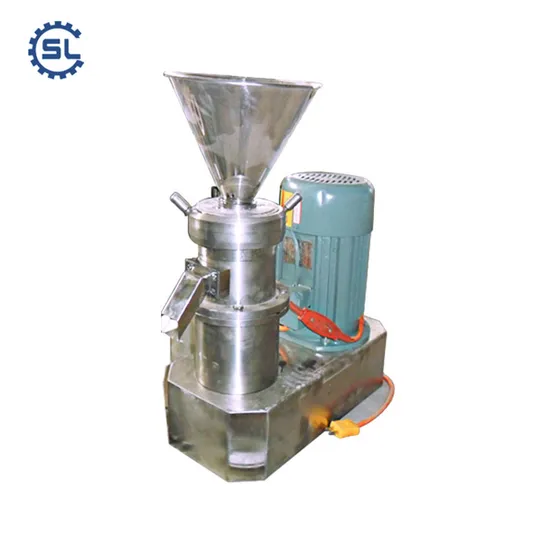

Product Description Peanut butter making machine is mainly used for producing peanut butter, almond butter, salty butter, peppery butter, sesame paste and so on. It can also be used to grind peanut milk, protein milk, soy milk, dairy products, fruit juice, etc. The peanut butter making machine has the features of high yield and working efficiency and small size, which makes the peanut butter making machine extremely popular both for home and commercial use. After processing with the peanut butter machine, particle size of raw material ranges from 2 to 50 microns with more than 90% homogeneity. Thus, the peanut butter making machine is the ideal equipment for processing ultrafine particles.
Detailed Photos
Application
The peanut butter application
1. The peanut butter making machine can be used to grind peanut almonds, sesame, tomato, cashew nut, bean, pea, chili, garlic and ginger, etc.
2. The whole machine body of peanut butter making machine is made of stainless steel with compact structure, stable working, low noise, rust-proof, easy to clean and maintain.
3. The peanut butter making machine also has the advantages of wide adaption, easy variation in speed and different types of motor may be replaced to suffice the demands for special materials to be processed.
4. Material after processing has particle size of 2 ~ 50 microns, homogeneous degree of more than 90%. The peanut butter machine is the ideal equipment of fine powder processing.
5. According to the materials to be processed, the rotor and stator made of different materials could be used. The whole peanut butter machine could be assembled or disassembled easily.
6. The nominal revolving speed and its variable range could be ordered by customers according to different uses of peanut butter machine.
7. Customer can choose common motor or explosion-proof motor.
8. The peanut butter making machine is suitable for restaurant, supermarket, home, small processing plant and big factory for commercial use.
Our Advantages The peanut butter making machine has the features of compact structure, smooth operation, low noise, corrosion-resistant, easy to clean and maintenance, high degree of automation, great reliability, sealing production and non pollution. The peanut butter making machine functions by the different geometry of the stator and the rotor rotates at high speed under the relative motion. Materials are broken by cutting, grinding and high-frequency vibration of peanut butter making machine. There are three grinding zones in the broken room, the first one is rough grinding, the second one is fine grinding and the third one is ultrafine grinding. Through adjusting the gap between the rotors, it can effectively achieve the required standard.
