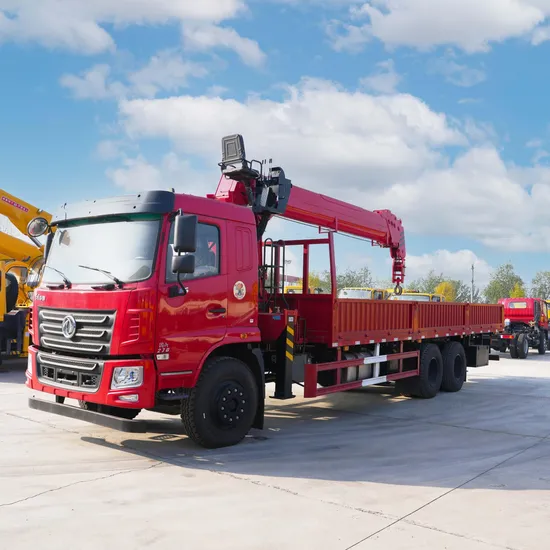

Jqcm China 12ton Jibs Crane Mounted Truck Lifting Crane
Basic Info.
Model NO.
12 TON
Certification
CE, ISO9001, Saber/CCC
Condition
New
Maximum Lifting Height
22m
Maximum Lifting Weight
12 Ton
Crane Jib
Five-Arm
Type
Straight Arm
Use Life
12-18 Years
Factory Tour
Factory Direct Sales/Visit Anytime
New Product
Factory Independent Research and Development Produ
Transport Package
Sea and Land Transport
Specification
12000*2500*3950MM
Trademark
JQCM
Origin
Chian
Product Description
Product Description| The National VI standard crane is flexible in the city and is suitable for rural and urban construction, water conservancy project construction, etc. In terms of cargo loading and unloading, it can lift equipment, steel and other heavy items, improve loading and unloading efficiency, and reduce labor costs and safety risks. In terms of construction, it can be used to lift building materials, equipment and machinery, and complete tasks such as high-altitude operations. | |||||
| Note: Before use, it is necessary to ensure that the outrigger cylinder is fully opened and the outrigger is locked. The outrigger cylinder is on the ground and the vehicle cannot be suspended. Before connecting the power take-off, check whether the control handle is in the middle position. If the handle is not in the middle position, restore it to the middle position. Check whether the shut-off valve on the hydraulic oil tank is open, and check the oil level in the tank. The liquid level is between the highest and lowest marks. Ensure that the vehicle has enough fuel to avoid power interruption during work, and check whether the battery pack is normal. Before use, it is necessary to check whether the safety device can work properly to ensure the life safety of the operator. | |||||
| Brand | JQCM | Tire model | 1100R20-18PR | Boom extension mode | Double cylinder boom |
| Chassis model | Dongfeng (optional) | Engine model | Yuchai (optional) | Rotation speed | 2.5 |
| Vehicle dimensions | 12000*2500*3950mm | Engine power | 257kw (350 horsepower) | Boom extension and retraction | Second boom single boom |
| Cargo compartment interior dimensions | Customizable | Maximum lifting height | 20.5m | Maximum elevation angle | 0-80 degrees |
| Wheelbase | 5900+1350mm | Maximum lifting torque | 30T*M | Boom | 5 meters 5 sections (U-shaped boom) |
| Gross mass | 25000KG | Basic arm length | 5.6-17.5M | Hydraulic outriggers | Automatic (double-chamber rear outriggers) |
| Curb weight | 16230KG | Maximum lifting weight | 12000KG | Rotation angle | 360 degree full rotation |
| Rated load | 8575KG | Maximum speed | 90km/h | Refrigeration system | Air conditioning |
| Gearbox model | Fast 8-speed high and low speed | Emission standard | National VI | Chassis | Optional |
| Frame | 300mm three-layer | Overall machine width span | 2.5M*5.8M | Accessories | Can be installed |
| Axle load | Front axle 7T rear axle 8T | Boom extension | Rope for return rod | ||
